22FHZ-RSM1-TB

Description
Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
CategoryThe connector    The connector
File Size102KB,2 Pages
ManufacturerJST
Download Datasheet Parametric View All

22FHZ-RSM1-TB Overview

Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

22FHZ-RSM1-TB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
Other featuresLOW PROFILE
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTIN OVER COPPER
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts22
UL Flammability Code94V-0
Base Number Matches1

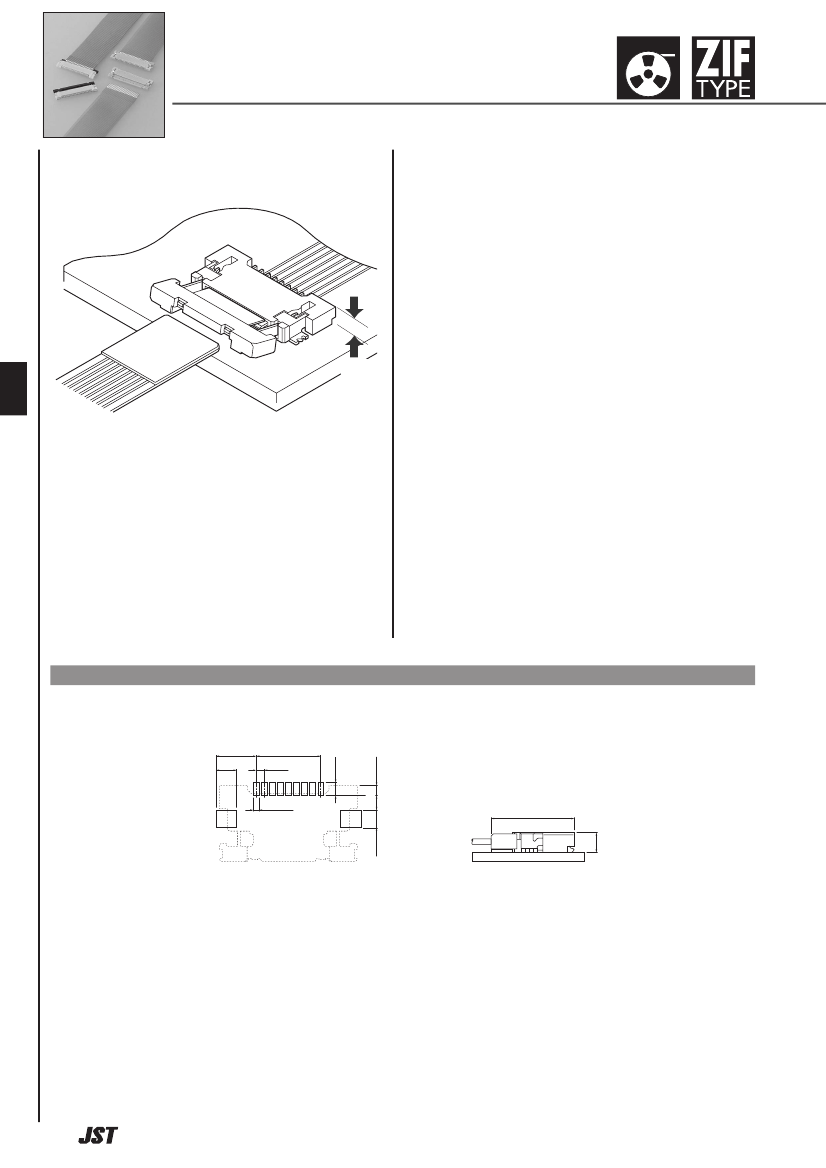

0.5mmピッチ
FHZ
CONNECTOR
0.5mm pitch/Connectors for FPC
Emboss Tape
Specifications –––––––––––––––––––
• Current rating: 0.5A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/40m
Ω
max.
After environmental testing/20m
Ω
max.
(variation from initial value)
• Insulation resistance:
800M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/0.5mm
Conductor width/0.35mm
Mating part thickness/0.10±0.01mm
0.12±0.03mm
0.20±0.03mm
Note
:
FPC to be actually used should be checked for applicability.
Only
0.9mm
height
Suitable for thin FPCs of 0.1mm, 0.12mm or
0.2mm thick.
• Low-profile
• Circuit pattern can be designed under the
connector
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
1
Certified LR20812
0
Recognized E60389

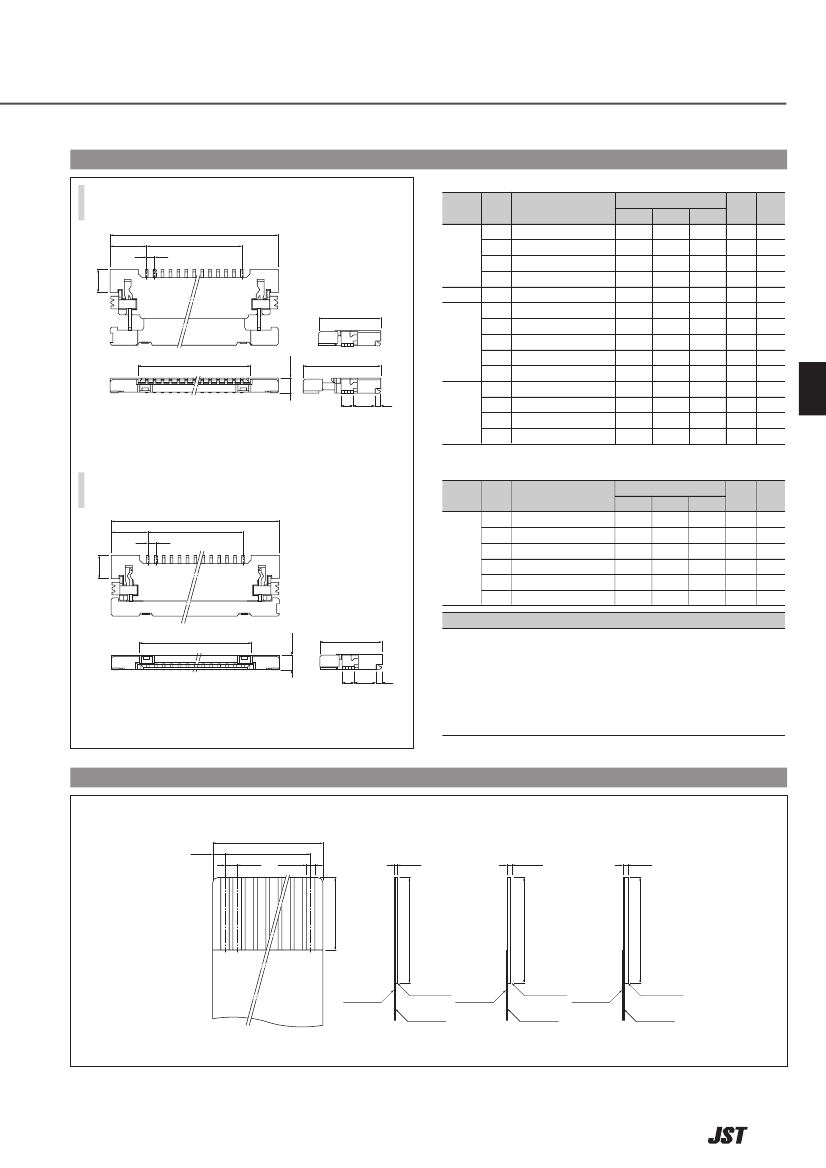

PC board layout (viewed from component side) and Assembly layout
2.5
±0.05
1.28
±0.05
B
±0.05
0.8
±0.1
0.5
±0.03
1.0
±0.05
0.6
±0.05
0.35
±0.05
3.95
1.1
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guide line. Contact JST for details.
206
0.9
