2431-87-16

Description
RF TNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Plug
CategoryThe connector    The connector

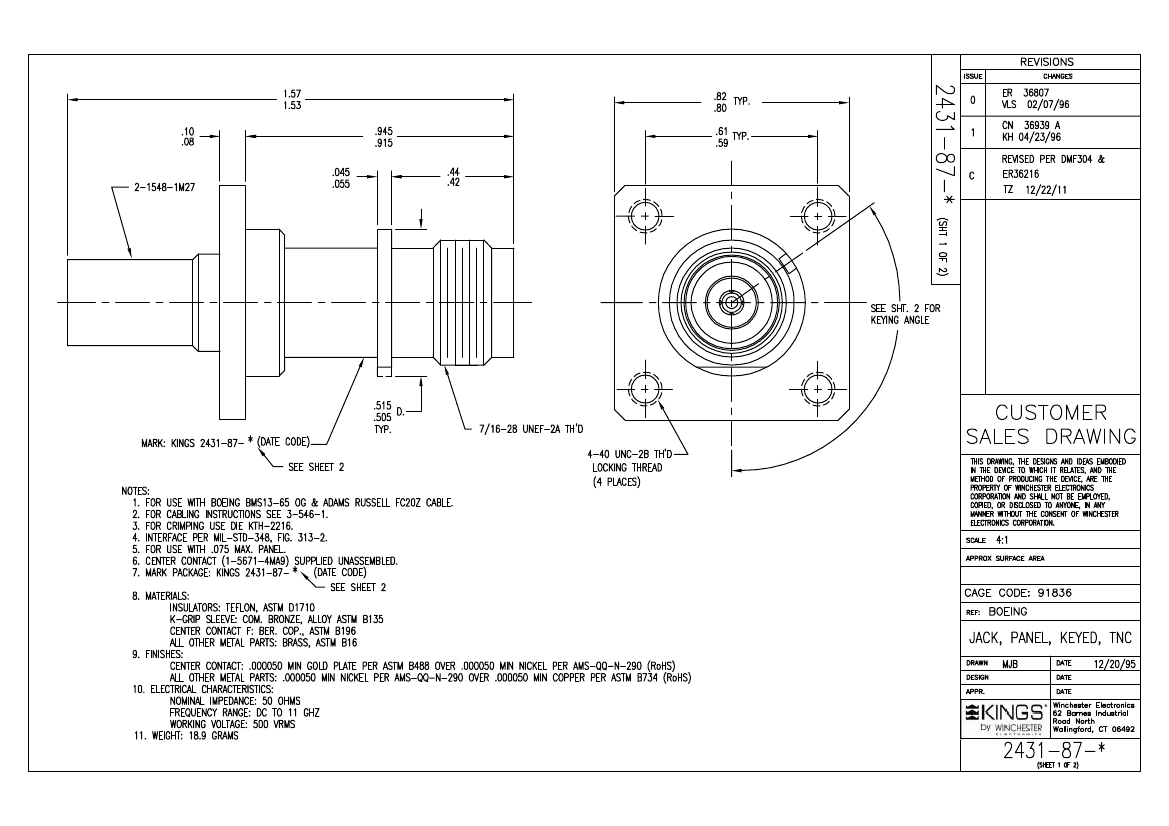

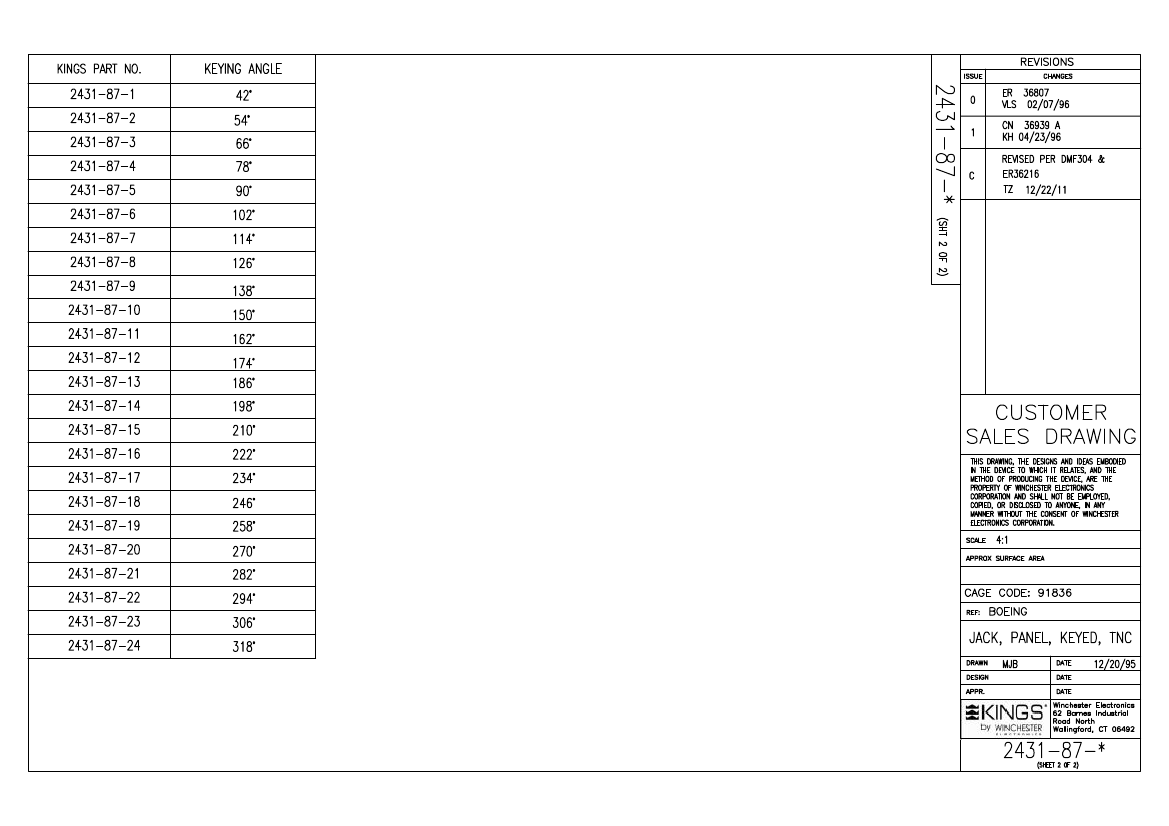

File Size97KB,2 Pages
ManufacturerWinchester Electronics
Download Datasheet Parametric View All

2431-87-16 Overview

RF TNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Plug

2431-87-16 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF TNC CONNECTOR
Contact to complete cooperationGOLD (50) OVER NICKEL (50)
Contact completed and terminatedGOLD (50) OVER NICKEL (50)
Contact point genderFEMALE
Contact styleCOAX
Coupling typeTHREADED
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
Insertion loss0.18 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number2431-87
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency11 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingYES
reliabilityCOMMERCIAL
Shell materialBRASS
Termination typeCRIMP
Total number of contacts1
voltage standing wave ratio1.3
Base Number Matches1
