2241-13-S-01-S datasheet, PDF - EEWORLD Datasheet

2241-13-S-01-S: DescriptionCard Edge Connector, 13 Contact(s), 1 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking Mech; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2241-13-S-01-S Overview

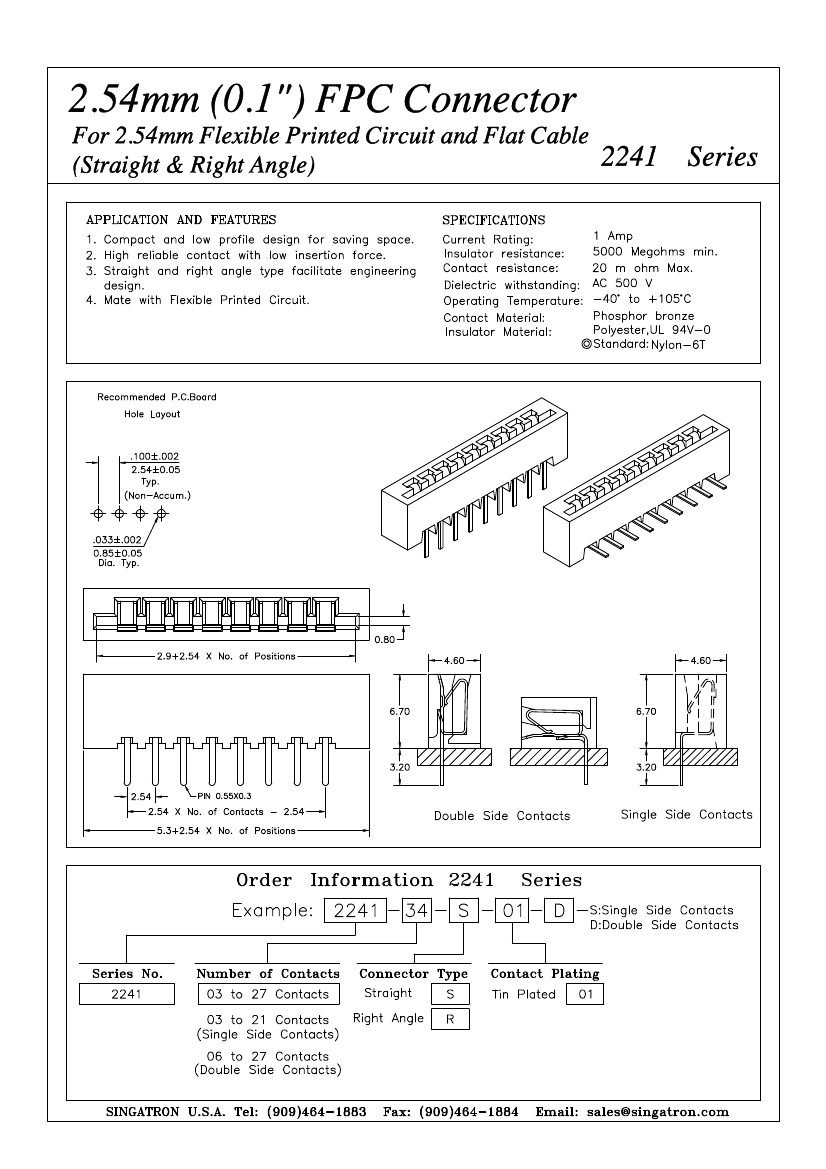

Card Edge Connector, 13 Contact(s), 1 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking Mech

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SINGLE SIDE CONTACTS
body width	0.181 inch
subject depth	0.264 inch
body length	1.509 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
maximum insertion force	LIF N
Insulation resistance	5000000000 Ω
insulator material	NYLON
Plug contact pitch	0.1 inch
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	13
Evacuation force-minimum value	LIF N
Base Number Matches	1
