234931: DescriptionD Subminiature Connector, 37 Contact(s), Female, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

234931 Overview

D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, #4-40, Plug,

234931 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	2.736 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.106 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

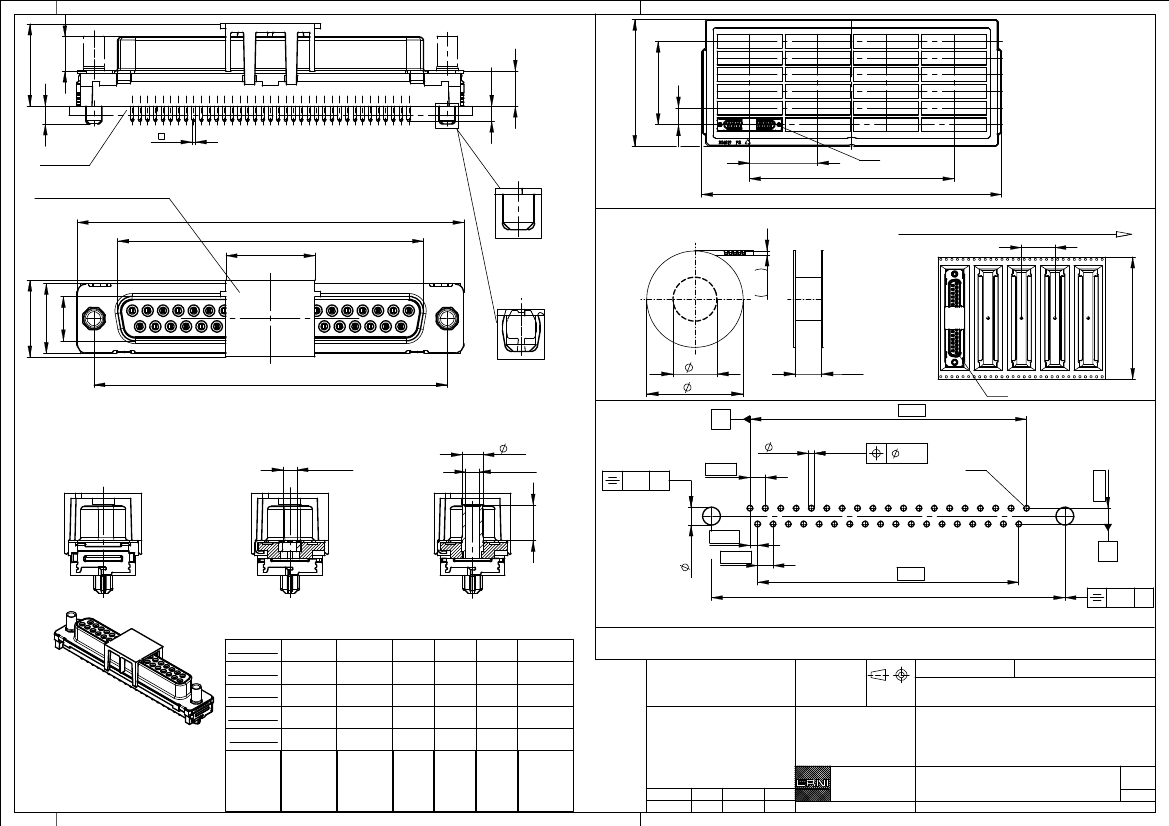

6,3

-0,25

Verpackt in Tray

Verpackungseinheit 24 St.

5 x 18 = 90

max. 138

14,8

tray packaging

packaging unit 24 pcs

2,7

3,2

6,3

0,6

Leiterplatte

Variante 1

version 1

18

pcb

Bestückung kraftlos

73,5

Pin 1

3 x 73,5 = 220,5

powerless assembly

+0,2

hood only on version 1

Ansaughaube nur bei Version 1

69,5

-0,4

54,95

-0,2

16

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Abspulrichtung -

Reel off

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

24

Variante 2

version 2

assembly with force

12,6

±0,3

8

-0,2

13,8

21,2

Bestückung mit Kraft

63,5

±0,1

150

330

t li

ich

it n bl e

Ze il a

ur ava

z t

no

88,5

1

-0,06

+0,09

ar

erb

ef

Direction

Pin 1

ohne /

without

Mutter /

nut

max. Einschraubtiefe 3,7 mm

Bolzen /

bolt

thread depth max. 3,7 mm

max. Einschraubtiefe 5,5 mm

thread depth max. 5,5 mm

3,7

Layoutvorschlag:

A

18 x 2,76 = 49,68

(37x)

0,05

Pin 1

2,84

recommended layout:

0,05

B

2,76

Gewinde

/ thread

M3

/ #4-40

Gewinde

/ thread

M3

/ #4-40

6,4

3,2

±0,1

1,38

2,76

17 x 2,76 = 46,92

63,5

±0,05

0,05

A

B

Beschriftung nach Bedruckungsvorschrift 174538

Part marking according to specification 174538

M 1:1

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

234922 234927 234932

234926 234931 224787

234925 234930 234934

234924 234929 234176

234923 234928 234933

Ident-Nr.

part-no.

tape &reel

Variante 1

Ident.-Nr.

Variante 1

X

#4-40

M3

#4-40

M3

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Anschlussbereich verzinnt

terminal area tin plating

Anforderungsstufe: 2

class: 2

part-no.

tray

Ident.-Nr.

Variante 2

part-no.

tray

ohne

without

Mutter

thread

Bolzen Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

D

Index

26.01.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S 37-THR-2,7-6,3-BA8

TMC-S 37-THR-2,7-6,3-type 8

bolt

remark

www.ERNI.com

Class

144981

TMCS

88

I

version 1

version 2
