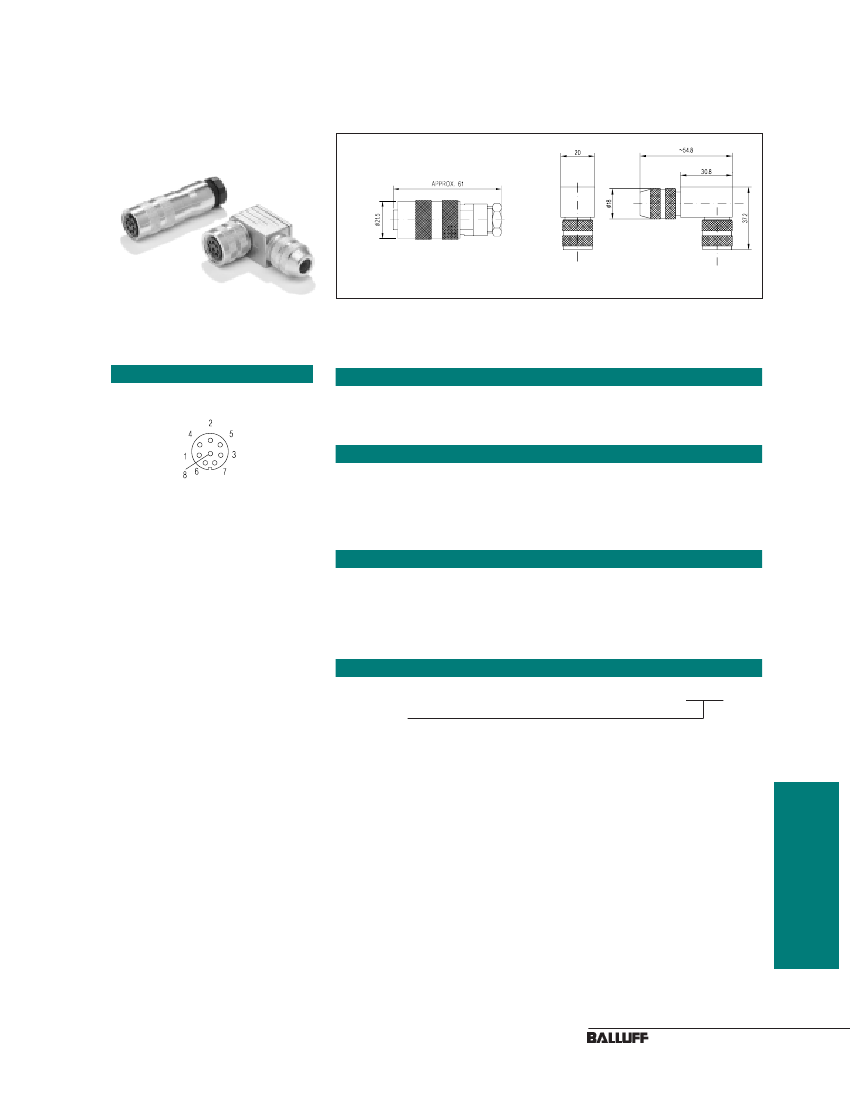

BKS-S32M & S33M Connectors
Dimensions (in mm)
BKS-S32
BKS-S33
For use on BALLUFF BTL Transducer with S32M Connector
Wiring Connections
View: looking at face of connector
Description
S32M = Straight female connector
S33M = Right Angle female
Connector
Mechanical Data
Connector Shell Material
Housing Material
Protection
Wire Size
PBTP - gv
CuZn, nickel (S32M)
ZnAl Lu1, nickel (S33M)
IP 67, NEMA 4, 4X, 6, 12, 13
AWG 22 (max)
Electrical Data
Voltage rating
Amperage rating
Temperature rating
Cable Opening
60 V AC
5A @ 60 V AC
-40 °C...+85°C (-40°F...+185°F)
6-8mm, PG 9 cord seal
Ordering Codes
BKS - S __ __ M - 00*
Connector Style
32M = Straight Connector
33M = Right Angle Connector
*
For connector prewired with conductor cable, change “00” to cable length in meters.
Example: BKS-S32M-05 (5 meter cable)
Connectors
www.balluff.com
1-800-543-8390
E33

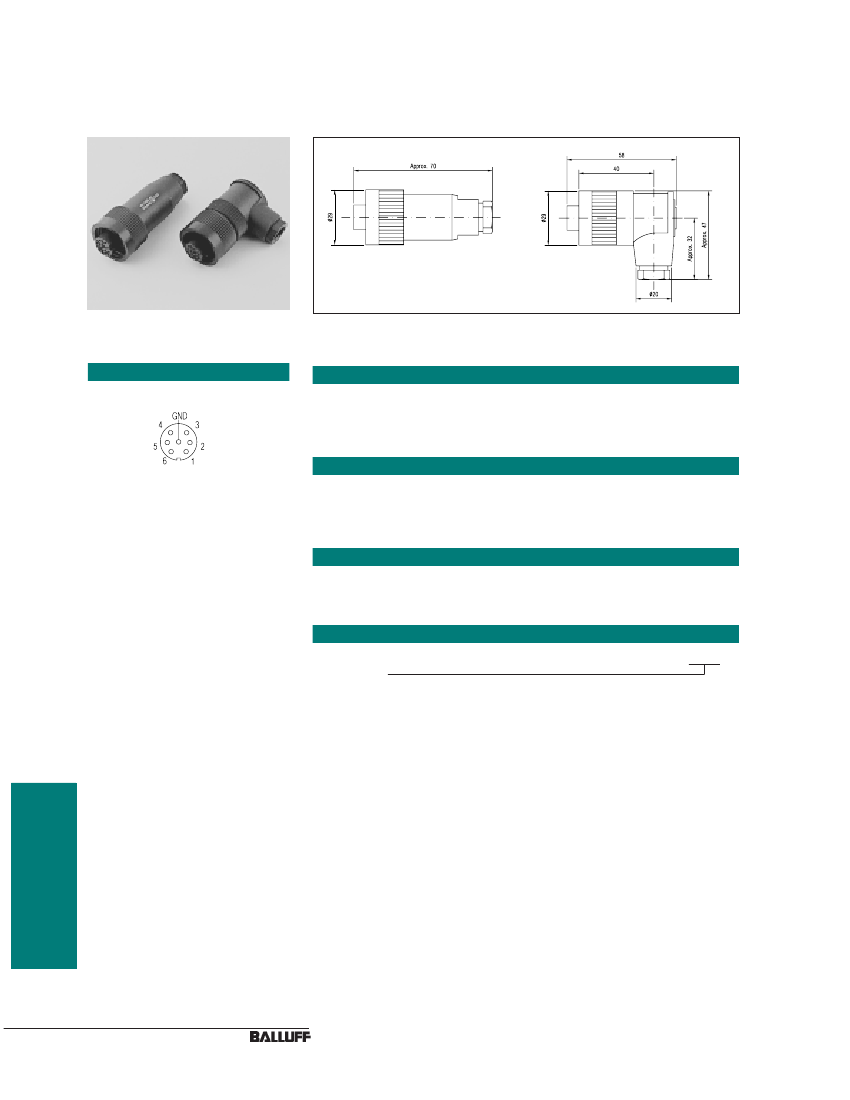

BKS-S50 & S51 Connectors
Dimensions (in mm)
Use with BALLUFF BTL Transducer with S50 Connector
Wiring Connections
View: Wiring side of Connector
Description
S50 = Straight Connector;
black color; No LED's
S51 = Right Angle Connector;
black color; No LED's
Mechanical Data
Connector Shell Material
Cable Entry Sealing Diameter
Protection
Contact Surface
Plastic (PBTP)
6.5 to 8.0mm compression fitting with strain relief.
IP67 NEMA 4, 4X, 6, 12, 13
Ag on CuSnZn
Electrical Data
Voltage Rating
Temperature Range
Maximun Wire Size
250 V AC at 10A
-40°C to +85°C (-40°F to +185°F)
18 AWG
Ordering Code
BKS - S
Connector Style
- 50 = Straight Connector
- 51 = Right Angle Connector
*For prewired connector, change "00" to cable length in meters.
Example: BKS-S51-05 (Right Angle Connector with 5 meters of cable)
- 0 0*
Connectors
E34
1-800-543-8390
www.balluff.com

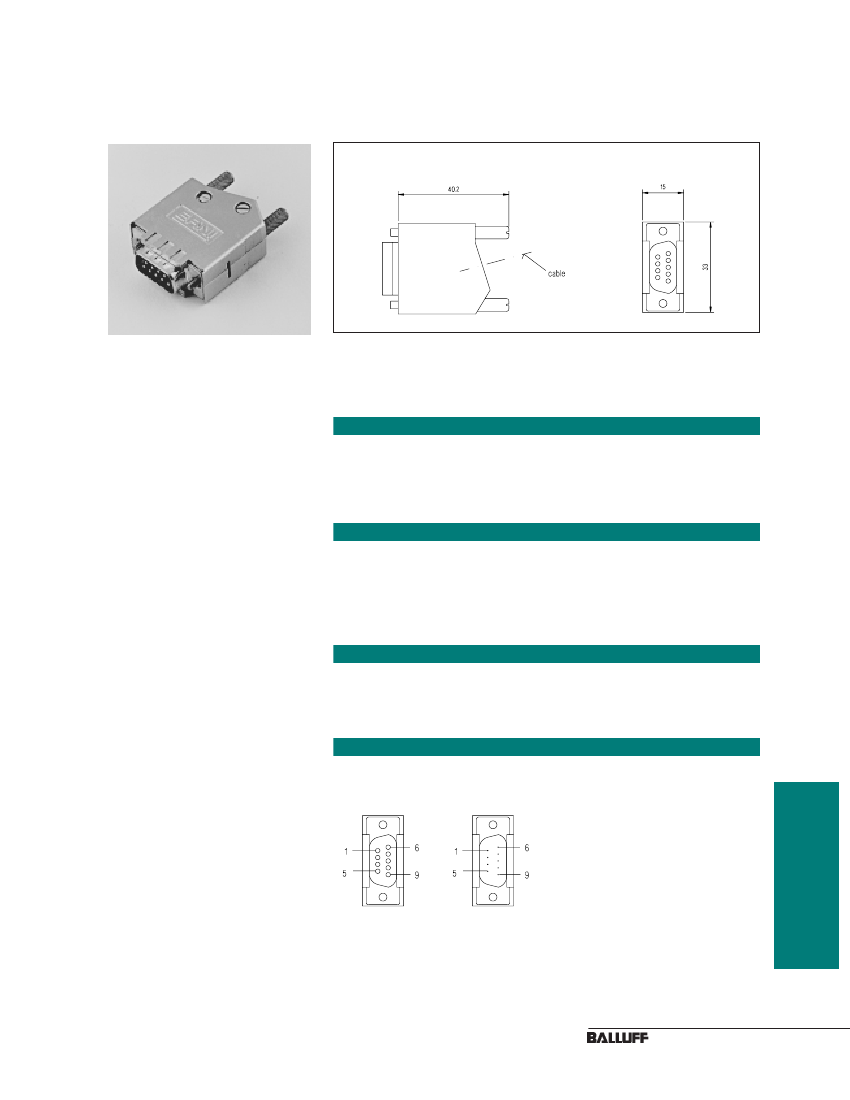

BKS-S38 & S43 Connectors
Dimensions (in mm)
For use on BALLUFF BTA-P (Digital Card used with BTL-P Transducer)
and BIS Electronic Identification Systems replacement parts.
Description
BKS-S38 = female (socket)
BKS-S43 = male (pins)
Both D subminiature with junction shell and
strain relief. Complete with 9 pin or socket
connector.
Mechanical Data
Connector Shell Material
Metal shell with screw fasteners
Ordering Codes
for 9 pin - female:
BKS - S38 - 00
for 9 pin male:
BKS - S43 - 00
Wiring Connections
View: looking at face of connectors
Female
Male
Connectors
www.balluff.com
1-800-543-8390
E35

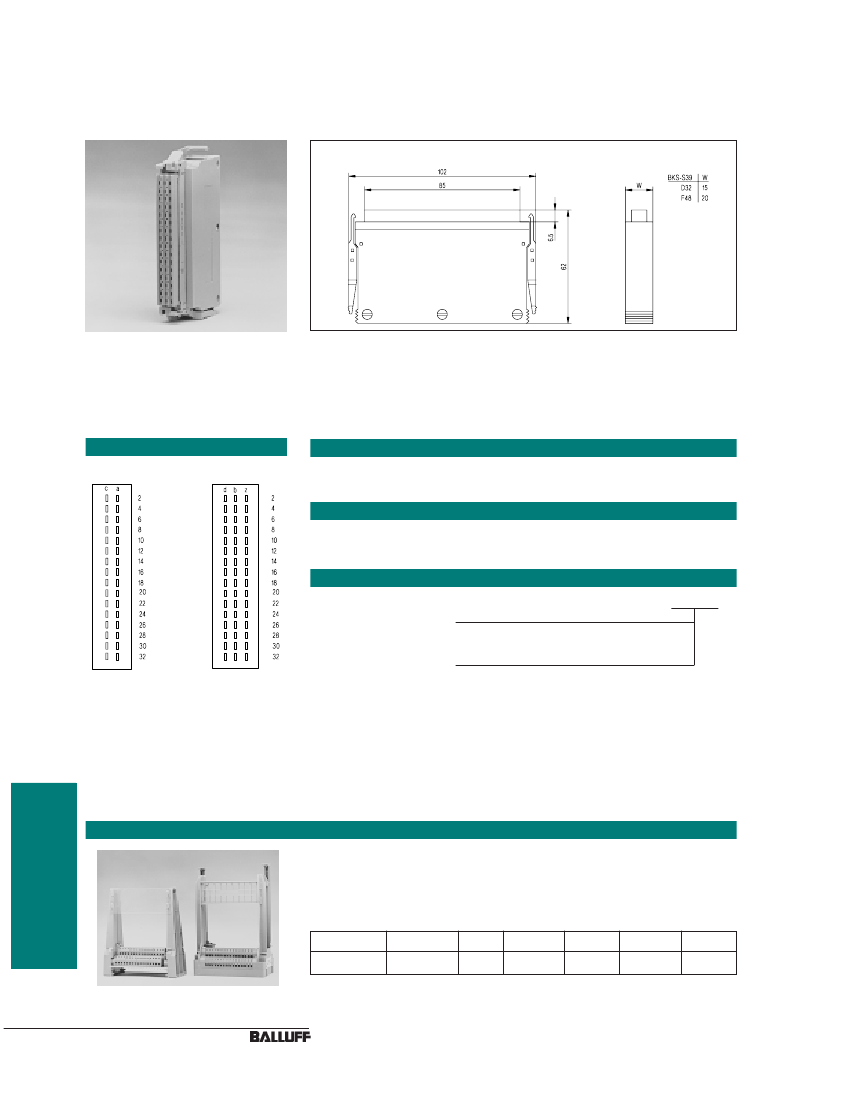

BKS-S39 Connectors/Cardholders
Dimensions (in mm)
BKS-S39-D32 for use with BALLUFF BTA-P (Digital Card used with BTL-P Transducer)
BKS-S39-F48 for use with BALLUFF BMC/BPC (Programmable Switches) and BTA-A (Analog Card used
with BTL-P Transducer) and BIS-C (Electronic Identification System BIS-B-408)
Wiring Connections
View: looking at wiring side of connectors
Description
DIN 41612 connectors, complete with junction
shell and strain relief.
Mechanical Data
Connector Shell Material
Wire terminations
Plastic with locking levers
Solder connections
Ordering Codes
BKS - S39 -
-00
D32 = Connector assembly to use
with BTA-P Digital Card
F48 = Connector assembly to use
with BMC or BPC Programmable Switches or BTA-A Analog Card or BIS-C-480 I.D. System
Processor Card
For connector only order the following:
D32 = BKS-Z / S39-D32-69001-698
F48 = BKS-Z / S39-F48-69001-712
For complete Card Holder with the above connectors, see page titled "Card Holder for BIS and BTA
Eurocard" in this section.
BKS-S39 Cardholders
Connectors
NOTE: Product appearance varies from manufac-
turer to manufacturer; contact factory prior to
purchase for exact specifications.
Balluff Part #
(ordering code)
BKS-S39-F48-SMCH**
Use with BTA
Processor Series
BTA Analog & Digital
BIS-C-480
DIN style
Connector
F 48
Weidmuller
Part Number
SKHF 48 S
Phoenix
Part Number
SKBI 64/F48
Murrelelectronik
Part Number
SKP 48/IF
Terminal
Strips Marked
b, d & z
E36
