M22-2543346: DescriptionBoard Connector, 66 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size3MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M22-2543346 Overview

Board Connector, 66 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

M22-2543346 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.207 inch
body length	2.598 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M22
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	66
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

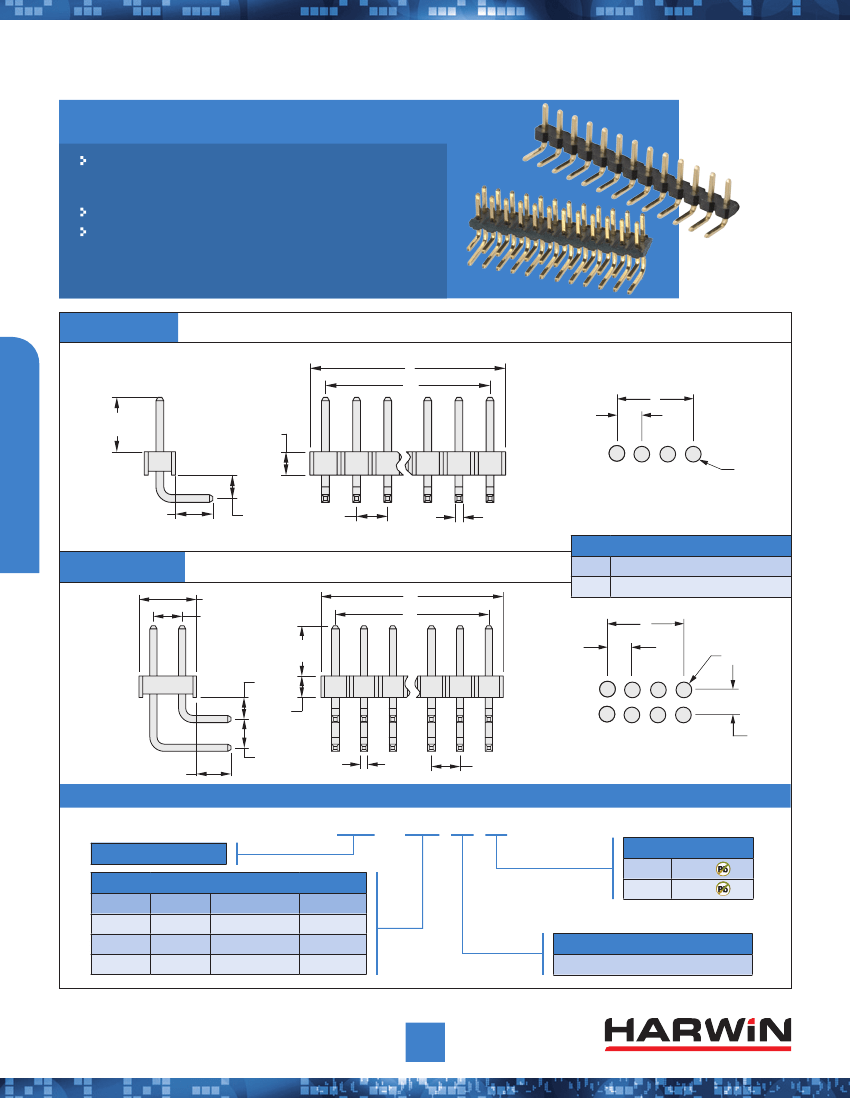

M22 Connectors

Male Horizontal PC Tail

Suitable for use with female PCB connectors and jumper sockets

shown on pages 125 to 127. 4.2mm mating length also suitable

for use with female crimp connectors shown on page 128.

Pin headers can be cut into smaller sizes.

For alternative pin lengths, see pin header variants on page 134.

SINGLE ROW

A

B

2mm (.079") PITCH

Mating

Length

2.00

1.50

ø

0.80

Recommended PC Board Pattern

Tail

1.50

2.00

0.50 square

CalCulation

DOUBLE ROW

4.00

2.00

Mating

Length

1.50

A

B

a

B

2.00 x No. of contacts per row

2.00 x (No. of contacts per row - 1)

B

2.00

ø

0.80

2.00

Tail

Recommended PC Board Pattern

0.50 square

2.00

HOW TO ORDER

M22 - XXX XX XX

series CoDe

ConneCtor tyPe

single

203

253

273

All dimensions in mm.

Finish

05

46

Mating length

3.50mm

4.20mm

tail

3.00mm

2.40mm

Gold

Tin

Double

204

254

274

no. oF ContaCts Per roW

02 to 50

www.harwin.com

130
