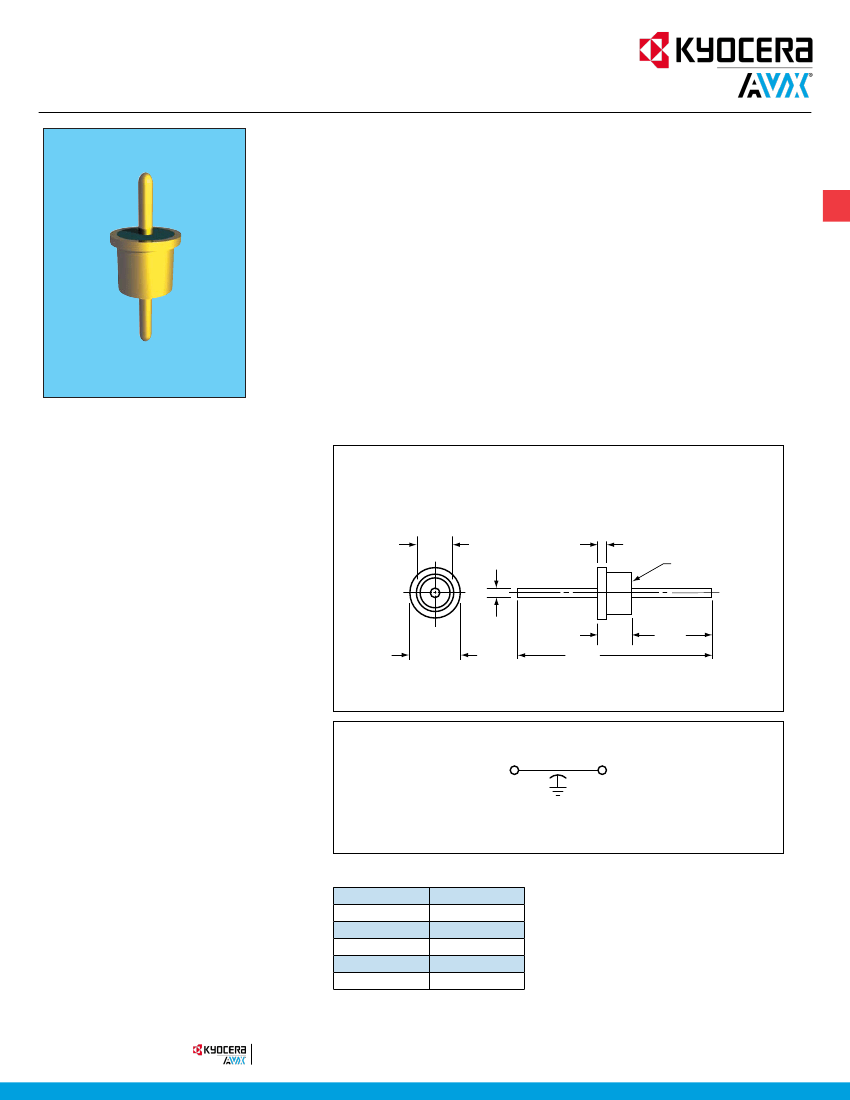

Solder-In Style High Temp EMI Filters
ZZ Series – .118 Dia. – Circuits Available - C
APPLICATIONS
The ZZ series is intended for use as a
high reliability alternative to a commonly
available commercial filter type. Due to
its smaller body diameter, capacitance is
limited. It does provide effective filtering in
the MICROWAVE frequency spectrum from
100 MHz through 26 GHz. Designed to be
soldered into a package, bracket or bulkhead
(and maintain hermeticity), it is ideal for high
impedance circuits where large capacitance
values are not practical.
Alternate lead lengths or special capacitance
values are available upon request.
Custom packages or bracket assemblies
utilizing this feedthru can be furnished to
your specifications.
CHARACTERISTICS
•
High temperature construction withstands
300°C installation temperatures.
• Features rugged monolithic discoidal
capacitor construction.
•
Glass hermetic seal on one end with
epoxy seal on the opposite end.
•
High purity gold plating provides excellent
solderability or compatibility with thermal
and ultrasonic wire bonding.
SPECIFICATIONS
1.
Finish: Gold standard –
Silver and solder coat available
STANDARD CONFIGURATION
(See Note 1)
2.
Material:
Case: Cold rolled steel
Leads: Alloy 52 steel
3. Operating Temperature Range:
-55°C to +125°C
4. Insulation Resistance:
At 25°C: 1,000 megohm-microfarad
min., or 100,000 megohms
min., whichever is less
At 125°C: 100 megohm-microfarad
min., or 10,000 megohms
min., whichever is less
5. Dielectric Withstanding Voltage (DWV):
R-level designs:
2.0 times rated DC voltage
Class B, Class S designs:
2.5 times rated DC voltage
6.
DC Resistance (DCR): .01 ohm,
maximum
.140
±.005
.118
±.002
.030
±.002
.020
±.005
GLASS SEAL
.400
±.020
.110
±.005
.140
±.020
CIRCUIT DIAGRAMS
7. Dissipation Factor (DF): 3% maximum
8. Rated DC Current: 5 Amps, maximum
9. Maximum Installation Temperature:
300°C
10. Supplied with 60/40 solder preform for
easy installation
millimeters (inches)
0.05 (.002)
0.13 (.005)
0.51 (.020)
1.02 (.040)
2.79 (.110)
2.95 (.116)
(See Note 2)
3.05 (.120)
3.43 (.135)
3.56 (.140)
3.68 (.145)
10.16 (.400)
— —
C
ZZ1
Notes:
1. Glass seal on end opposite flange.
2. Metric equivalent dimensions given
for information only.
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
5
–
emi filters
–
Solder-In Style High Temp EMI Filters
ZZ Series – .118 Dia. – Circuits Available - C
SPECIFICATIONS
P/N
ZZ1C3-250H
ZZ1C3-500H
ZZ1C3-101H
ZZ1C3-102H
ZZ1C3-152H
ZZ1A3-250H
ZZ1A3-500H
ZZ1A3-101H
ZZ1A3-102H
ZZ1A3-152H
ZZ1B3-250H
ZZ1B3-500H
ZZ1B3-101H
ZZ1B3-102H
1
Current
(A)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
CKT
C
C
C
C
C
C
C
C
C
C
C
C
C
C
DC
Voltage
50
50
50
50
50
100
100
100
100
100
200
200
200
200
CAP Min.
(pF)
25
50
100
1000
1500
25
50
100
1000
1500
25
50
100
1000
Insertion Loss
1
Per MIL-STD-220, +25°C
1 MHz
–
–
–
–
–
–
–
–
–
–
–
–
–
–
10 MHz
–
–
–
4
5
–
–
–
4
5
–
–
–
4
100 MHz
–
1
3
20
21
–
1
3
18
21
–
1
3
18
1000 MHz
10
15
20
31
42
10
15
20
36
42
10
15
20
36
10 GHz
15
25
30
55
55
15
25
30
55
55
15
25
30
55
Insertion loss limits are based on theoretical values.
Actual measurements may vary due to internal capacitor
resonances and other design constraints.
For special multi-unit assemblies see Multi-Component Filter Brackets section.
6
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
–
emi filters
–
Solder-In Style High Temp EMI Filters

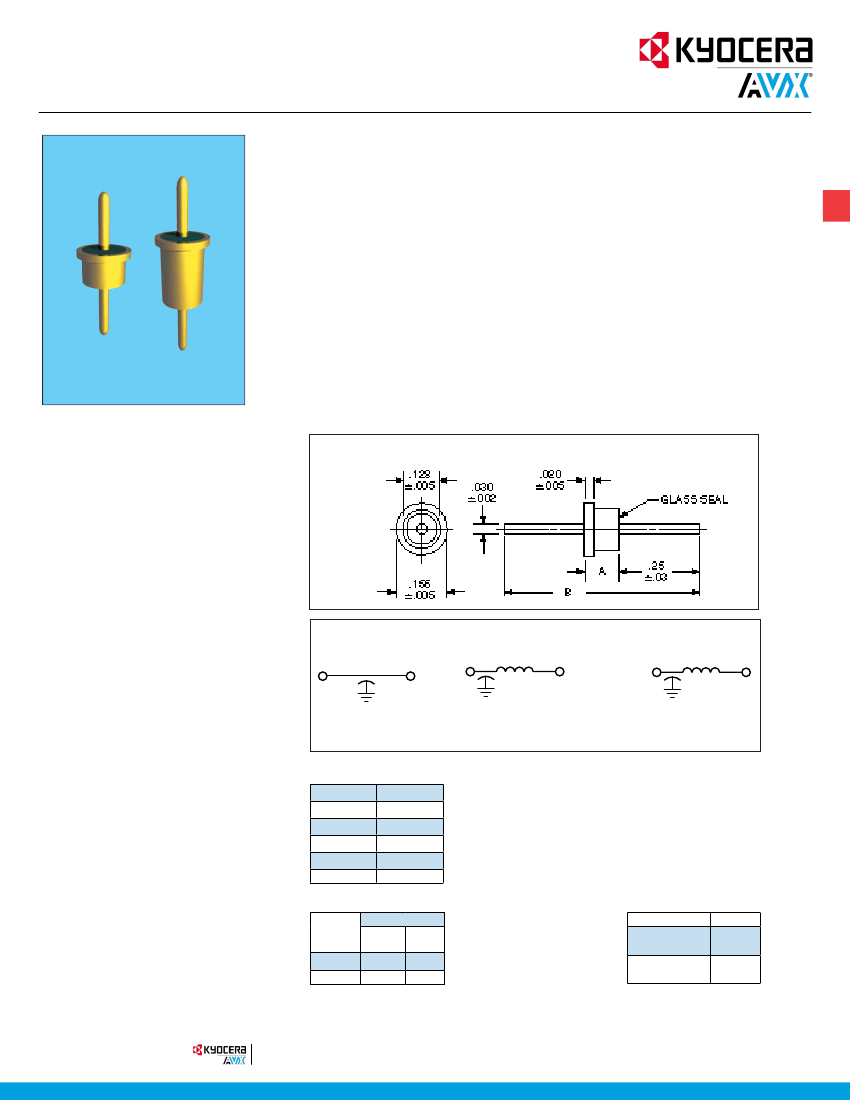

APPLICATIONS
ZS/ZR Series – .128 Dia. – Circuits Available – C & L
The ZS series provides effective filtering
in the MICROWAVE frequency spectrum
from 10 MHz through 26 GHz. Designed
to be soldered into a package, bracket or
bulkhead (and maintain hermeticity), it is
ideal for high impedance circuits where
large capacitance values are not practical.
In the “L” section version an internal ferrite
bead element provides both inductance
and series resistance (lossy characteristic)
which improves insertion loss and provides
superior transient performance.
Alternate lead lengths or special capacitance
values may be ordered.
Custom packages or bracket assemblies
utilizing this feedthru can be furnished to
your specifications.
CHARACTERISTICS
•
Meets or exceeds the applicable portions
of MIL-F-28861/12. See QPL listings.
•
High temperature construction withstands
300°C installation temperatures.
•
Glass hermetic seal on one end with
epoxy seal on the opposite end.
•
High purity gold plating provides excellent
solderability or compatibility with thermal
and ultrasonic wire bonding.
SPECIFICATIONS
1.
Finish: Gold standard –
Silver and solder coat available
2.
Material:
Case: Cold rolled steel
Leads: Alloy 52 steel
3. Operating Temperature Range:
-55°C to +125°C
• Features rugged monolithic discoidal
capacitor construction.
STANDARD CONFIGURATION
4. Insulation Resistance:
At 25°C: 1,000 megohm-microfarad
min., or 100,000 megohms
min., whichever is less
At 125°C: 100 megohm-microfarad
min., or 10,000 megohms
min., whichever is less
5. Dielectric Withstanding Voltage (DWV):
R-level designs:
2.0 times rated DC voltage
Class B, Class S designs:
2.5 times rated DC voltage
6. DC Resistance (DCR): .01 ohm,
maximum
7. Dissipation Factor (DF): 3% maximum
8. Rated DC Current: 5 Amps, maximum
9. Maximum Installation Temperature:
300°C
10. Supplied with 60/40 solder preform for
easy installation
11. Insertion Loss for the “C” and “L” circuits
are equivalent due to the saturation
characteristic of the ferrite bead element
at full rated current. At lower currents
the “L” becomes much more effective.
C
ZS1, ZR1
millimeters (inches)
0.05 (.002)
0.13 (.005)
0.51 (.020)
0.76 (.030)
3.25 (.128)
3.96 (.156)
5.08 (.200)
6.4 (.25)
CIRCUIT DIAGRAMS
FLANGE
END
GLASS
SEAL
END
ZS2
FLANGE
END
(See Note 3)
GLASS
SEAL
END
ZR2
0.8 (.03) 15.88 (.625)
2.79 (.110) 18.16 (.715)
(See Note 4)
Dimensions
A
B
Notes:
1. Outline drawing shows
standard ZS configuration.
Also available with glass
seal at the opposite end, ZR
reverse configuration.
2. MIL-F-28861/12 style FS70
equivalent to standard ZS
configuration. Style FS71 is
reverse ZR configuration.
3. For ZS2 or ZR2 L-Section
Filters inductor always
positioned at epoxy-filled end.
4. Metric equivalent dimensions
given for information only.
MIL-F-28861/12 (See Note 2)
Circuit
Diagram
L
C
Dash No.
001 through 016,
033 and 034
017 through 032,
035 and 036
Style
FS70
FS71
±.005
Nom.
.200
.110
.715
.625
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
7
–
emi filters
–
Solder-In Style High Temp EMI Filters
SPECIFICATIONS
P/N
ZS1C2-501H
ZS1C2-102H
ZS1C2-122H
ZS1C2-272H
ZS1C2-502H
ZS1C2-103H
ZS1C2-153H
ZS2C2-501H
ZS2C2-102H
ZS2C2-122H
ZS2C2-272H
ZS2C2-502H
ZS2C2-103H
ZS2C2-153H
ZS1A2-101H
ZS1A2-501H
ZS1A2-102H
ZS1A2-122H
ZS1A2-272H
ZS1A2-502H
ZS1A2-103H
ZS1A2-153H
ZS2A2-100H
ZS2A2-250H
ZS2A2-101H
ZS2A2-501H
ZS2A2-102H
ZS2A2-122H
ZS2A2-272H
ZS2A2-502H
ZS2A2-103H
ZS2A2-153H
1
ZS/ZR Series – .128 Dia. – Circuits Available – C & L
Insertion Loss
1
Per MIL-STD-220, +25°C
1
10
100
1000
MHz
MHz
MHz
MHz
–
–
15
30
–
–
–
–
4
7
–
–
–
–
–
4
7
–
–
–
–
–
–
4
7
–
–
–
–
–
–
–
–
4
7
4
5
10
15
20
25
–
4
5
10
15
20
25
–
–
4
5
10
15
20
25
–
–
–
–
4
5
10
15
20
25
20
20
25
30
35
40
15
20
20
25
30
38
42
3
15
20
20
25
30
35
40
–
–
3
15
20
20
25
30
38
42
31
35
40
45
48
50
30
33
37
40
45
50
50
20
30
31
35
40
45
48
50
5
10
20
30
33
37
40
45
50
50
Current
(A)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
CKT
C
C
C
C
C
C
C
L
L
L
L
L
L
L
C
C
C
C
C
C
C
C
L
L
L
L
L
L
L
L
L
L
DC
Voltage
50
50
50
50
50
50
50
50
50
50
50
50
50
50
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
CAP
Min.
500 pF
1000 pF
1200 pF
2700 pF
5000 pF
0.010 μF
0.015 μF
500 pF
1000 pF
1200 pF
2700 pF
5000 pF
0.010 μF
0.015 μF
100 pF
500 pF
1000 pF
1200 pF
2700 pF
5000 pF
0.010 μF
0.015 μF
10 pF
25 pF
100 pF
500 pF
1000 pF
1200 pF
2700 pF
5000 pF
0.010 μF
0.015 μF
500
KHz
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
10
GHz
50
55
55
60
60
60
60
50
55
55
60
60
60
60
30
50
55
55
60
60
60
60
10
15
30
50
55
55
60
60
60
60
continued
Insertion loss limits are based on theoretical values.
Actual measurements may vary due to internal capacitor
resonances and other design constraints.
NOTE:
Filters' Standard configurations (e.g. ZS, YS, XS, WS) have the hermetic glass seal
opposite the flange end. All parts are capable of the reverse configuration with the glass
seal at
the flange end. All parameters are otherwise identical. The part number changes
from “S” to “R” (e.g., standard = ZS1C2-153H; reverse = ZR1C2-153H).
For special multi-unit assemblies see Multi-Component Filter Brackets section.
8
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
–
emi filters
–
Solder-In Style High Temp EMI Filters
SPECIFICATIONS
P/N
ZS1B2-100H
ZS1B2-250H
ZS1B2-101H
ZS1B2-501H
ZS1B2-102H
ZS1B2-122H
ZS1B2-272H
ZS2B2-100H
ZS2B2-250H
ZS2B2-101H
ZS2B2-501H
ZS2B2-102H
ZS2B2-122H
ZS2B2-272H
1
ZS/ZR Series – .128 Dia. – Circuits Available – C & L
Insertion Loss
1
Per MIL-STD-220, +25°C
1
10
100
1000
MHz
MHz
MHz
MHz
–
–
–
4
–
–
–
10
–
–
3
20
–
–
15
30
–
4
20
31
–
5
20
35
–
10
25
40
–
–
–
5
–
–
–
10
–
–
3
20
–
–
15
30
–
4
20
33
–
5
20
37
–
10
25
40
Current
(A)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
CKT
C
C
C
C
C
C
C
L
L
L
L
L
L
L
DC
Voltage
200
200
200
200
200
200
200
200
200
200
200
200
200
200
CAP
Min.
10 pF
25 pF
100 pF
500 pF
1000 pF
1200 pF
2700 pF
10 pF
25 pF
100 pF
500 pF
1000 pF
1200 pF
2700 pF
500
KHz
–
–
–
–
–
–
–
–
–
–
–
–
–
–
10
GHz
10
15
30
50
55
55
60
10
15
30
50
55
55
60
Insertion loss limits are based on theoretical values.
Actual measurements may vary due to internal capacitor
resonances and other design constraints.
NOTE:
Filters' Standard configurations (e.g. ZS, YS, XS, WS) have the hermetic glass seal
opposite the flange end. All parts are capable of the reverse configuration with the glass
seal at
the flange end. All parameters are otherwise identical. The part number changes
from “S” to “R” (e.g., standard = ZS1C2-153H; reverse = ZR1C2-153H).
For special multi-unit assemblies see Multi-Component Filter Brackets section.
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
9
–
emi filters
–
京公网安备 11010802033920号
EEWORLD
