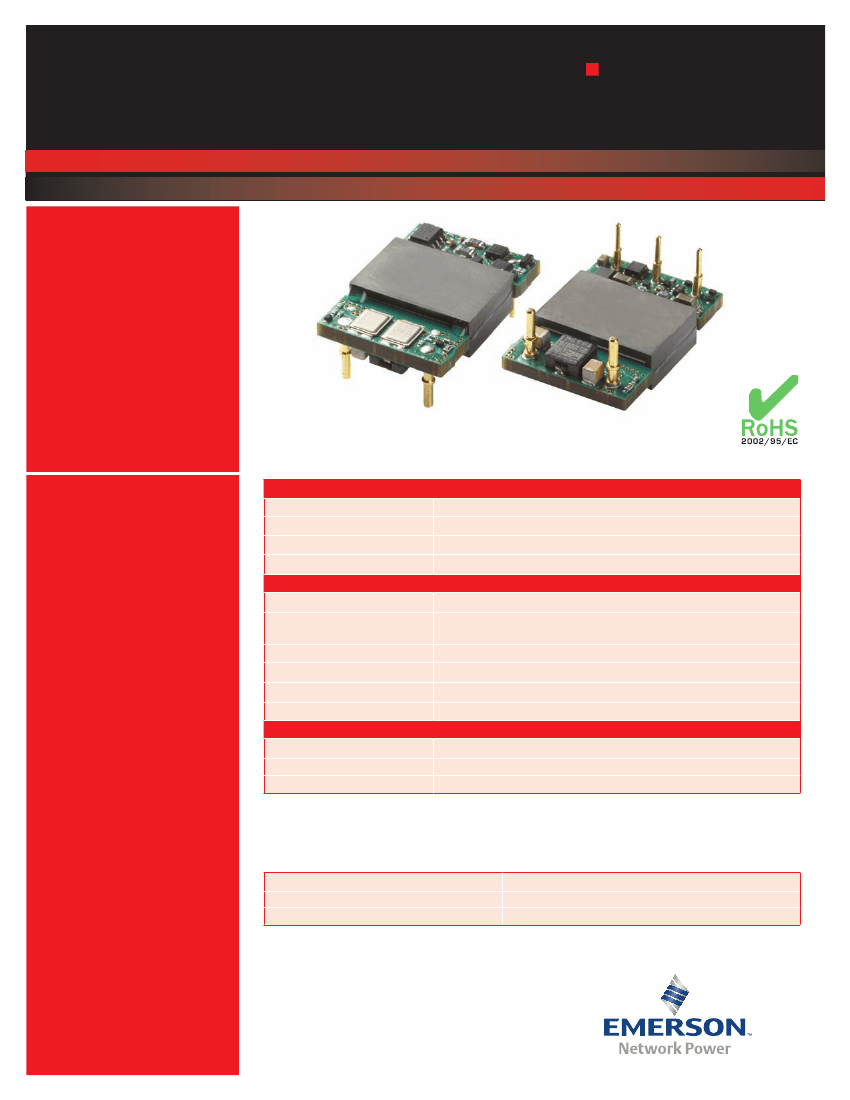

AED/ALD13B50
1/16th Brick IBC Series
Total Power:
150 Watts
Input Voltage:
38 - 60 Vdc
Output Voltage:
12 Vdc
Rev. 06.15.09_11
AED/ALD13B50
1 of 3
Electrical Specifications
Input
Special Features
• Intermediate Bus Converter
for Front End
(DPA) Distributed Power
Architecture application
• High efficiency (95% Typical)
• Industry standard package
16th Brick 0.90” x 1.30”
• High capacitive load limit on
start-up
• Output Enable Pin
• Undervoltage lockout
• Over Temperature Protection
• Meets Basic Insulation
• EU directive 2002/95/EC
compliant for RoHS
Input range:
Efficiency:
Over Voltage Protection:
Input UVLO:
38 V to 60 V
95%@ 12 V (typical)
67 V typical
33 V to 38 V
13 A max
8.7 V to 15 V
180 mV (typical)
Auto-restart
165 kHz
TTL compatible (positive or negative enable logic)
2000 Vdc max
Output
Output current:
Output Voltage over line, load
and temperature:
Noise/ripple
1:
Over current limit:
Switching frequency:
Over temperature protection: 110 °C minimum (autorecovery)
Control
Enable:
Isolation Voltage:
Input to Output:
Environmental Specifications
Safety
• UL, cUL: 60950
• TUV: EN60950
Operating ambient temperature range:
Storage temperature:
MTBF:
-40 °C to +85 °C ambient
-55 °C to +125 °C
> 1 million hours
Embedded Power for
Business-Critical Continuity
Ordering Information
Input Voltage
38 - 60V
Options:
(X) :
(N) :
(6) :
(L) :
“L” =
“E” =
“N” =
“-6” =
“L” =
Rev. 06.15.09_11
AED/ALD13B50
of 3
Output Voltage
12 V
Output Current
13 A
Efficiency
2
95% Typ
Model Number
A(X)D13B50(N)-(6)(L)
Open Frame / Low Profile
Heatplate Construction
Designates Negative Logic Enable (default is Positive Enable with no suffix “N” required)
3.7 mm nominal pin length (default is 5 mm nominal pin length with no suffix “-6” required)
RoHS Compliant (RoHS 6)
Notes:
1. 20 MHz bandwidth. External 10 uF tant. capacitor in parallel with 1 uF ceramic capacitor
placed across the output and secondary return ground.
2. Efficiency measurements are typical values taken at
48 V input, nominal output, full load and T
A
= 25 °C.
3. All specifications are typical at nominal line, full load and T
A
= 25 °C unless otherwise
noted.
4. All specifications subject to change without notice.
5. Mechanical drawings are for reference only. Dimensions are in inches [millimeters]. Pin
placement tolerance ± 0.005 [0.127]. Mechanical Tolerance ± 0.02 [0.5]. Pin diameter,
Ø = 0.06” for Pin 4 (-Vout) and Pin 8 (+Vout), the rest of the pins are Ø = 0.04”.
6. Technical Reference Notes should be consulted for detailed information when available.
7. Warranty 1yr.
Pin Connections
Single Output
1. +Vin
2. Enable
3. -Vin
4. -Vout
5. Blank
6. Blank
7. Blank
8. +Vout

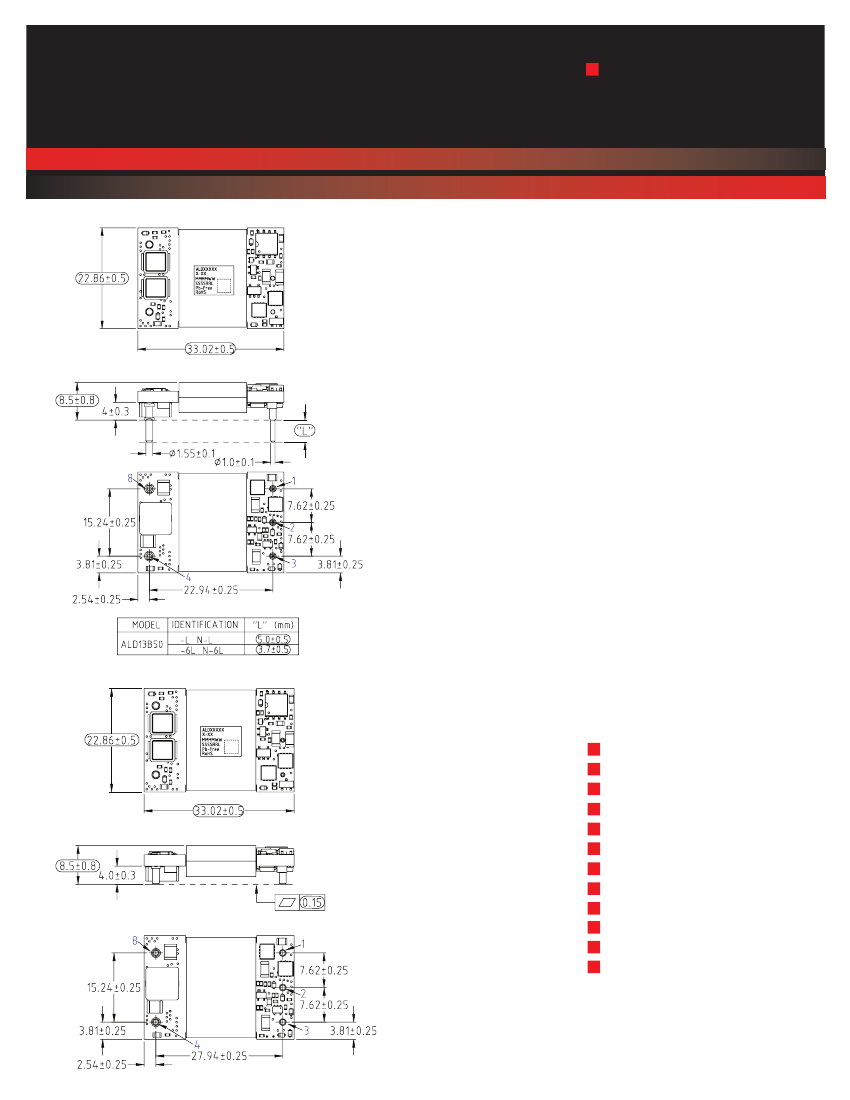

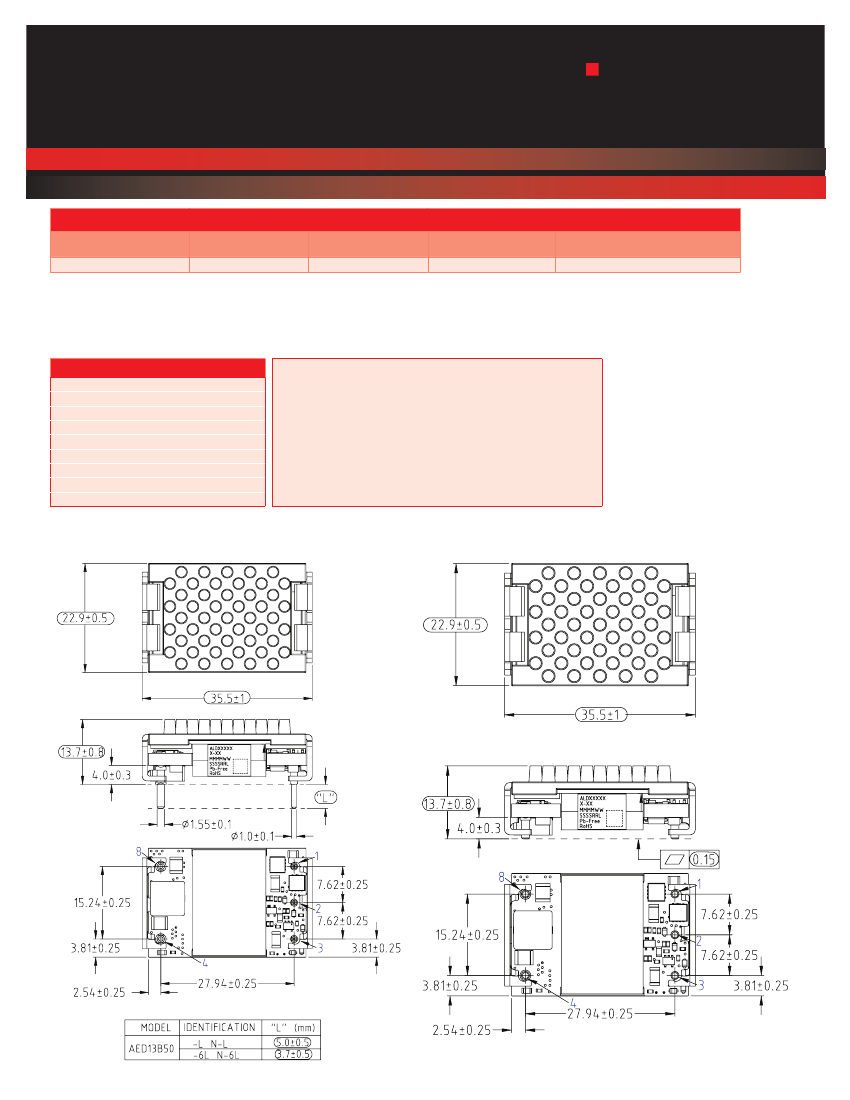

Mechanical Drawings
AED13B50-L
AED13B50-SL
Embedded Power for
Business-Critical Continuity
ALD13B50-L
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Rev. 06.15.09_11
AED/ALD13B50
3 of 3
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.PowerConversion.com
techsupport.embeddedpower
@emerson.com
