ACPL-772L and ACPL-072L
3.3V/5V High Speed CMOS Optocoupler
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
Available in either an 8-pin DIP or SO-8 style respectively,
the ACPL-772L or ACPL-072L optocouplers utilize the
latest CMOS IC technology to achieve outstanding speed
performance of minimum 25MBd data rate and 6ns
maximum pulse width distortion.
Basic building blocks of this family of products are a
CMOS LED driver IC, a high speed LED and a CMOS
detector IC. A CMOS logic input signal controls the LED
driver IC, which supplies current to the LED. The detector
IC incorporates an integrated photodiode, a high speed
transimpedance amplifier, and a voltage comparator with
an output driver.
Features
•
•
•
•
•
•
•
•
Dual voltage operation (3.3V and 5V)
Allow level shifting functionality
Support high Speed datarate of 25 MBd
Wide Temperature operation
CMOS output and buffer input
Compatible with CMOS and TTL logic level
Lower power consumption with 3.3V supply
Good AC performance with lower pulse width
distortion
•
Lead-free option available
Functional Diagram
**V
DD1
V
I
1
8
V
DD2
**
NC*
Specifications
•
•
•
•
•
•
•
•
3.3V and 5V CMOS Compatibility
High Speed: DC to 25 MBd
6ns max. Pulse Width Distortion
40 ns max. Prop. Delay
20 ns max. Prop. Delay Skew
10 kV/ms min. Common Mode Rejection
-40 °C to 105 °C Temperature Range
Safety and Regulatory Approvals:
UL Recognised for ACPL-072L and Pending UL
Recognised for ACPL-772L
- 5000V
rms
for 1 min. per UL1577 for ACPL-772L
for option 020
- 3750V
rms
for 1 min. per UL1577 for ACPL-072L
CSA Component Acceptance Notice #5
IEC/EN/DIN EN 60747-5-2
– V
IORM
= 630 V
peak
for ACPL-772L Option 060
– V
IORM
= 560 V
peak
for ACPL-072L Option 060
2
I
O
LED1
7
NC*
3
6
V
O
GND
1
4
SHIELD
5
GND
2
*
Pin 3 is the anode of the internal LED and must be left unconnected
for guaranteed datasheet performance. Pin 7 is not connected
internally.
** A 0.1uF bypass capacitor must be connected between pins 1 and 4,
and 5 and 8.
TRUTH TABLE (POSITIVE LOGIC)
V
I
, INPUT
H
L
LED1
OFF
ON
V
O
, OUTPUT
H
L
Applications
•
•
•
•
•
Digital Fieldbus Isolation: DeviceNet, Profibus, SDS
Multiplexed Data Transmission
General Instrument and Data Acquisition
Computer Peripheral interface
Microprocessor System Interface
CAUTION: It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation, which may be induced by ESD.
Device Selection Guide
8-Pin DIP
(300 Mil)
ACPL-772L
Small Outline
SO-8
ACPL-072L
Ordering Information
ACPL-072L and ACPL-772L are UL Recognized with 3750 Vrms for 1 minute per UL1577.
Option
Part
number
RoHS
Compliant
-000E
-300E
-500E
-020E
ACPL-772L
-320E
-520E
-060E
-360E
-560E
-000E
ACPL-072L
-500E
-060E
-560E
Non RoHS
Compliant
-
-
-
-
-
-
-
-
-
No option
-500
-060
-560
Package
Surface
Mount
X
X
Gull
Wing
X
X
X
X
X
X
Tape
& Reel
UL 5000
Vrms/ 1
Minute
rating
IEC/EN/DIN
EN 60747-
5-2
Quantity
50 per tube
50 per tube
X
X
X
X
X
X
X
X
X
X
X
X
X
1000 per reel
50 per tube
50 per tube
1000 per reel
50 per tube
50 per tube
1000 per reel
100 per tube
1500 per reel
100 per tube
1500 per reel
300mil
DIP-8
X
X
X
X
X
X
X
X
SO-8
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1:
ACPL-772L-560E to order product of Gull Wing Surface Mount package in Tape and Reel packaging with IEC/EN/DIN
EN 60747-5-2 Safety Approval in RoHS compliant.
Example 2:
ACPl-072L to order product of Small Outline SO-8 package in tube packaging and non RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.

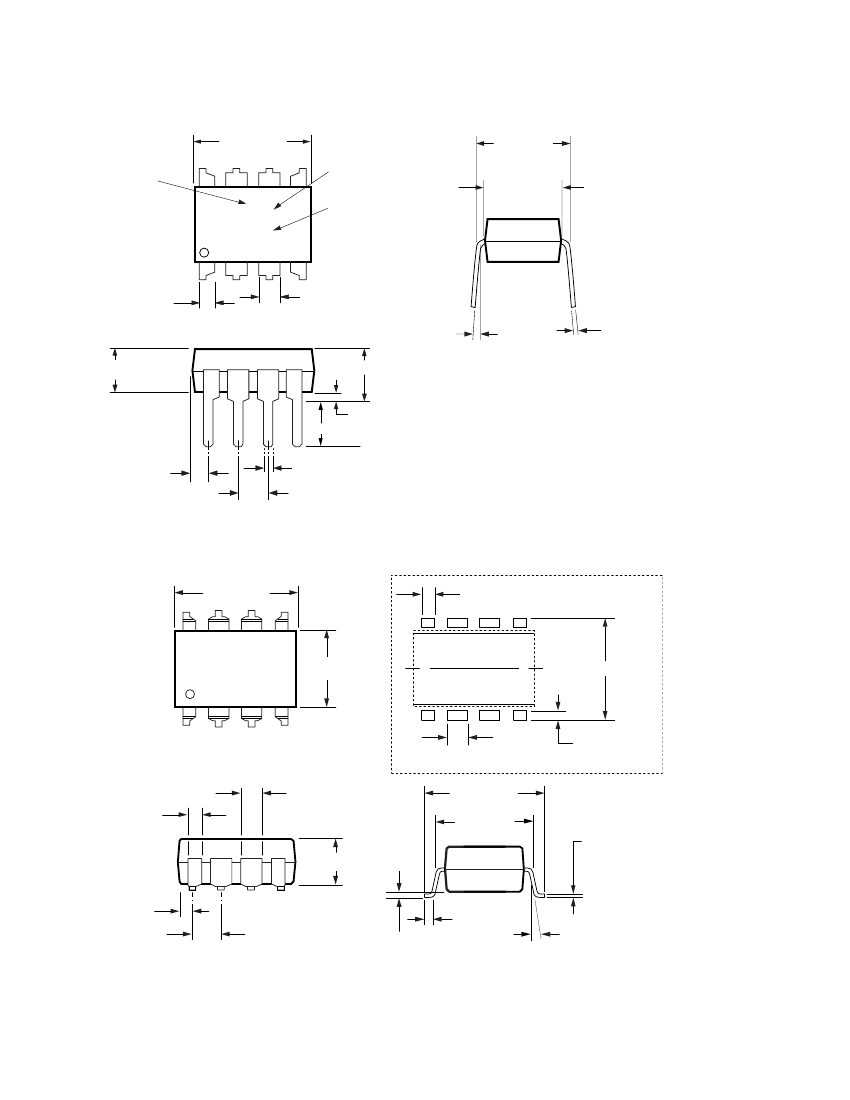

Package Dimensions
ACPL-772L 8-Pin DIP Package
9.65 ± 0.25
(0.380 ± 0.010)
TYPE NUMBER
8
7
6
5
OPTION 060 CODE*
DATE CODE
7.62 ± 0.25
(0.300 ± 0.010)
6.35 ± 0.25
(0.250 ± 0.010)
A XXXXV
YYWW
1
1.19 (0.047) MAX.
2
3
4
1.78 (0.070) MAX.
+ 0.076
- 0.051
+ 0.003)
(0.010 - 0.002)
0.254
5° TYP.
3.56 ± 0.13
(0.140 ± 0.005)
4.70 (0.185) MAX.
0.51 (0.020) MIN.
2.92 (0.115) MIN.
DIMENSIONS IN MILLIMETERS AND (INCHES).
*OPTION 300 AND 500 NOT MARKED.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
1.080 ± 0.320
(0.043 ± 0.013)
0.65 (0.025) MAX.
2.54 ± 0.25
(0.100 ± 0.010)
ACPL-772L Package with Gull Wing Surface Mount Option 300
LAND PATTERN RECOMMENDATION
9.65 ± 0.25
(0.380 ± 0.010)
8
7
6
5
6.350 ± 0.25
(0.250 ± 0.010)
1
3
1.016 (0.040)
10.9 (0.430)
2
4
2.0 (0.080)
1.27 (0.050)
1.780
(0.070)
MAX.
9.65 ± 0.25
(0.380 ± 0.010)
7.62 ± 0.25
(0.300 ± 0.010)
1.19
(0.047)
MAX.
3.56 ± 0.13
(0.140 ± 0.005)
+ 0.076
- 0.051
+ 0.003)
(0.010 - 0.002)
0.254
1.080 ± 0.320
(0.043 ± 0.013)
2.54
(0.100)
BSC
DIMENSIONS IN MILLIMETERS (INCHES).
LEAD COPLANARITY = 0.10 mm (0.004 INCHES).
0.635 ± 0.130
(0.025 ± 0.005)
0.635 ± 0.25
(0.025 ± 0.010)
12 ° NOM.
NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX.
3
Solder Reflow Temperature Profile
300
PREHEATING RATE 3˚C + 1 ˚C/- 0.5 ˚C/SEC.
REFLOW HEATING RATE 2.5˚C ± 0.5 ˚C/SEC.
PEAK
TEMP.
245 ˚C
PEAK
TEMP.
240 ˚C
TEMPERATURE (
˚
C)
200
160 ˚C
150 ˚C
140 ˚C
PEAK
TEMP.
230˚C
2.5˚ C ± 0.5˚C/SEC.
30
SEC.
3˚C + 1 ˚C/- 0.5 ˚C
30
SEC.
SOLDERING
TIME
200˚C
100
PREHEATING TIME
150 ˚C, 90 + 30 SEC.
50 SEC.
TIGHT
TYPICAL
LOOSE
ROOM
TEMPERATURE
0
0
50
100
150
TIME (SECONDS)
200
250
Note: Non-halide flux should be used
Recommended Pb-Free IR Profile
t
p
T
p
T
L
TEMPERATURE
T
smax
T
smin
t
s
PREHEAT
60 to 180 SEC.
25
t 25
˚
C to PEAK
TIME
NO TES:
THE TIME FROM 25
˚
C to PEAK TEMPERATURE = 8 MINUTES MAX.
T
smax
= 200
˚
C, T
smin
= 150
˚
C
t
L
60 to 150 SEC.
260 +0/-5
˚
C
217
˚
C
RAMP-UP
3
˚
C/SEC. MAX.
150 - 200
˚
C
RAMP-DOWN
6
˚
C/SEC. MAX.
TIME WITHIN 5
˚
C of ACTUAL
PEAK TEMPERATURE
20-40 SEC.
Note: Non-halide flux should be used
Regulatory Information
ACPL-072L has been approved while ACPL-772L is pending approval from the following organizations:
IEC/EN/DIN EN 60747-5-2
Approved under:
IEC 60747-5-2:1997 + A1:2002
EN 60747-5-2:2001 + A1:2002
DIN EN 60747-5-2 (VDE 0884 Teil 2):2003-01.
(option 060 only)
UL
Approved under UL 1577, component recognition
program up, File E55361.
CSA
Approved under CSA Component Acceptance Notice #5,
File CA 88324.
5
