3191-03P1: Description2.36mm (.093") diameter Standard .093" pin and socket plug housing with positive latch, UL 94v-2, 3 circuits; File Size82KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

3191-03P1 Overview

2.36mm (.093") diameter Standard .093" pin and socket plug housing with positive latch, UL 94v-2, 3 circuits

Preview

Download Datasheet

View All

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039036032

Active

standard_093

2.36mm (.093") Diameter Standard .093" Pin and Socket Plug Housing With Positive

Latch, UL 94V-2, 3 Circuits

Documents:

3D Model

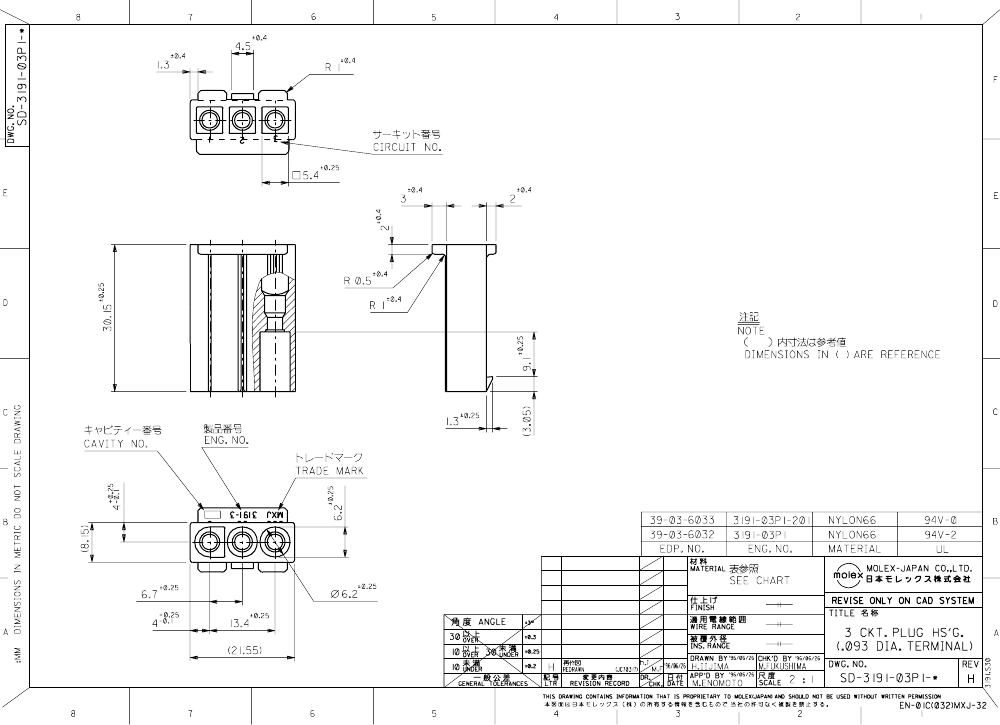

Drawing (PDF)

Product Specification PS-3191-001 (PDF)

Product Specification PS-3191-005 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Crimp Housings

3191

Polarized to Mating Part

standard_093

Standard .093"

Physical

Breakaway

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

1x3

Natural

94V-2

Dual

None

Yes

Nylon

Bag

0.264 In

6.71 mm

Yes

-40°C to +105°C

Search Parts in this Series

3191Series

Mates With

3191 Pin and Socket Recptacle, 5219

Vertical PCB Header

Use With

1189 Crimp Terminals, 1190 Crimp

Terminals, 1380 Male Crimp Terminals,

1381 Female Crimp Terminals, 1433 Crimp

Terminals, 1434 Male Crimp Terminals,

2605 , 2606 , 1973 , 2151 , 2273 , 2870 ,

2871 , 4272 , Lin

Electrical

Current - Maximum per Contact

11A

Material Info

Old Part Number

3191-03P1

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-3191-001

PS-3191-001, PS-3191-005, RPS-3191-001

SD-3191-03P1-*
