5559-03P3-210: Description4.20mm (.165") pitch mini-fit Jr.? plug housing, single row, without panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 3 circuits; File Size110KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

5559-03P3-210 Overview

4.20mm (.165") pitch mini-fit Jr.? plug housing, single row, without panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 3 circuits

Preview

Download Datasheet

View All

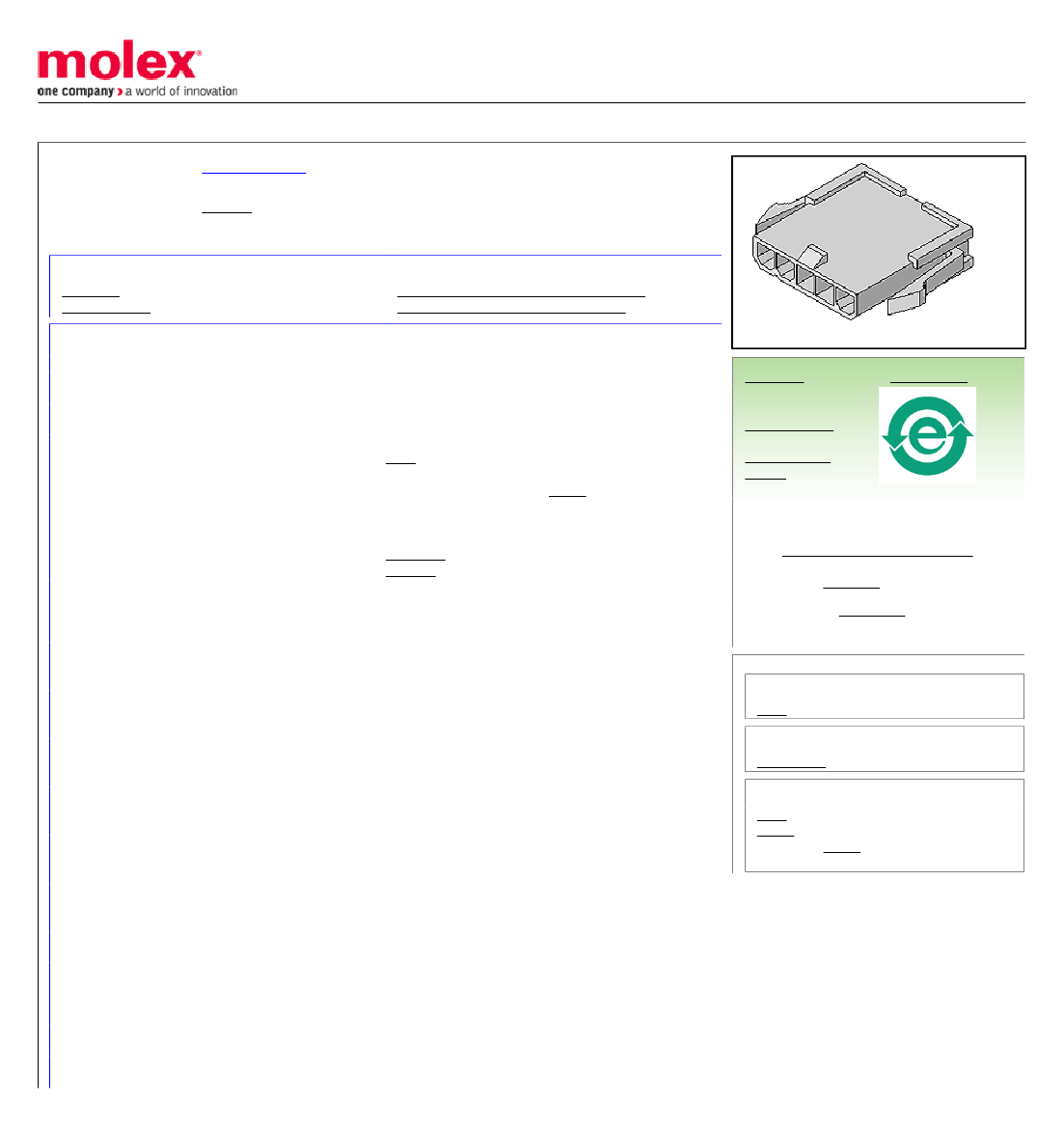

This document was generated on 05/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039014032

Active

minifit_jr

4.20mm (.165") Pitch Mini-Fit Jr.™ Plug Housing, Single Row, with Panel Mount Ears,

PA Polyamide Nylon 6/6, UL 94V-2, 3 Circuits

Documents:

3D Model

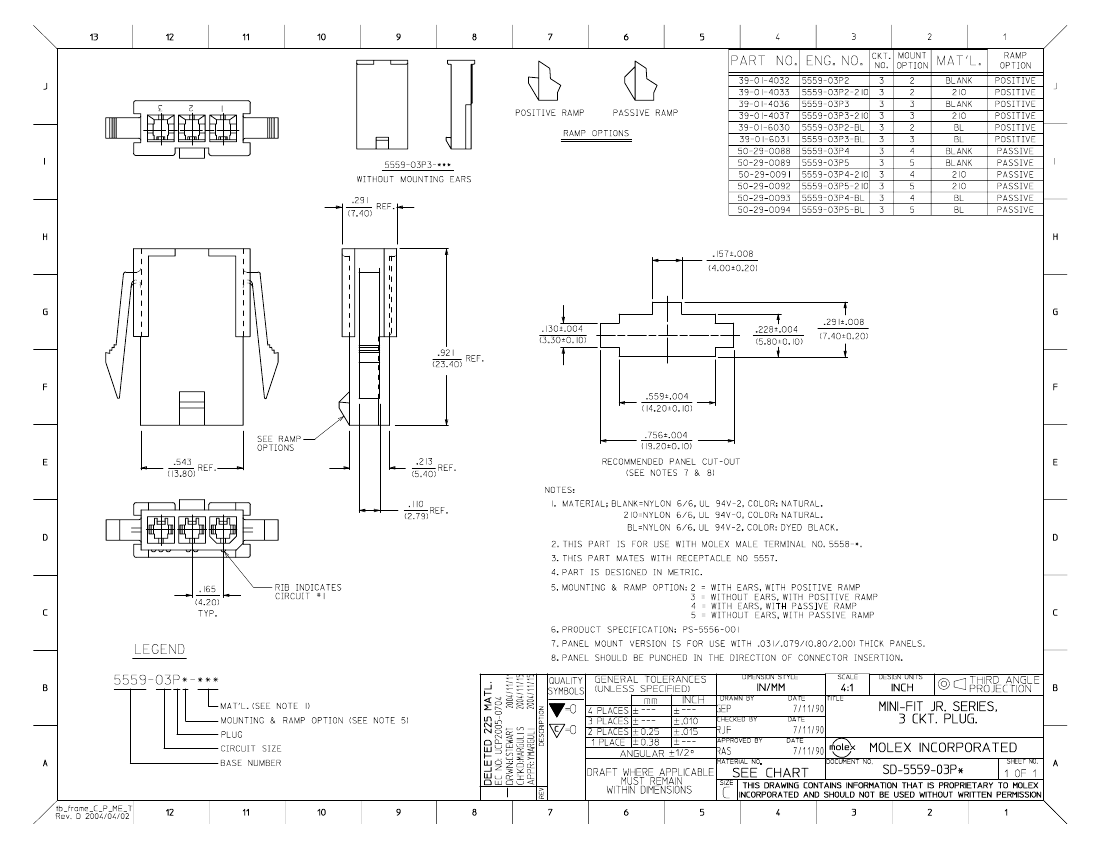

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

R72081037

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

TUV

General

Product Family

Series

Comments

Crimp Housings

5559

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 series terminals

crimped to 16 AWG wire. . See Molex product

specification PS-45750-001 for additional current de-

rating information.. Glow Wire Equivalent Part Number

50361893

minifit_jr

Mini-Fit Jr.™

Overview

Product Name

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-2

Male

None

Yes

Nylon

Bag

Yes

0.165 In

4.20 mm

0.165 In

4.20 mm

Yes

-40°C to +105°C

Search Parts in this Series

5559Series

Mates With

39-01-4030 Receptacle Housing

Use With

5558 Mini-Fit Jr.™ Male Crimp Terminals.

44478 Mini-Fit HCS™ Male Crimp

Terminals. 30490 Mini-Fit® Male Grounding

Crimp Terminals

Electrical

Current - Maximum per Contact

13A

Material Info

Old Part Number

5559-03P2

Reference - Drawing Numbers

Packaging Specification

Product Specification

PK-5559-003

PS-5556-001

5559-03P3-210 Related Products

	5559-03P3-210	5559-03P2	5559-03P2-210
Description	4.20mm (.165") pitch mini-fit Jr.? plug housing, single row, without panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 3 circuits	4.20mm (.165") pitch mini-fit Jr. plug housing, single row, with panel mount ears	4.20mm (.165") pitch mini-fit Jr.? plug housing, single row, with panel mount ears, PA polyamide nylon 6/6, UL 94v-0, 3 circuits, glow wire compatible
