340-43-127-30-780100 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 340-43-127-30-780100

340-43-127-30-780100: DescriptionBoard Connector, 27 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size634KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

340-43-127-30-780100 Overview

Board Connector, 27 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

340-43-127-30-780100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	340
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	27
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

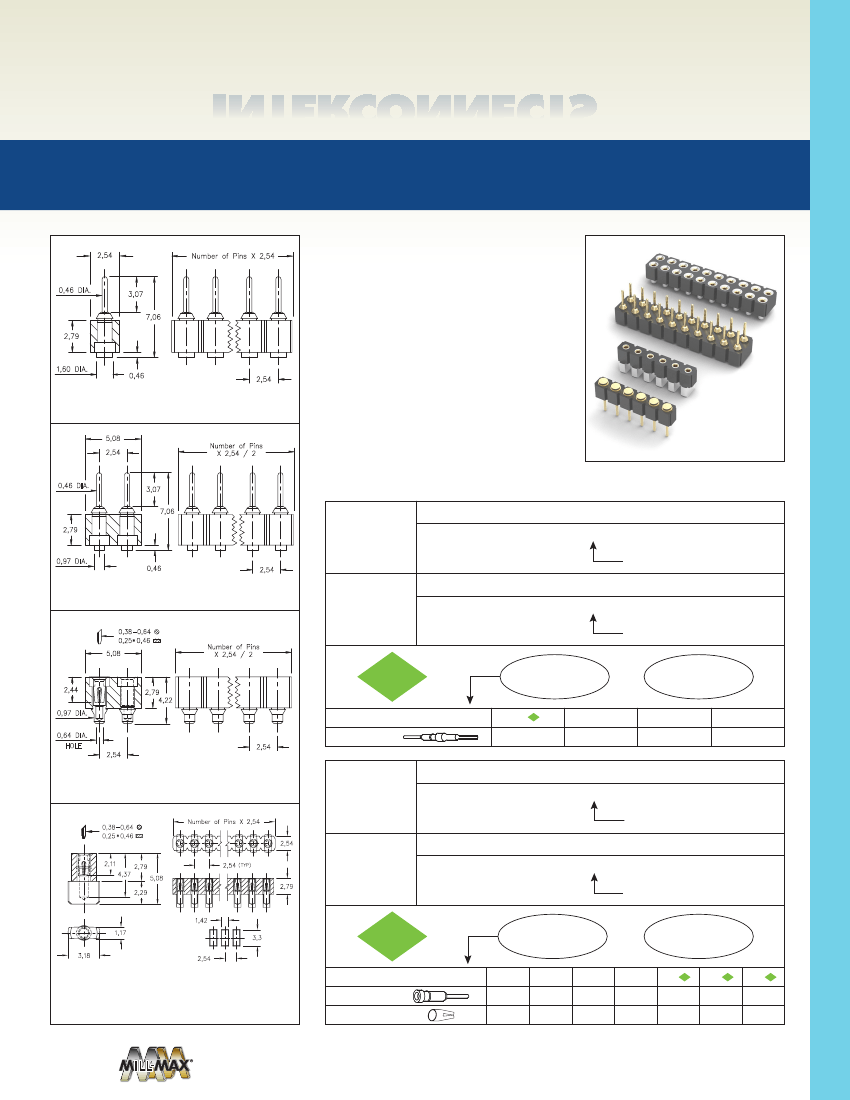

SERIES 329, 340, 414, 429 • 2,54 GRID SURFACE MOUNT

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

•

Series 329 and 429 pin interconnects feature

2,54

Number of Pins X 2,54

0,46 DIA.

space saving, pad style SMT termination using

MM #2956-X pins. See page 218 for details

height of 8,20

3,07

7,06

•

Series 429 and 414 combine for a mated

•

Series 340 and 414 surface mount sockets use

MM #4078 and #1434 receptacles. See pages

162 and 167 for details

4-finger BeCu #30 contacts rated at 3 amps.

Receptacles accept 0,38 - 0,64 diameter pins

See page 253 for details

suitable for all soldering operations

2,79

1,60 DIA.

0,46

2,54

•

Series 340 and 414 receptacles use Hi-Rel,

FIG. 1

5,08

2,54

Number of Pins

X 2,54 / 2

•

Insulators are high temperature thermoplastic,

0,46 DIA.

3,07

7,06

ORDERING INFORMATION

Series 329...560

Single Row Surface Mount Pin Header

329-10-1_ _-00-560000

Specify number of pins

02-64

2,79

FIG. 1

0,46

2,54

0,97 DIA.

FIG. 2

Series 429...560

Double Row Surface Mount Pin Header

429-10-2_ _-00-560000

04-72

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

0,25μm Au

2011/65/EU

SPECIFY PLATING CODE XX=

Pin Plating

FIG. 3

0,38-0,64

0,25 * 0,46

Number of Pins X 2,54

2,54

5,08

2,29

2,79

Series 414...117

Double Row Surface Mount Socket

414-XX-2_ _-41-117000

04-72

FIG. 3

Series 340...780

Specify number of pins

Single Row Surface Mount Socket

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

2,11

4,37

2,79

Specify number of pins

RoHS - 2

1,42

1,17

Footprint

2,54

3,3

2011/65/EU

XX=Plating Code

See Below

3,18

Coplanarity 0,13. For pin counts >10 positions, consult

Technical Support.

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

FIG. 4

5,08μm Sn/Pb

5,08μm Sn 5,08μm Sn 5,08μm Sn

2,54μm Sn/Pb

0,25μm Au 0,76μm Au 2,54μm Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 49 | INTERCONNECTS

FIG. 4

340-XX-1_ _-30-780100
