Features
n
RoHS compliant*
n
Small package dimensions
n
Power rating at 70 °C = 1/16 W
n
Three layer termination process with nickel
barrier helps prevent leaching and provides
excellent solderability
This series is currently available but
not recommended for new designs.
Recommended replacement
products are available. The replacement
devices are functionally equivalent, but are
not in identical packages. See CR0402A-AS
Series.

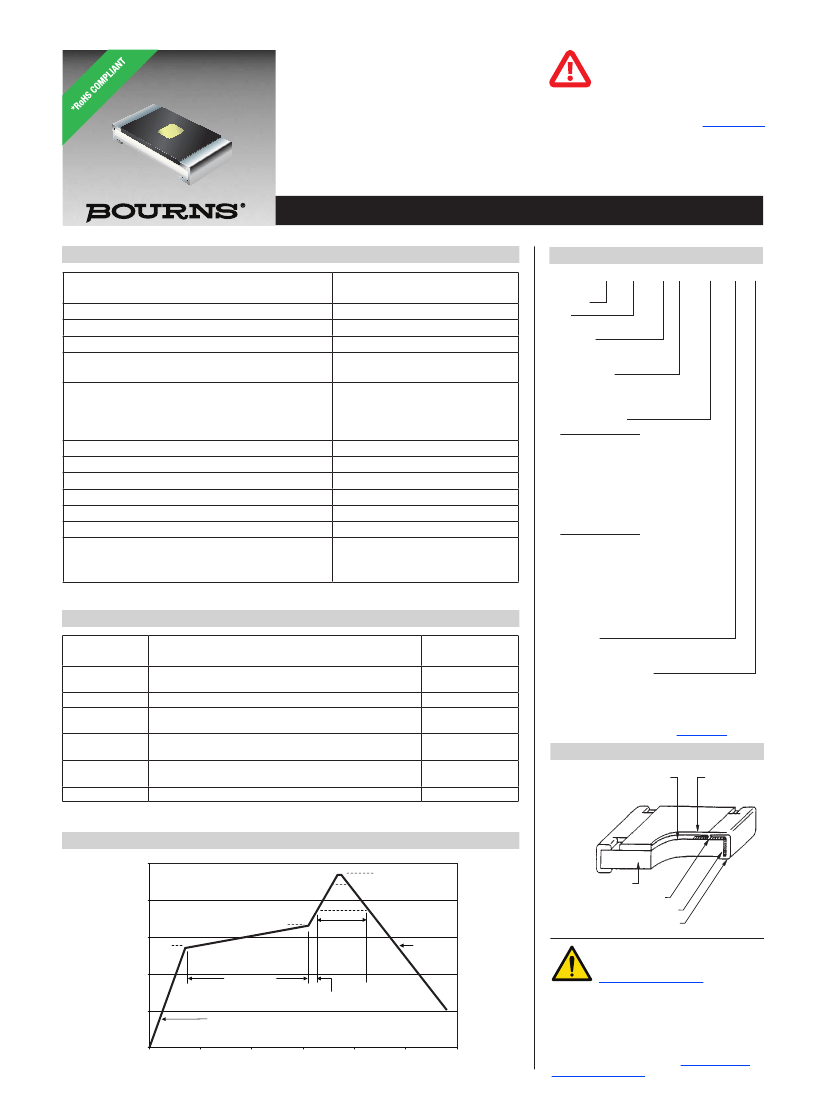

CR0402-AS Series
-
Sulfur-Resistant Thick Film Chip Resistors
General Characteristics
Characteristic
Power Rating @ 70 °C per Resistor
Resistor Tolerance
Resistance Range - 1 % Tolerance (E24 + E96)
Resistance Range - 5 % Tolerance (E24),
Zero-ohm Jumper
Temperature Coefficient of Resistance (TCR)
1 % Tolerance
5 % Tolerance
Zero-ohm Jumper
Maximum Overload Voltage
Maximum Working Voltage
Operating Temperature Range
Storage Conditions
Derating Temperature
Packaging (Paper Tape)
Zero-ohm Jumper:
Current Rating
Maximum Resistance
CR0402-AS
0.063 W
±1 %, ±5 %
10 ohms to 1 megohm
1 ohm to 10 megohms,
0 ohms
±100 ppm/°C
±200 ppm/°C**
N/A
50 V
100 V
-55 to +155 °C
How To Order
+5 ~ +40 °C, 25~75 % RH, 1 year
+70 °C
10,000 pcs. per reel
1 A per element
50 milliohms
**TCR for 1 ohm to 9.1 ohm resistance range, 5 % tolerance is ±300 ppm/°C.
Environmental Characteristics
Specification
Test Method
(JIS C 5201-1)
Characteristics
±(2 % +0.1 ohm)
±(1 % +0.05 ohm)
±(1 % +0.05 ohm)
±(3 % +0.1 ohm)
±(3 % +0.1 ohm)
±(5 % +0.1 ohm)
Short Time
Overload
Soldering Heat
Temperature
Cycling
Moisture Load
Life
Load Life
Sulfur Test
Rated voltage x 2.5, 5 seconds
+260 °C ±5 °C, 10 ±1 seconds
-55 °C (30 minutes) - normal (2~3 minutes)
+125 °C (30 minutes) - normal (2~3 minutes), 5 cycles
+40 °C, 90~95 % RH, 1000 hours,
1.5 hours ON, 0.5 hours OFF
+70 °C, 1000 hours,
1.5 hours ON, 0.5 hours OFF
3 ppm H2S, +50 °C, 90~95 % RH, 100 hours
Chip
Resistor
Size
• 0402
Tolerance
• F=1%
• J=5%
TCR (ppm/°C)
• X = ±100
• W = ±200
• / = N/A (for Jumper)
Resistance Code
• For 1 % Tolerance
<100 ohms:
“R” designates decimal point
(example: 24R3 = 24.3 ohms)
≥100 ohms:
First three digits are significant,
fourth digit represents number of
zeros to follow
(example: 8252 = 82.5K ohms)
• For 5 % Tolerance
<10 ohms:
“R” designates decimal point
(example: 4R7 = 4.7 ohms)
≥10 ohms:
First two digits are significant,
third digit represents number of
zeros to follow
(example: 474 = 470K ohms;
000 = Zero-ohm jumper)
Packaging
• G = Paper Tape
(10,000 pcs. on 7-inch plastic reel)
Special Characteristics
• AS = Sulfur-resistant, Tin-plated terminations
(RoHS compliant)
CR 0402 - F X - 1002 G AS
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
Construction
Resistor (Ru0
2
)
(Jumper chip is
a conductor)
Overcoat
NOTE: Zero-ohm jumper ≤100 milliohms.
Soldering Profile
275
<1>
Maximum of 20 seconds between
+255 °C and +260 °C
260 °C peak
<1>
255 °C
Alumina Substrate
Internal Electrode
Secondary Electrode (Nickel Plated)
60 - 90
seconds
Ramp Down
6 °C/second
225
Temperature (°C)
220 °C
190 °C
175
150 °C
External Electrode (Sn)
125
WARNING Cancer and Reproductive Harm
60 - 120 seconds
10 seconds minimum
www.P65Warnings.ca.gov
75
Ramp Up
3 °C/second maximum
25
0
50
100
150
200
250
300
Time (Seconds)
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their
specific applications.
The products described herein and this document are
subject to specific legal disclaimers as set forth on the
last page of this document, and at www.bourns.com/
docs/legal/disclaimer.pdf.
