B065-0093-246-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B065-0093-246-Z

B065-0093-246-Z: DescriptionBoard Connector, 9 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size250KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B065-0093-246-Z Overview

Board Connector, 9 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

B065-0093-246-Z Parametric

Parameter Name	Attribute value
Objectid	304395551
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.295 inch
subject depth	0.535 inch
body length	0.32 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.191 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

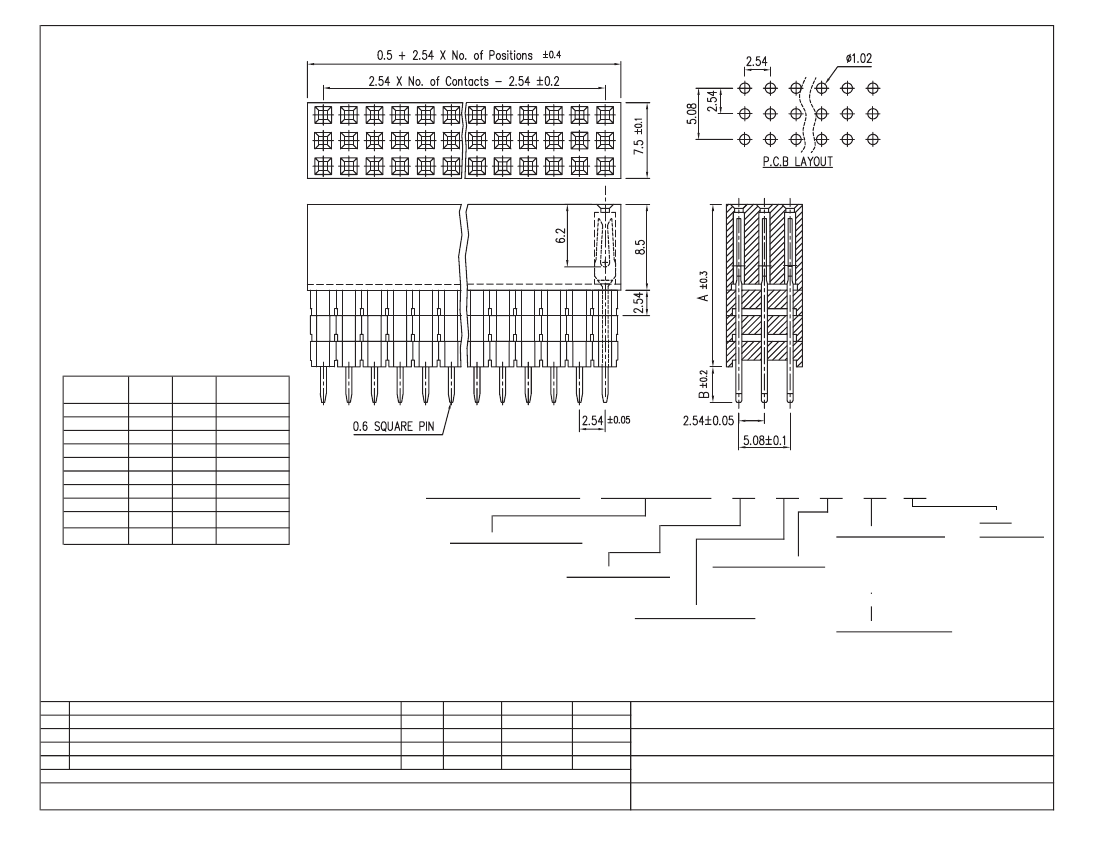

DIMENSION(mm)

DIMENSION

NUMBER

11.05

13.59

16.13

18.67

11.05

16.13

2.30

7.35

12.20

4.85

9.65

2.30

7.10

4.60

2.90

3.50

NUMBER

OF STACKS

NOTE:

4 STACK PART SHOWN

HOW TO ORDER:

ELECTRICAL:

CURRENT RATING: 3A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 5000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

CONTACT: PHOSPHOR BRONZE

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

RoHS

COMPLIANT

PLATING OVERALL:

NUMBER OF CONTACTS:

0 - FULL TIN

DOUBLE 009 thru 120

DIMENSION NUMBER:

1 - FULL Au FLASH

NUMBER OF ROWS:

3 - 10u" Au

SEE DIMENSION

3 - TRIPLE ROW

4 - 15u" Au

NUMBER TABLE

5 - 30u" Au

NUMBER OF STACKS:

SELECTIVE PLATING:

0 - RIGHT ANGLE

6 - Au FLASH CONTACT AREA/TIN TAIL

1 - ONE

7 - 10u" Au CONTACT AREA/TIN TAIL

2 - TWO

8 - 15u" Au CONTACT AREA/TIN TAIL

3 - THREE

9 - 30u" Au CONTACT AREA/TIN TAIL

4 - FOUR

Drawn Checked

S.M.

A.M.

B.S.

S.M.

Appproved

S.M.

Date

11/06/03

12/15/06

SMP TECHNOLOGY, INC.

Elevated Stacked Receptacle Assembly, 2.54mm Pitch, Triple Row, Thru Hole

Top Entry,(11.05mm - 18.67mm Stacking Height)

ANGLE +/-

UNIT: mm

P/N: B065-XXX3-XXX-Z

Pg: 1
