B065-0165-136-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> B065-0165-136-Z

B065-0165-136-Z: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle; CategoryThe connector The connector; File Size219KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B065-0165-136-Z Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle

B065-0165-136-Z Parametric

Parameter Name	Attribute value
Objectid	304395591
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT, WITH PRESS FIT
body width	0.197 inch
subject depth	0.433 inch
body length	0.82 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Terminal length	0.476 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	16

Preview

Download Datasheet

View All

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE: < 20m

Ω

INSULATOR RESISTANCE: > 5000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500V AC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

DOUBLE 006 thru 080

NUMBER OF ROWS:

5 - DOUBLE ROW PRESS FIT

NUMBER OF STACKS:

0 - RIGHT ANGLE

1 - ONE

2 - TWO

3 - THREE

4 - FOUR

Drawn Checked

S.M.

A.M.

B.S.

S.M.

Date

Appproved

S.M.

28/01/04

S.M.

12/15/06

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

STANDARD: Nylon-6T

CONTACT: PHOSPHOR BRONZE

Rev

Issued

A Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

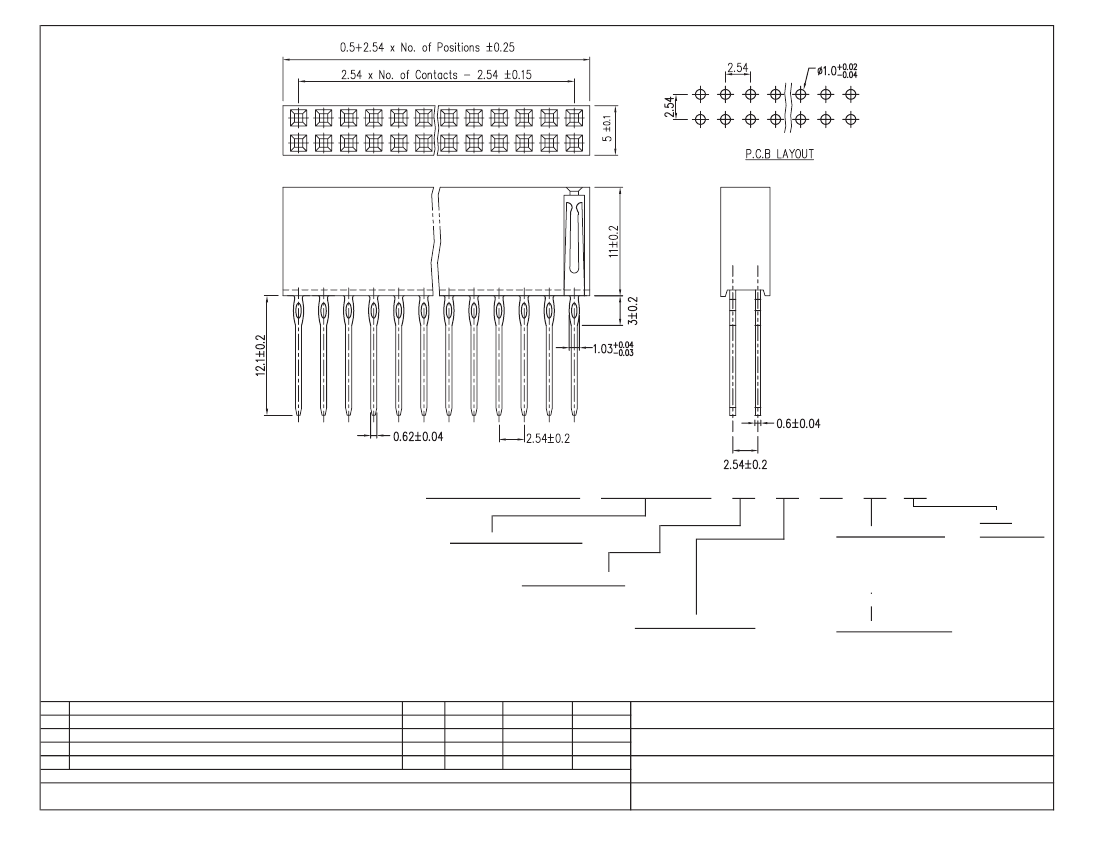

SMP TECHNOLOGY, INC.

Receptacle Assembly, 2.5mm Pitch, Double Row, Vertical, Press Fit

11.0mm Height, 12.0mm Tail, PC104 - Plus

P/N: B065-XXX5-13X-Z

Pg: 1
