S2512EBX6040F30 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> S2512EBX6040F30

S2512EBX6040F30: DescriptionFixed Resistor, Metal Glaze/thick Film, 50W, 604ohm, 200V, 1% +/-Tol, 300ppm/Cel, 2512,; CategoryPassive components The resistor; File Size89KB，1 Pages; ManufacturerState of the Art Inc.

Download Datasheet Parametric View All

S2512EBX6040F30 Overview

Fixed Resistor, Metal Glaze/thick Film, 50W, 604ohm, 200V, 1% +/-Tol, 300ppm/Cel, 2512,

S2512EBX6040F30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	837869623
Reach Compliance Code	not_compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	7.6
structure	Chip
JESD-609 code	e0
Number of terminals	2
Package height	1.016 mm
Package length	6.35 mm
Package form	SMT
Package width	3.175 mm
method of packing	Waffle Pack
Rated power dissipation(P)	50 W
Guideline	MIL-PRF-55342
resistance	604 Ω
Resistor type	FIXED RESISTOR
series	S2512(F TOL)
size code	2512
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	300 ppm/°C
Terminal surface	Tin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Tolerance	1%
Operating Voltage	200 V

S2512EBX6040F30 Preview

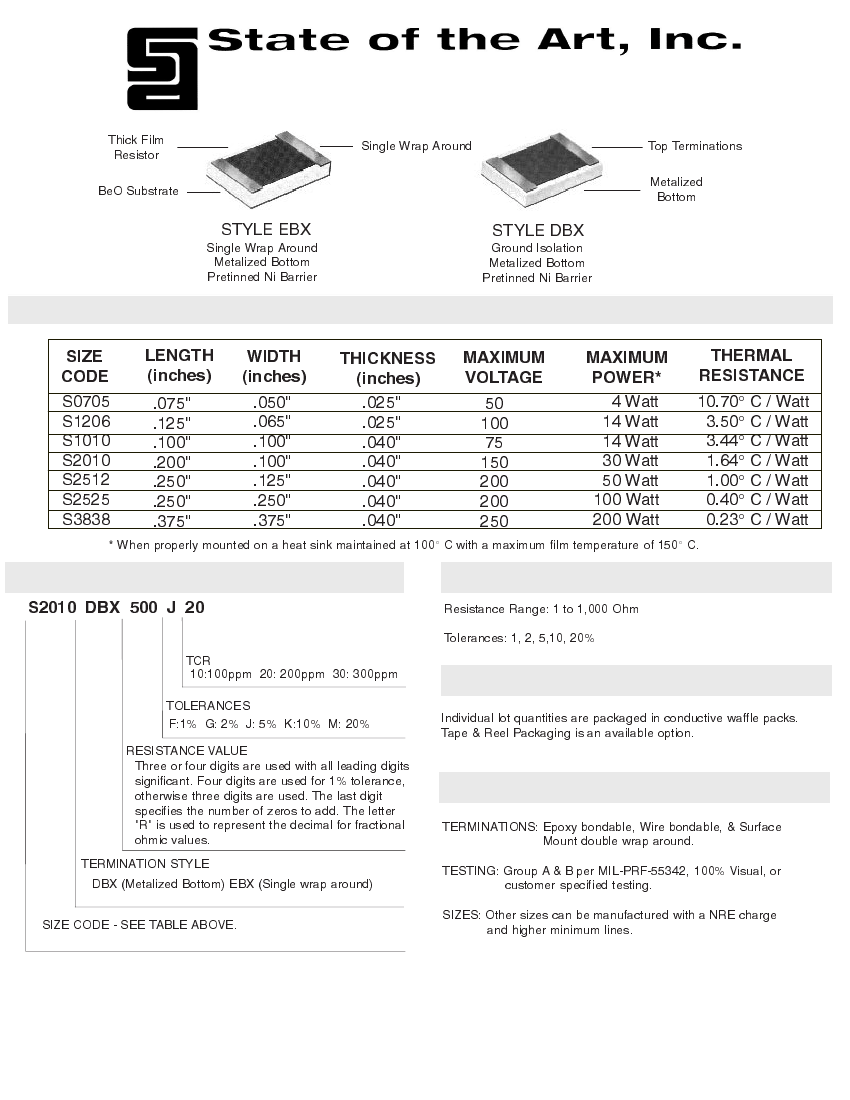

High Power Solderable Chip Resistors

Thick Film on BeO

Thick Film

Resistor

Single Wrap Around

Top Terminations

BeO Substrate

Metalized

Bottom

STYLE EBX

Single Wrap Around

Metalized Bottom

Pretinned Ni Barrier

STYLE DBX

Ground Isolation

Metalized Bottom

Pretinned Ni Barrier

SIZES

SIZE

CODE

LENGTH

(inches)

WIDTH

(inches)

and

THICKNESS

(inches)

RATINGS

MAXIMUM

VOLTAGE

MAXIMUM

POWER*

THERMAL

RESISTANCE

S0705

S1206

S1010

S2010

S2512

S2525

S3838

.075"

.125"

.100"

.200"

.250"

.375"

.050"

.065"

.100"

.125"

.250"

.375"

.025"

.040"

100

150

200

250

4 Watt

14 Watt

30 Watt

50 Watt

100 Watt

200 Watt

10.70

C / Watt

3.50

C / Watt

3.44

C / Watt

1.64

C / Watt

1.00

C / Watt

0.40

C / Watt

0.23

C / Watt

* When properly mounted on a heat sink maintained at 100

C with a maximum film temperature of 150

PART NUMBERING

S2010 DBX 500 J 20

TOLERANCE & RANGE

Resistance Range: 1 to 1,000 Ohm

Tolerances: 1, 2, 5,10, 20%

TCR

10:100ppm 20: 200ppm 30: 300ppm

TOLERANCES

F:1% G: 2% J: 5% K:10% M: 20%

RESISTANCE VALUE

Three or four digits are used with all leading digits

significant. Four digits are used for 1% tolerance,

otherwise three digits are used. The last digit

specifies the number of zeros to add. The letter

"R" is used to represent the decimal for fractional

ohmic values.

TERMINATION STYLE

DBX (Metalized Bottom) EBX (Single wrap around)

PACKAGING

Individual lot quantities are packaged in conductive waffle packs.

Tape & Reel Packaging is an available option.

OPTIONS

TERMINATIONS: Epoxy bondable, Wire bondable, & Surface

Mount double wrap around.

TESTING: Group A & B per MIL-PRF-55342, 100% Visual, or

customer specified testing.

SIZES: Other sizes can be manufactured with a NRE charge

and higher minimum lines.

SIZE CODE - SEE TABLE ABOVE.

STATE OF THE ART, INC.

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004 Fax (814) 355-2714

Toll Free 1-800-458-3401

Where Quality Isn't a Goal...It's Our Tradition

10/01/97

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
