DA15-PL-25-F-30 datasheet, PDF

DA15-PL-25-F-30: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerAdam Tech

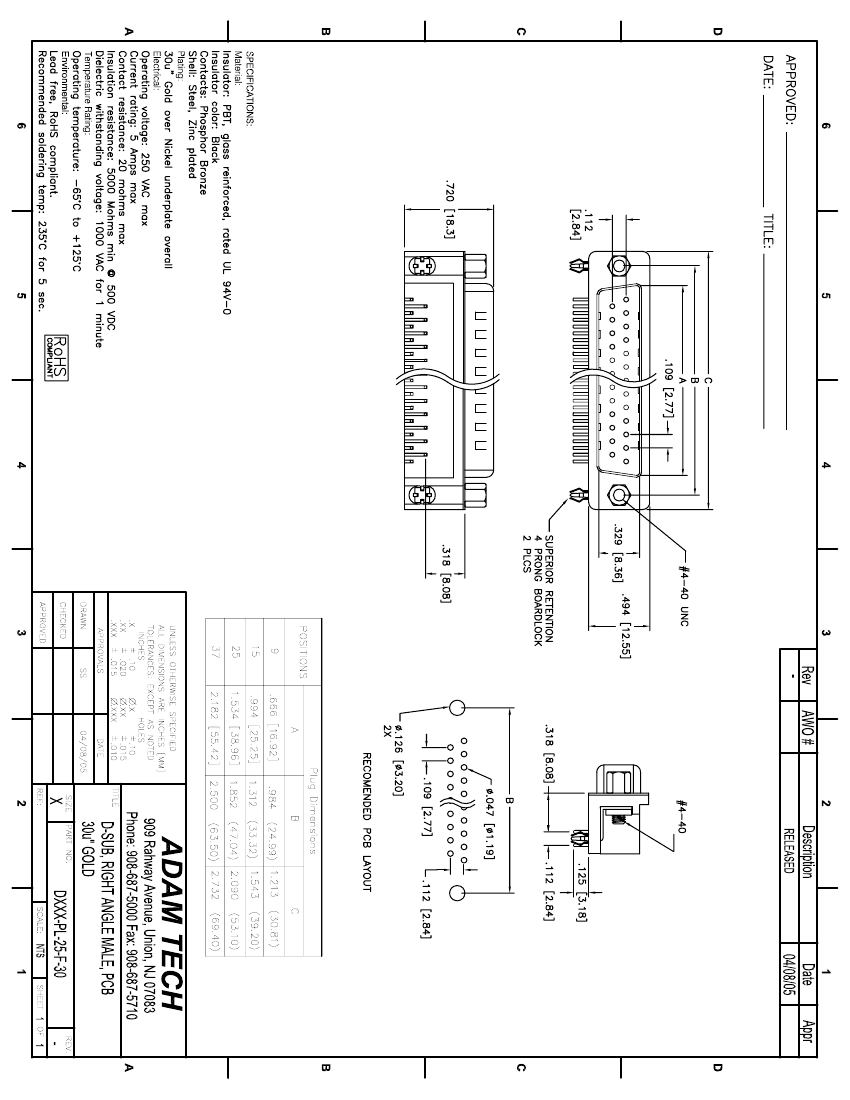

Download Datasheet Parametric View All

DA15-PL-25-F-30 Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

Parameter Name	Attribute value
Objectid	304917647
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
Other features	ROHS, W/REMOVABLE JACKSCREWS
body width	0.494 inch
subject depth	0.488 inch
body length	1.543 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
Shell surface	ZINC
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
