DMW-22: DescriptionBoard Connector, 22 Contact(s), Female, Straight, Crimp Terminal, Locking; CategoryThe connector The connector; File Size581KB，4 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DMW-22 Overview

Board Connector, 22 Contact(s), Female, Straight, Crimp Terminal, Locking

DMW-22 Parametric

Parameter Name	Attribute value
Objectid	315577153
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
body width	0.272 inch
subject depth	0.673 inch
body length	1.449 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P22
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Guideline	UL, CSA
Termination type	CRIMP
Total number of contacts	22

DMW-22 Preview

WIRE TO BOARD cONNEcTORS

.118" [3.00] & .165" [4.20] CENTERLINES

DMX SERIES

INTRODucTION:

Adam Tech DMH & DMF Series Power Connectors consist of a

receptacle and plug set in a variety of single and multiple row

configurations with 165" centerlines. They are manufactured of

Nylon 6/6 with a flammability rating of UL94V-2 or UL94V-0. This

series is designed as a mated set with a PCB mounted header and a

wire mounted socket which securely latches to header when mated.

Our specially designed bodies provide polarization to eliminate

mismating and our latching system resists heavy vibration. PCB

mounted headers have molded pegs which align and brace the PCB

tails for trouble free assembly and use.

FEATuRES:

High current rating

Polarized and Positive locking

Vibration resistant

Compatible with Wide Range of wires

Industry standard compatible

SPEcIFIcATIONS:

Material:

Insulator: Nylon 66, rated UL94V-2

Insulator Color: Natural or Black

Contacts: Brass, tin plated

Electrical:

Operating voltage: 300V AC / DC max.

Current Rating: 5 Amps max

Insulation resistance: 1000 MΩ min.

Dielectric withstanding voltage: 1500V AC for 1 minute

Temperature Rating:

Operating temperature: -25°C to +85°C

PAckAGING:

Anti-ESD plastic bags

SAFETy AGENcy APPROvAlS:

UL Recognized & CSA Certified, File no. E224053

ORDERING INFORMATION

FEMAlE WIRE HOuSING

DMH

SERIES INDIcATOR

DMH

= 4.2mm Pitch

DMW

= 3.0mm Pitch

DMu

= 3.0mm Pitch

DMT

= 3.0mm Pitch

DMl

= 3.0mm Pitch

POSITIONS

02 THRU 24

ORDERING INFORMATION

MAlE PcB HOuSING

DMF

SERIES

INDIcATOR

DMF

= PCB Male

POSITIONS

02 THRu 24

(Evenly numbered)

FlANGES

(RIGHT ANGlE ONly)

BlANk

= Straight Type

= With Flange

(Right Angle

Only)

= Without Flange

MOuNTING

= Straight PCB Mount

= Right Angle PCB Mount

= Crimp Housing

OPTIONS:

Add designator(s) to end of part number

= PCB Peg

360

www.adam-tech.com

WIRE TO BOARD cONNEcTORS

.118" [3.00] & .165" [4.20] CENTERLINES

DMX SERIES

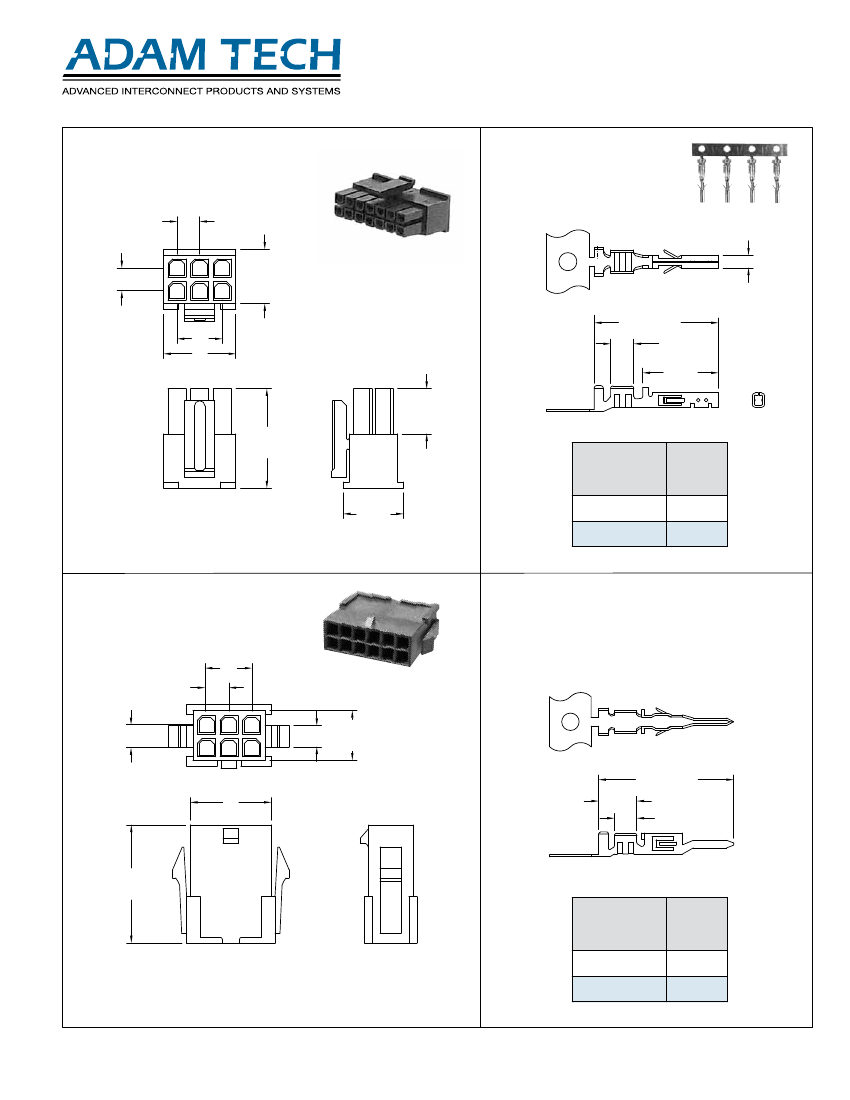

DMT CRiMp HouSing

DMT CRiMp ConTACT

.118

[3.00]

DMT-A-c-F-T-R

DMT-14

.118 [3.00]

.272

[6.90]

.043 [1.10]

.437 [11.10]

.083

[2.10]

.264

[6.70]

.256

[6.50]

.559

[14.20]

PART #

WIRE

AWG

26 - 30

20 - 24

DIMENSIONS

A = .118 [3.00] X No. of Positions /2 - 1

B = .118 [3.00] X No. of Positions /2 + .151 [3.85]

.327

[8.30]

DMT-A-C-F-T-R

DMT-B-C-F-T-R

DMu CRiMp HouSing

DMu CRiMp ConTACT

.118 [3.00]

DMW-12

.118 [3.00]

.140

[3.60]

.272

[6.90]

.496 [12.60]

.138

[3.50]

.081

[2.05]

.673

[17.10]

PART #

WIRE

AWG

26 - 30

20 - 24

DMT-A-C-M-T-R

DIMENSIONS

A = .118 [3.00] X No. of Positions /2 - 1

B = .118 [3.00] X No. of Positions /2 + .151 [3.85]

DMT-B-C-M-T-R

www.adam-tech.com

361

WIRE TO BOARD cONNEcTORS

.118" [3.00] CENTERLINES

DMX SERIES

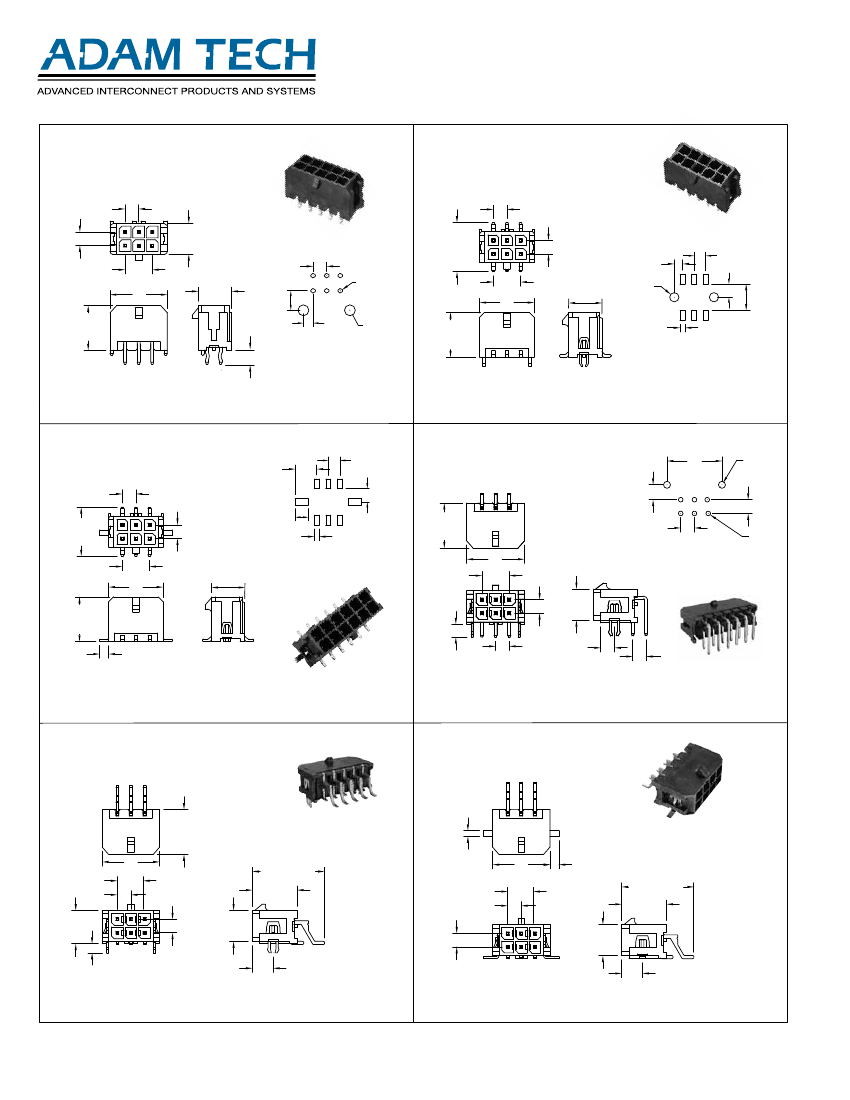

DML-xx-V-T

vERTIcAl THRu HOlE MOuNT

DML-xx-V-T-SMT-BL

vERTIcAl SMT W/BOARDlOckS

.118 [3.00]

.390

[9.90]

.291

[7.40]

.170

[4.32]

.084 [2.15]

.270

[6.85]

.118 [3.00]

DMl-10-v-T

.118 [3.00]

Ø.040

[1.02]

Ø.095

[2.41]

DMl-10-v-T-SMT-Bl

.445

[11.30]

.390

[9.90]

.118

[3.00]

.085

[2.15]

.118 [3.00]

.135 [3.43]

.289 [7.35]

Ø.095

[2.41]

.050

[1.27]

.270

[6.86]

Recommended

PcB layout

Replace (XX) with no. of positions

.126 [3.20]

A = .118 [3.00] X No. of Positions /2 - 1

B = .118 [3.00] X No. of Positions /2 + .145 [3.70]

Replace (XX) with no. of positions

A = .118 [3.00] X No. of Positions /2 - 1

B = .118 [3.00] X No. of Positions /2 + .145 [3.70]

Recommended

PcB layout

DML-xx-V-T-TSMT

vERTIcAl TRuE SMT

.118 [3.00]

.445

[11.30]

.390

[9.90]

.079 [2.00]

.118

[3.00]

.135

[3.43]

.221

[5.61]

.118

[3.00]

.135

[3.43]

DML-xx-H-T-BL

RIGHT ANGlE THRu HOlE

.170

[4.32]

.390

[9.90]

.270

[6.85]

.079

[2.00]

.118 [3.00]

.118

[3.00]

.181

[4.60]

.118 [3.00]

Ø.039

[1.00]

.118 [3.00]

Ø.039

[1.00]

.050 [1.27]

.289 [7.35]

Recommended

PcB layout

Recommended

PcB layout

DMl-12-H-T-Bl

Replace (XX) with no. of positions

A = .118 [3.00] X No. of Positions /2 - 1

B = .118 [3.00] X No. of Positions /2 + .145 [3.70]

DMl-12-v-T-TSMT

Replace (XX) with no. of positions

A = .118 [3.00] X No. of Positions /2 - 1

B = .118 [3.00] X No. of Positions /2 + .145 [3.70]

DML-xx-H-T-SMT-BL

RIGHT ANGlE SMT W/BOARDlOckS

DML-xx-H-T-TSMT

RIGHT ANGlE TRuE SMT

.390

[9.90]

.118

[3.00]

.289

[7.35]

.118

.134 [3.40]

Replace (XX) with no. of positions

A = .118 [3.00] X No. of Positions /2 - 1

B = .118 [3.00] X No. of Positions /2 + .145 [3.70]

DMl-10-H-T-SMT-Bl

.050

[1.27]

.079

[2.00]

DMl-08-H-T-TSMT

.606 [15.40]

.390

[9.90]

.606 [15.40]

.118

[3.00]

.289

[7.35]

.181 [4.60]

.390

[9.90]

.289

[7.35]

.118 [3.00]

.181 [4.60]

Replace (XX) with no. of positions

A = .118 [3.00] X No. of Positions /2 - 1

B = .118 [3.00] X No. of Positions /2 + .145 [3.70]

362

www.adam-tech.com

WIRE TO BOARD cONNEcTORS

.165" [4.20] CENTERLINES

DMX SERIES

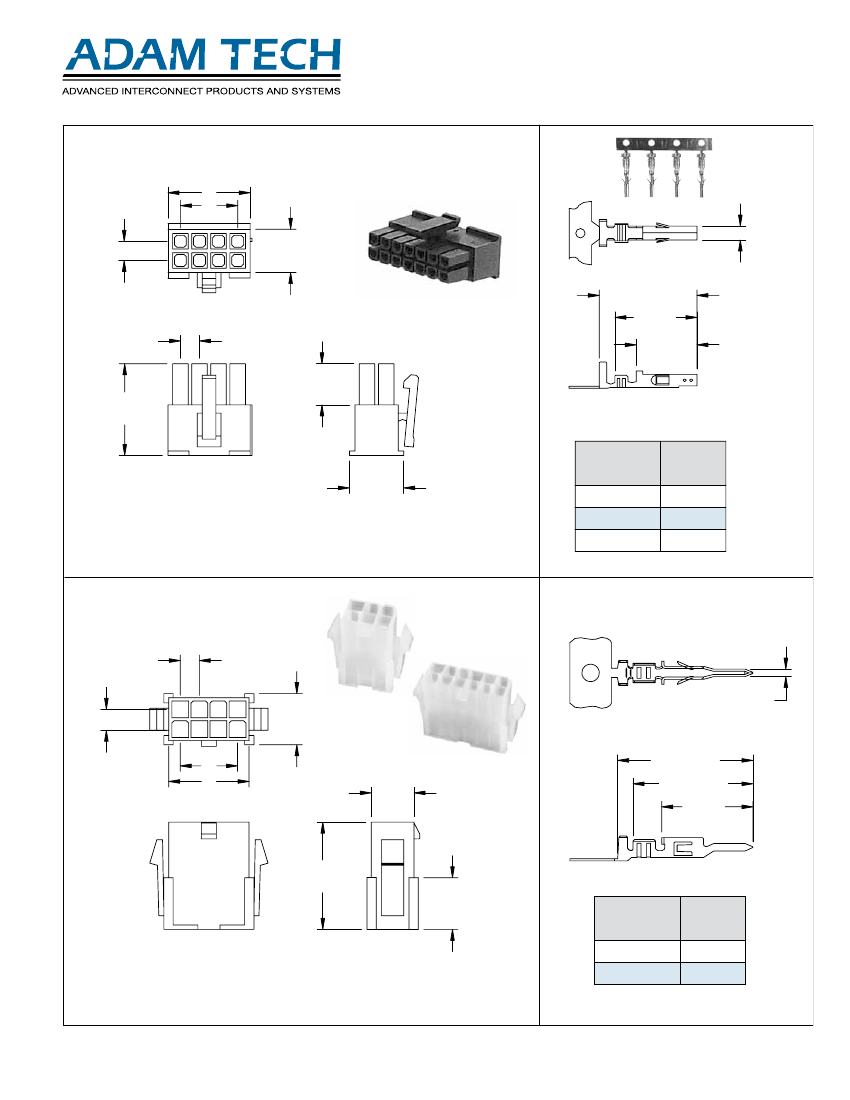

DMH

cRIMP HOuSING

.067 [1.70]

.165 [4.20]

.374 [9.50]

DMH-12

.583 [14.80]

.492

[12.50]

.366

[9.30]

.165 [4.20]

.354

[9.00]

.775

[19.70]

DMH cRIMP cONTAcT

PART #

.456

[11.60]

DIMENSIONS:

A = .165 [4.20] X No. of Position /2 -1

B = .165 [4.20] X No. of Positions / 2 + .055 [1.40]

DMH-A-C-F-R

DMH-B-C-F-R

DMH-C-C-F-R

WIRE

AWG

22 ~ 24

18 ~ 22

16 ~ 18

DMF

cRIMP HOuSING

.165

[4.20]

.043

[1.10]

.165 [4.20]

.456

[11.60]

DMF-06-W

DMF-12-W

.378

[9.60]

.661 [16.80]

.570 [14.50]

.454

[11.55]

.944

[24.00]

.472

[12.00]

DMF cRIMP cONTAcT

WIRE

AWG

22 ~ 24

18 ~ 22

PART #

DMF-A-C-M-R

DIMENSIONS:

A = .165 [4.20] X No. of Position /2 -1

B = .165 [4.20] X No. of Positions / 2 + .055 [1.40]

DMF-B-C-M-R

www.adam-tech.com

363
