517-91-391-18-101-111: Descriptionpin grid array sockets and carrier with interstitial contact rows solder tail; File Size53KB，1 Pages; ManufacturerPRECI-DIP; Websitehttp://www.precidip.com/en/index.html

Download Datasheet Compare View All

517-91-391-18-101-111 Overview

pin grid array sockets and carrier with interstitial contact rows solder tail

Preview

Download Datasheet

View All

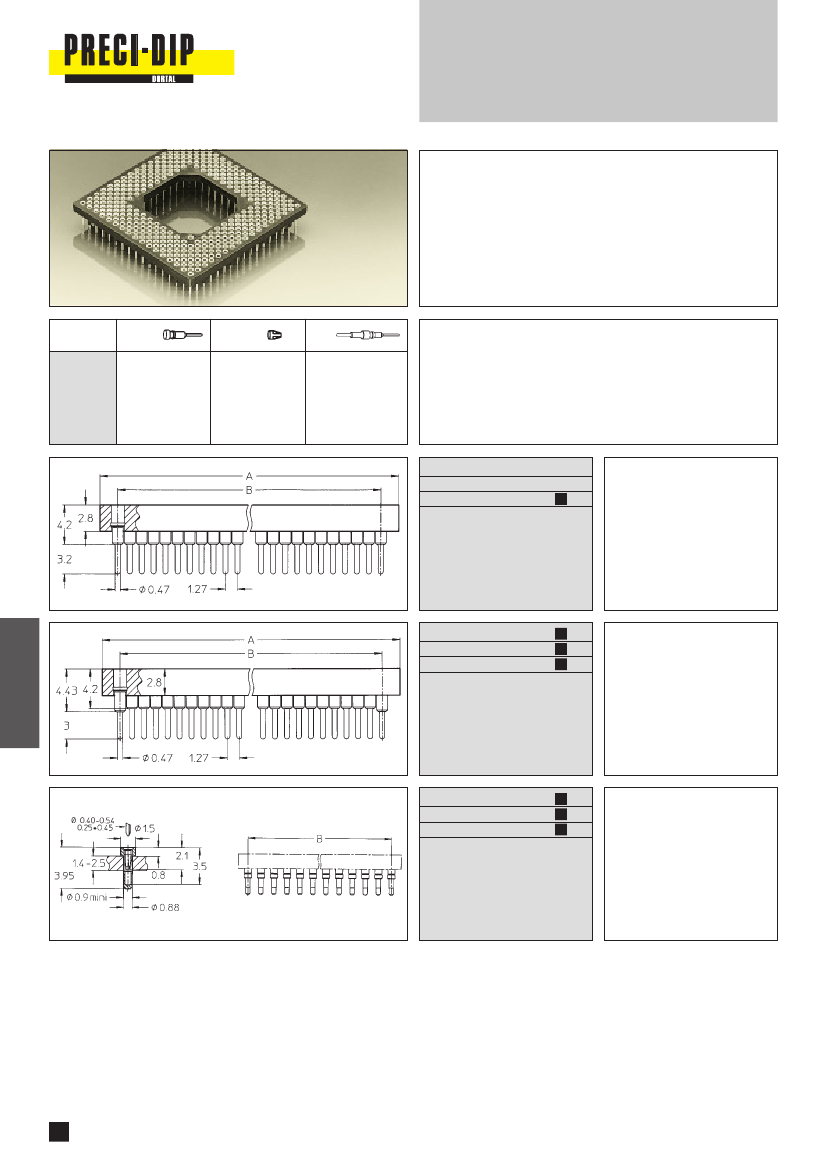

Series 517 / 614

Pin grid array sockets and carrier

with interstitial contact rows

Solder tail

Pin grid array sockets with interstitial contact rows

These sockets of a very compact design have interstitial contact

rows with a staggered contact arrangement and row distances

of 1.27 mm. Their contact density is nearly double as compared

to PGAs based on a standard 2.54 mm grid pattern

They are equipped with machined precision contacts with extra-

soft contact clips assuring low insertion/withdrawal forces

Insertion characteristics: 6-finger very low

Platings

Sleeve

µm

Clip

0.25

µm

0.75

µm

Goldflash

Ordering information

Replace

xxx-xx-xxx

with number of poles, body size and

layout numbers as indicated on pages 91 and 92. For example,

a 18×18 pin configuration with 17×17 interstitial rows and

standard soldering tails becomes: 517-93-391-18-101111

Options:

For other sizes and layouts please consult

517-91-xxx-xx-xxx-111

517-93-xxx-xx-xxx-111

517-97-xxx-xx-xxx-111

PGA sockets with interstitial rows

and standard solder tails, length

3.2 mm

517-91-xxx-xx-xxx-111

517-93-xxx-xx-xxx-111

517-97-xxx-xx-xxx-111

Interstitial PGA socket with

standard solder tails and 4 ele-

vating contacts located at the

corners for better soldering and

cleaning

Add 50 to the fourth group of

figures in standard reference

number, e.g.

517-93-391-18-101111 becomes

517-93-391-68-101111

614-91-xxx-xx-xxx-144

614-93-xxx-xx-xxx-144

614-97-xxx-xx-xxx-144

PGA carrier socket with dispos-

able plastic body and carrier pins.

Low profile ultra thin contacts are

plugged-on

Solder terminations

∅

0.88 mm

total length of contact 3.9 mm

Requires

∅

min. 0.9 mm holes in

PCB

Products not available from stock. Please consult PRECI-DIP.
