ELR101K10A5X11T2 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> ELR101K10A5X11T2

ELR101K10A5X11T2: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 10% +Tol, 10% -Tol, 100uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size153KB，1 Pages; ManufacturerHitano Enterprise Corp; Environmental Compliance

Download Datasheet Parametric View All

ELR101K10A5X11T2 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 10% +Tol, 10% -Tol, 100uF, Through Hole Mount, RADIAL LEADED

ELR101K10A5X11T2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1240312744
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.5
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.004 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	AMMO PACK
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	10 V
ripple current	116 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	NOT SPECIFIED
Terminal shape	WIRE

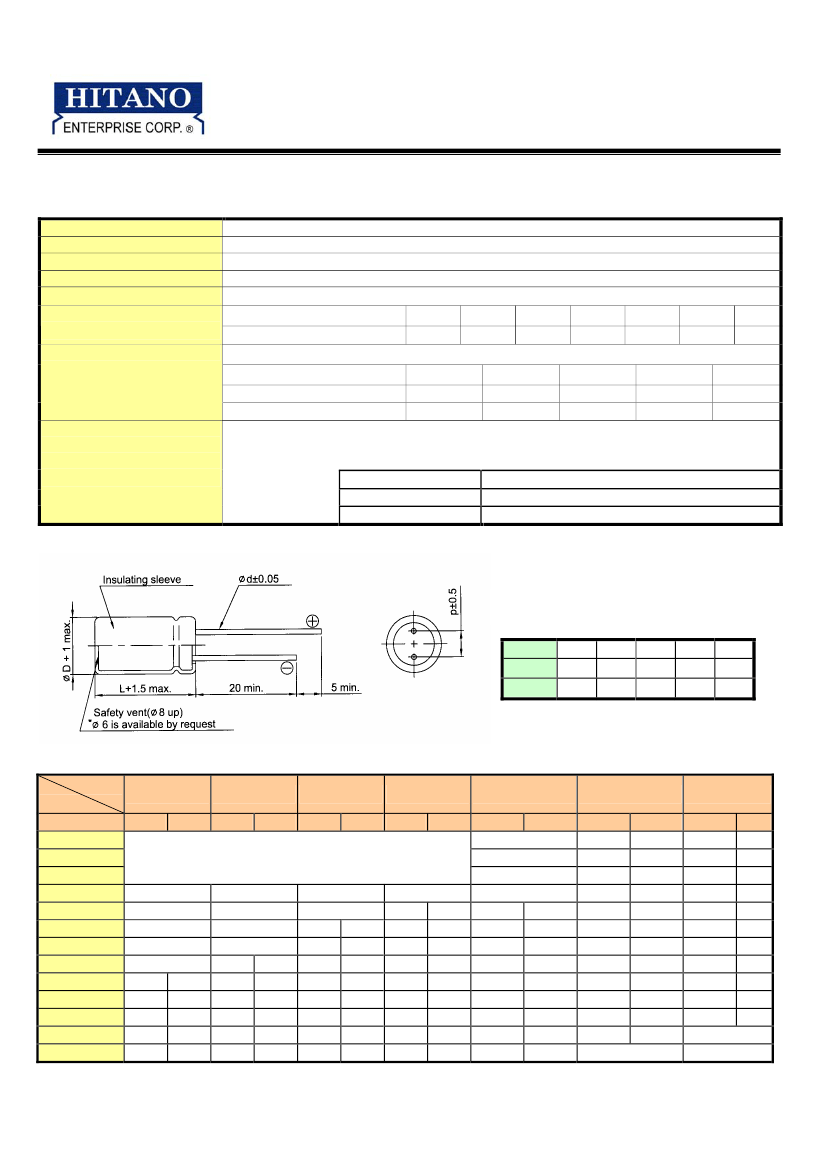

ELR101K10A5X11T2 Preview

ELR

SERIES

ELR Series is developed for use where Low Leakage current is essential for as coupling of pre‐amplifiers, Leakage

current remains very low even after prolonged storage.

Characteristics

6.3 ~ 63V

0.47 ~ 1000uF

-40 ~ + 105

℃

I = 0.002CV or 0.4uA, whichever is greater (After 3 minutes)

±20%

at 120Hz , 20

℃

( 10% Tol. is available upon request)

6.3

Dissipation Factor( tanδ)max

0.24

0.20

0.17

0.15

0.12

Stability at Low Temperature

Impedance ration at 120Hz

Voltage Range

Capacitance Range

Temperature Range

Leakage Current

Capacitance Tolerance

Dissipation Factor

(at 120Hz 20℃)

0.1

Rated Voltage (V)

6.3-10

25-35

Z-25

℃

/Z 20

℃

Z-40

℃

/Z 20

℃

The following specifications shall satisfied when the capacitors are restored to 20

℃

after rated

Load Life

(after application of the rated

working voltage applied for 1,000 hours at max. Operating temperature with the rated ripple

voltage with ripple current

current applied.

for 1000 hrs at 105℃)

Capacitance change

Within

±20%

of initial value.

Dissipation factor

200% or less of initial specified value

Leakage current

Less than initial specified value

Drawing

Dψ

dψ

2.0

0.5

6.3

2.5

0.5

3.5

0.5

5.0

0.6

5.0

0.6

Case Size and Maximum Ripple Current of Standard Products

Cap.

0.47‐1

2.2

3.3

4.7

100

220

330

470

1000

6.3

DxL

ψDxL(mm)

(mA, rms, 120HZ at 105

℃)

→

DxL

5x11

6.3x11

8x12

10x13

10x21

13x21

13x25

13.2

828

138

198

380

506

671

DxL

5x11 13.2

5x11

6.3x11 55

6.3x11 91

8x12 110

10x13 149

10x16 248

13x21 440

13x26 594

All blank voltage on sleeve marking

is same as “→“ point to

→

5x11

6.3x11

8x12

10x12

100

180

220

280

500

5x11

6.3x11

8x12

10x16

116

193

270

319

605

5x11

6.3x11

8x12

10x13

10x21

138

237

286

407

704

5x11

6.3x11

8x12

10x13

10x16

13x21

116

149

253

369

484

847

5x11

6.3x11

8x12

10x16

10x21

13x21

13x26

121

187

330

440

572

1012

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
