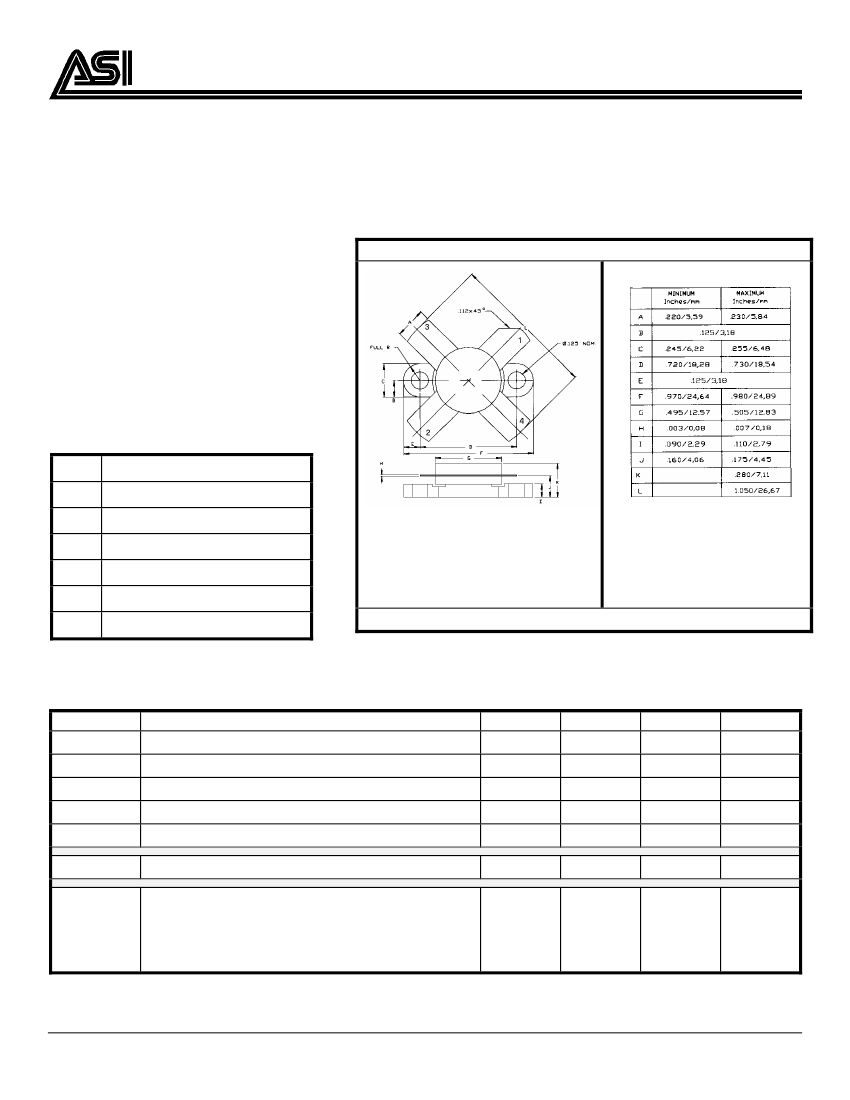

BLW77

NPN SILICON RF POWER TRANSISTOR

DESCRIPTION:

The

ASI BLW77

is Designed for use in

class-AB or class-B operated high power

transmitters in the H.F. and V.H.F bands

and, as a Linear amplifier in the H.F.

band.

PACKAGE STYLE .500 4L FLG

FEATURES:

•

P

G

= 12 dB min. at 15-30 W/1.6-28 MHz

•

Common Emitter

•

Omnigold™

Metalization System

MAXIMUM RATINGS

I

C

V

CB

V

CE

P

DISS

T

J

T

STG

θ

JC

12 A

70 V

35 V

245 W @ T

C

= 25 °C

-65 °C to +200 °C

-65 °C to +150 °C

0.71 °C/W

1 = COLLECTOR

2 = BASE

3 & 4 = EMITTER

CHARACTERISTICS

SYMBOL

BV

CEO

BV

CES

BV

EBO

I

CES

h

FE

C

c

G

P

d

3

η

I

C

= 50 mA

I

E

= 20 mA

V

E

= 35 V

T

C

= 25 °C

NONETEST

CONDITIONS

I

C

= 100 mA

MINIMUM TYPICAL MAXIMUM

35

70

3.0

20

UNITS

V

mA

---

pF

dB

V

CE

= 5.0 V

V

CB

= 28 V

I

C

= 7.0 A

f = 1.0 MHz

15

225

12

80

V

CE

= 28 V

I

C(ZS)

= 0.1 A

f = 1.6-28 MHz

P

L

= 15-130 W (PEP)

-30

37.5

dB

%

A D V A N C E D S E M I C O N D U C T O R, I N C.

7525 ETHEL AVENUE

•

NORTH HOLLYWOOD, CA 91605

•

(818) 982-1200

•

FAX (818) 765-3004

Specifications are subject to change without notice.

REV. B

1/1
