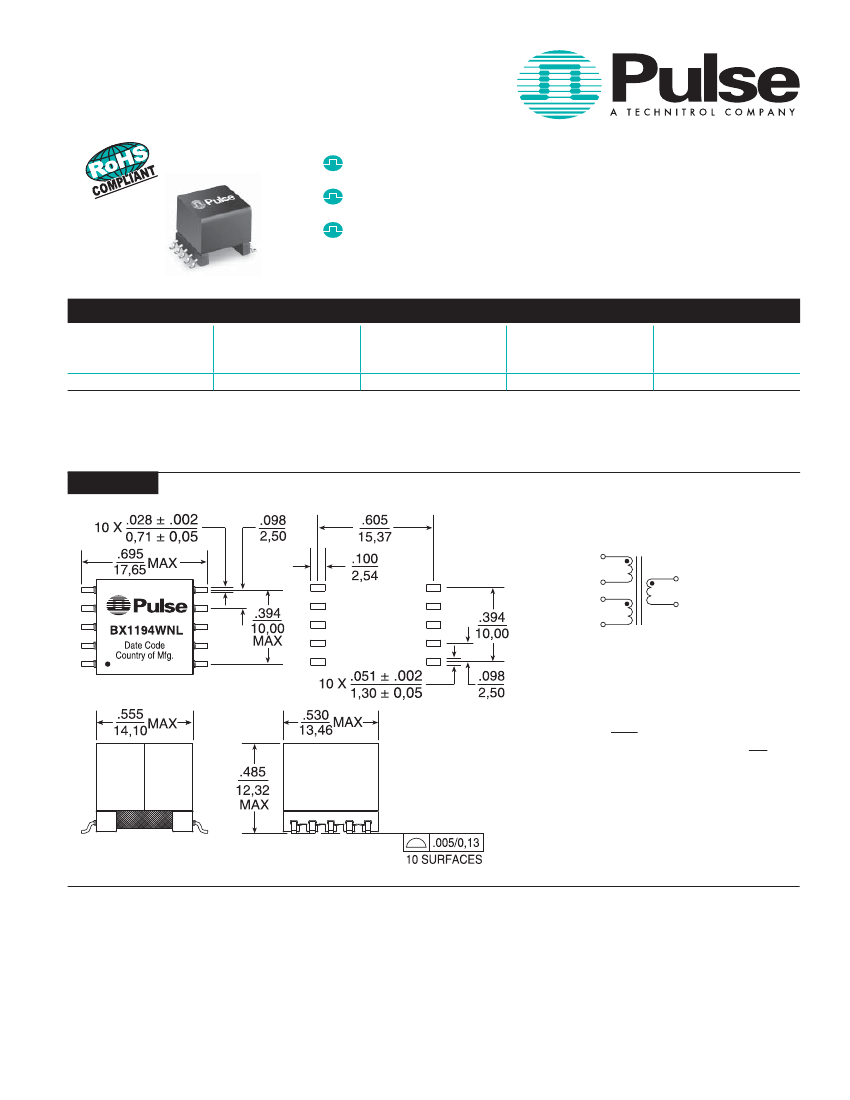

SHDSL LINE TRANSFORMERS
For use with Infineon Chipset
Matched to Infineon PEF24624, Socrates Bis 16 Chipset
Excellent THD performance with bias current
Designed to meet UL, CSA and EN60950 requirements
for supplementary insulation and 250 V working voltage
Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C
Part Number
BX1194WNL*
OCL Line
(mH ±6%)
3.0
Turns Ratio
(line:chip) (line:sense)
4.5:1
Isolation Voltage
(Vrms)
1500
THD @ 3 kHz
1Vrms, 35 mA
(dB MIN)
-76
*Available in Tape & Reel packaging. When ordering, put the suffix “T” at the end of the part number, for example, BX1194NLT
Mechanical
BX1194WNL
Schematic
1
Primary
4
(Line)
2
5
4.5:1:1
9
Secondary
(Chip)
7
Weight
...................... 6.2 grams
Tape & Reel
................. 150/reel
Tray/Tube
...................... 60/tray
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
For More Information:
Pulse Worldwide
Headquarters
12220 World Trade Dr.
San Diego, CA 92128
U.S.A.
www.pulseeng.com
Tel: 858 674 8100
Fax: 858 674 8262
Pulse Europe
Zeppelinstrasse 15
D-71083 Herrenberg
Germany
Pulse China Headquarters Pulse North China
Room 2704/2705
Super Ocean Finance
Ctr.
2067 Yan An Rd. West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia Pulse North Asia
135 Joo Seng Rd.
#03-02
PM Industrial Bldg.
Singapore 368363
3F, No. 198
Zhongyuan Rd.
Zhongli City
Taoyuan County 320
Taiwan R. O. C.
Tel: 886 3 4356768
Fax: 886 3 4356823
(Pulse)
Fax: 886 3 4356820
(FRE)
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Rd.
High-Tech Zone
Nanshan District
Shenzen, PR China 518057
Tel: 49 7032 7806 0
Tel: 86 755 33966678
Fax: 49 7032 7806 135 Fax: 86 755 33966700
Tel: 65 6287 8998
Fax: 65 6287 8998
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product
names mentioned herein may be trademarks or registered trademarks of their respective owners.
© Copyright, 2010. Pulse Engineering, Inc. All rights reserved.
www.pulseeng.com
B835.B 5/10)
