RV202YN15SC155

Description
Potentiometer, Carbon Film, 0.125W, 1500000ohm, 10% +/-Tol, 1 Turn(s), ROHS COMPLIANT
CategoryPassive components    The resistor
File Size2MB,4 Pages
ManufacturerTokyo Cosmos Electric Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

RV202YN15SC155 Overview

Potentiometer, Carbon Film, 0.125W, 1500000ohm, 10% +/-Tol, 1 Turn(s), ROHS COMPLIANT

RV202YN15SC155 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1261148980
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Country Of OriginMainland China
ECCN codeEAR99
YTEOL6
Actuator directionHORIZONTAL
Actuator typeSHAFT
gang number1
Manufacturer's serial numberRV202
Installation featuresPANEL MOUNT
Number of terminals3
number of turns1
Maximum operating temperature85 °C
Minimum operating temperature-10 °C
Package shapeCIRCULAR PACKAGE
Rated power dissipation(P)0.125 W
Rated temperature40 °C
resistance1500000 Ω
resistance lawINVERSE LOGARITHMIC
Resistor typePOTENTIOMETER
surface mountNO
technologyCARBON FILM
Terminal shapeLUG
Tolerance10%

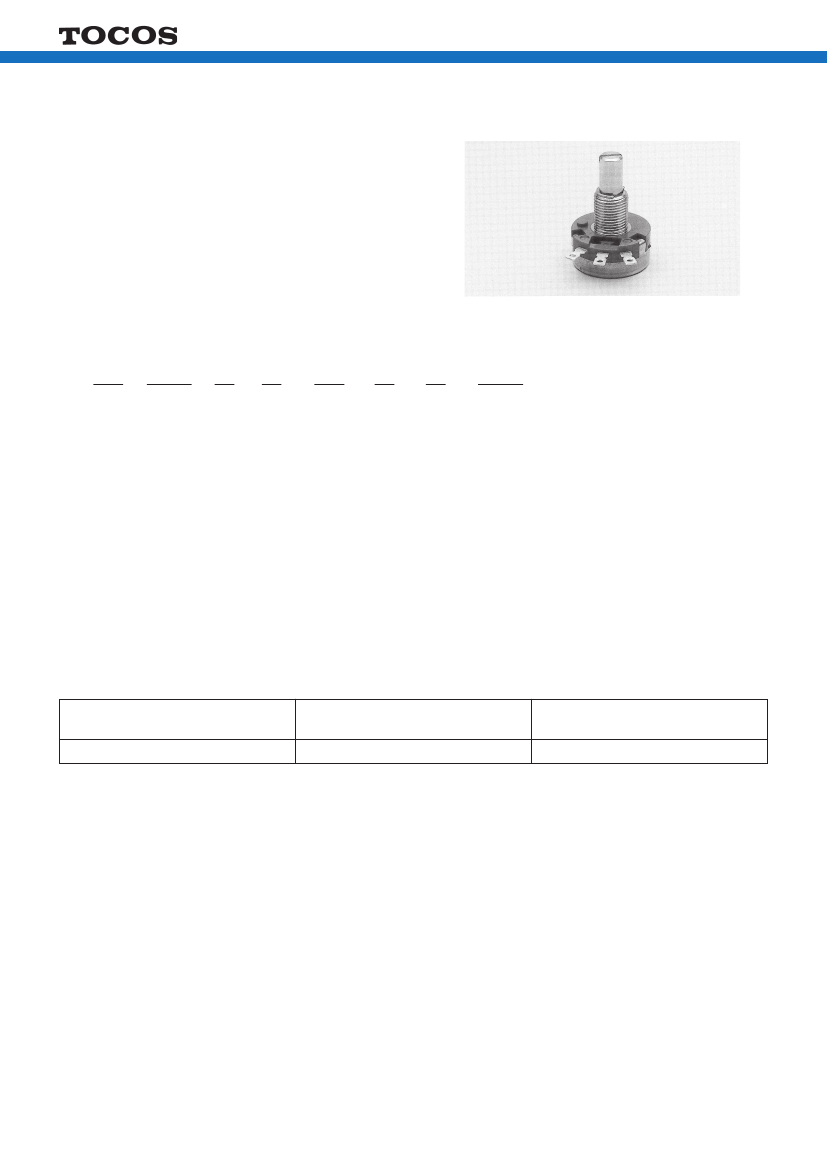

炭素系可変抵抗器
CARBON POTENTIOMETERS
φ
20 TYPE
■特徴
 FEATURES
●JIS準拠品です。
●Meets JIS.
RV2O2シリーズ
■品名構成
 PART NUMBER COMPOSITION
RoHS 指令対応 RoHS compliant
RV
202
15
103
①RV:炭素系 Carbon film
②大きさ Size

φ
20 タイプ Type
③½用温度範囲 Operating temperature range
  Y:−10℃〜+85℃
④½ 状 Style
  N:パネル取り付け½ Panel mount
  P:プリント基板用端子 P.C.B.
⑤シャフト長 Shaft length
  15:15mm
⑥シャフト½状 Shaft type
  S:溝½ Slot
  F:平½ Flat
  R:丸½ Round
⑦抵抗変化特性 Resistance taper
  B:直線½  Linear
  A:対数½  Logarithm
  C:逆対数½ Reverse logarithm
⑧公称全抵抗値記号(3桁表示)
  NominaI total resistance value code(3digits)
■品名一覧表
 LIlST OF PART NUMBERS
仕    様
Specification
品 名 Model

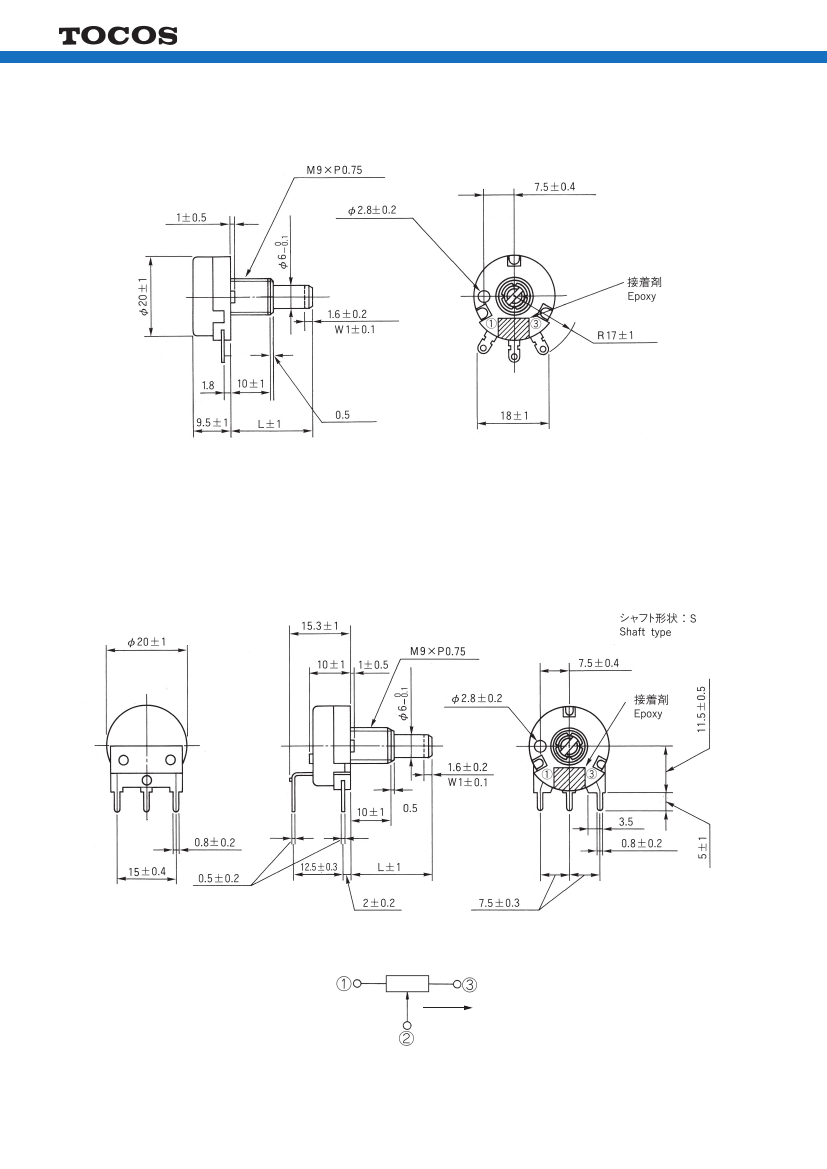

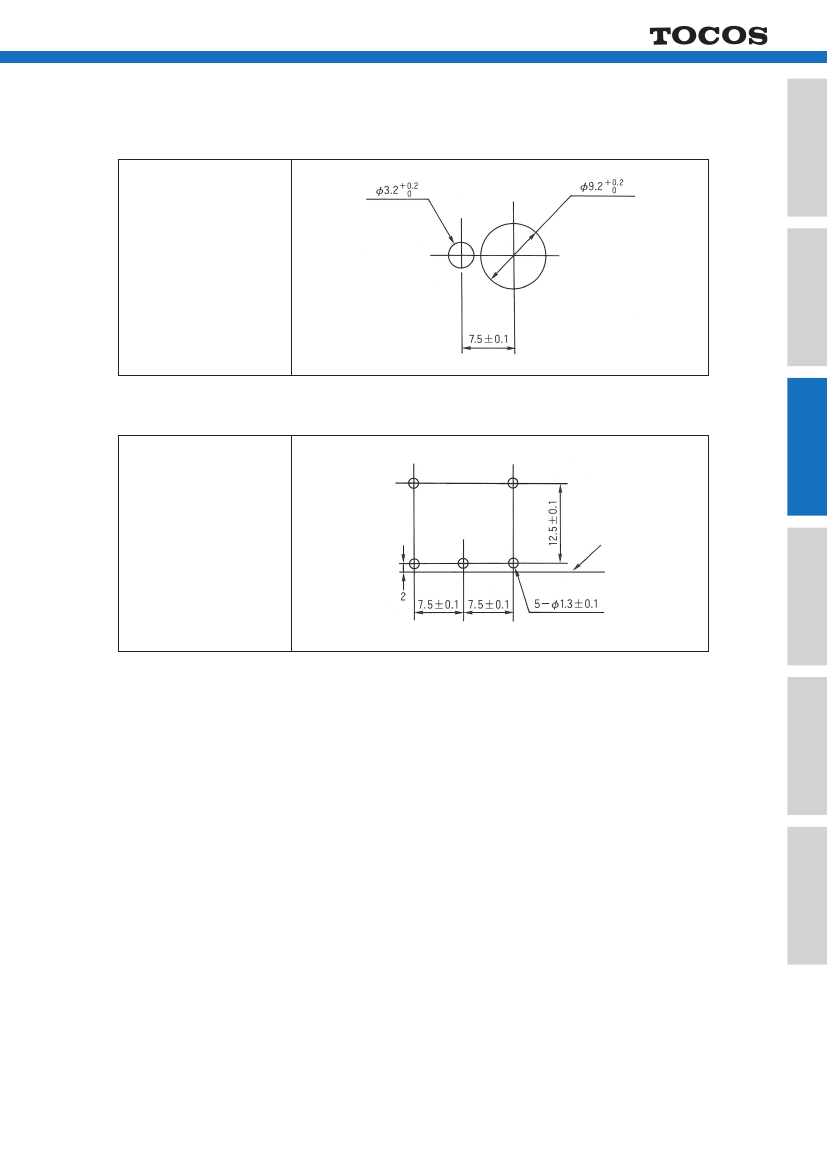

パネル取り付け½
Panel mount
RV202YN
プリント基板用端子½
P.C.B.
RV202YP
《付属部品》 Hardware(P.13〜14)
 取付ナット    Nut
 歯付きワッシャー Toothed washer
 平ワッシャー   Plain washer
※御注文に際しては、品名構成および品名一覧表
を御確認下さい。
142
