POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH5D28 , CDRH5D28R , CDRH5D28R/HP
◆
Product Description
・6.0×6.0mm
Max.(L×W),
3.0mm Max. Height.(CDRH5D28)
・6.2×6.2mm
Max.(L×W),
3.0mm Max. Height.(CDRH5D28R,CDRH5D28R/HP)
・Standard
type CDRH5D28, CDRH5D28R and High Power type CDRH5D28R /HP
are available.
・Inductance
range:2.5½100μH(CDRH5D28,CDRH5D28R);
2.2½47uH(CDRH5D28R/HP);
・Rated
current range:0.42½2.6A(CDRH5D28);
0.4½2.6A(CDRH5D28R);
0.85½3.8A(CDRH5D28R/HP);
・In
addition to the standards versions shown here, custom inductors are also available to meet your
exact requirements.
◆
Feature
・Magnetically
shielded construction.
・Ideally
used in Notebook PC,HDD,DSC/DVC, LCD TV ,Game machine etc as DC-DC
Converter inductors.
・RoHS
Compliance.
◆

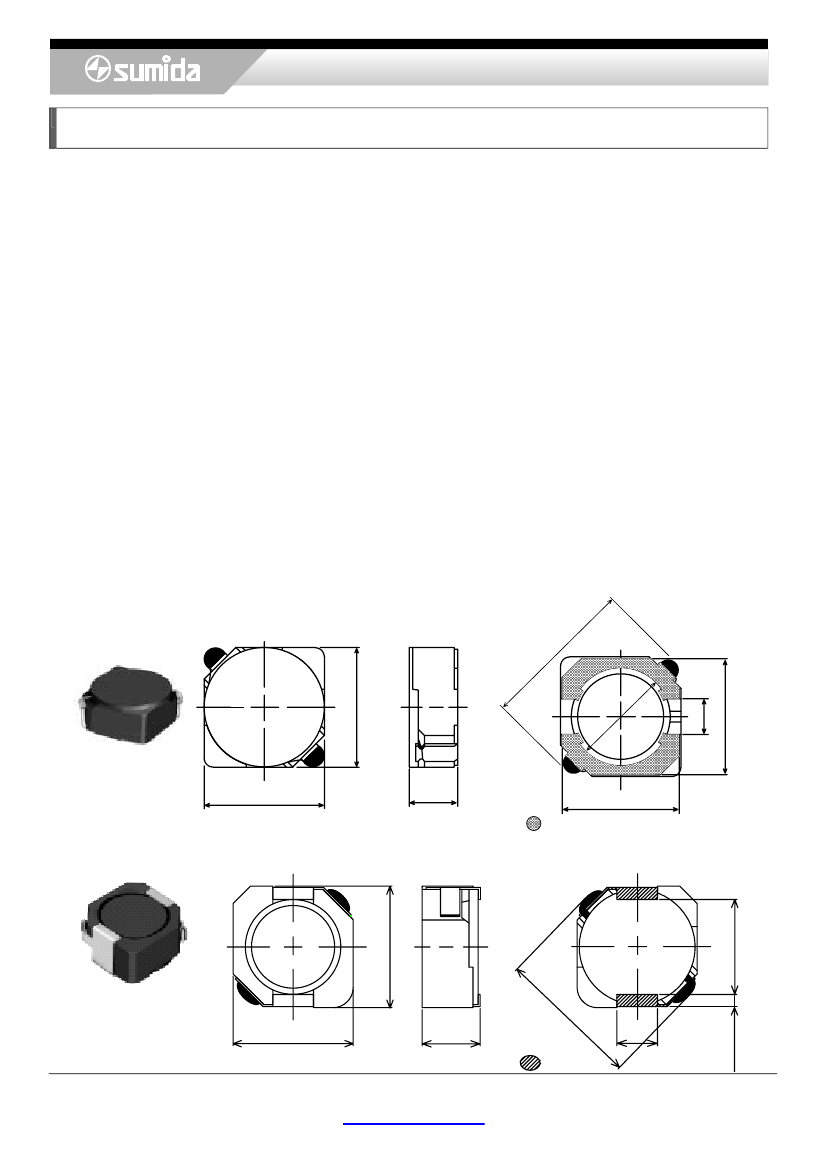

Dimensions (mm)
.
ax
M
6
4.
φ
※ 5.7±0.3
2
8.
2.0
CDRH5D28
※ 5.7±0.3
(2.8)
3.0 Max.
Electrode
5.5
6.0 ±0.3
CDRH5D28R
CDRH5D28R/HP
5.9 ± 0.3
2.8 ± 0.2
Ma
x.
2.0 ±0. 1
Electrode
Please refer to the sales offices on our website for a representative near you
www.sumida.com
0 . 6 ± 0. 1 5
8.
2
4 . 7 ± 0 .3
5.5
1/4
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH5D28 , CDRH5D28R , CDRH5D28R/HP
◆
Land Pattern (mm)
2.15
2.0
2.15
1.0
4.6
1.0
CDRH5D28
CDRH5D28R, CDRH5D28R/HP
◆
Specification(CDRH5D28)
Part Name
※
CDRH5D28NP-2R5N□
CDRH5D28NP-3RØN□
CDRH5D28NP-4R2N□
CDRH5D28NP-5R3N□
CDRH5D28NP-6R2N□
CDRH5D28NP-8R2N□
CDRH5D28NP-1ØØN□
CDRH5D28NP-12ØN□
CDRH5D28NP-15ØN□
CDRH5D28NP-18ØN□
CDRH5D28NP-22ØN□
CDRH5D28NP-27ØN□
CDRH5D28NP-33ØN□
CDRH5D28NP-39ØN□
CDRH5D28NP-47ØN□
CDRH5D28NP-56ØN□
CDRH5D28NP-68ØN□
CDRH5D28NP-82ØN□
CDRH5D28NP-1Ø1N□
Stamp
2R5
3R0
4R2
5R3
6R2
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
Inductance
(μH)
［Within½
100kHz/1V
2.5±30%
3.0±30%
4.2±30%
5.3±30%
6.2±30%
8.2±30%
10±30%
12±30%
15±30%
18±30%
22±30%
27±30%
33±30%
39±30%
47±30%
56±30%
68±30%
82±30%
100±30%
D.C.R. (Ω)
[Max.] (Typ.)
(at 20℃)
18m (13m)
24m (18m)
31m (23m)
38m (28m)
45m (33m)
53m (39m)
65m (48m)
76m (56m)
103m (76m)
110m (82m)
122m (90m)
175m(130m)
189m(140m)
212m(157m)
250m(185m)
305m(226m)
355m(263m)
463m(343m)
520m(385m)
Rated
current
(A)
※1-1
2.60
2.40
2.20
1.90
1.80
1.60
1.30
1.20
1.10
1.00
0.90
0.85
0.75
0.70
0.62
0.58
0.52
0.46
0.42
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2.1
6.3
2/4
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH5D28 , CDRH5D28R , CDRH5D28R/HP
◆
Specification(CDRH5D28R)
Part Name
※
CDRH5D28RNP-2R5N□
CDRH5D28RNP-3R3N□
CDRH5D28RNP-4RØN□
CDRH5D28RNP-5RØN□
CDRH5D28RNP-6RØN□
CDRH5D28RNP-8RØN□
CDRH5D28RNP-1ØØN□
CDRH5D28RNP-12ØN□
CDRH5D28RNP-15ØN□
CDRH5D28RNP-18ØN□
CDRH5D28RNP-22ØN□
CDRH5D28RNP-27ØN□
CDRH5D28RNP-33ØN□
CDRH5D28RNP-39ØN□
CDRH5D28RNP-47ØN□
CDRH5D28RNP-56ØN□
CDRH5D28RNP-68ØN□
CDRH5D28RNP-82ØN□
CDRH5D28RNP–1Ø1N□
Stamp
2R5
3R3
4R0
5R0
6R0
8R0
100
120
150
180
220
270
330
390
470
560
680
820
101
Inductance
(μH)
［Within½
100kHz/1V
2.5±30%
3.3±30%
4.0±30%
5.0±30%
6.0±30%
8.0±30%
10±30%
12±30%
15±30%
18±30%
22±30%
27±30%
33±30%
39±30%
47±30%
56±30%
68±30%
82±30%
100±30%
D.C.R. (mΩ)
[Max.] (Typ.)
(at 20℃)
17.6(13)
20.3(15)
27.0(20)
31.1(23)
41.9(31)
49.9(37)
54.0(40)
71.6(53)
82.4(61)
101.5(75)
119.0(88)
146.0(108)
182.5(135)
209.5(155)
229.5(170)
305.0(226)
351.0(260)
418.5(310)
520.0(385)
Rated
current
(A)
※1-1
2.60
2.30
2.10
1.85
1.70
1.50
1.30
1.20
1.10
1.05
0.95
0.85
0.76
0.68
0.60
0.55
0.48
0.45
0.40
Please refer to the sales offices on our website for a representative near you
www.sumida.com
3/4
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH5D28 , CDRH5D28R , CDRH5D28R/HP
◆
Specification(CDRH5D28R/HP)
Part Name
※
CDRH5D28RHPNP-2R2N□
CDRH5D28RHPNP-3RØN□
CDRH5D28RHPNP-4R7N□
CDRH5D28RHPNP-5R6N□
CDRH5D28RHPNP-6R8N□
CDRH5D28RHPNP-8R2N□
CDRH5D28RHPNP-1ØØM□
CDRH5D28RHPNP-12ØM□
CDRH5D28RHPNP-15ØM□
CDRH5D28RHPNP-18ØM□
CDRH5D28RHPNP-22ØM□
CDRH5D28RHPNP-27ØM□
CDRH5D28RHPNP-33ØM□
CDRH5D28RHPNP-47ØM□
Inductance
(μH)
[Within]
100kHz/1V
2.2±25％
3.0±25％
4.7±25％
5.6±25％
6.8±25％
8.2±25％
10.0±20％
12.0±20％
15.0±20％
18.0±20％
22.0±20％
27.0±20％
33.0±20％
47.0±20％
D.C.R.(mΩ)
[Max.](Typ.)
(at 20℃)
24.8(19.8)
31.8(25.4)
43.1(34.5)
47.9(38.3)
61.3(49.0)
88.4(70.7)
93.0(74.4)
115(92.1)
144(115)
161(128)
213(171)
277(221)
314(251)
379(303)
Saturation
Current (Ａ)
※1-2
( 20℃)
5.50
4.70
3.70
3.30
3.10
2.70
2.45
2.30
2.05
1.90
1.75
1.60
1.35
1.20
(105℃)
4.50
3.90
3.05
2.65
2.55
2.30
2.05
2.00
1.65
1.55
1.42
1.30
1.10
1.00
Temperature
Rise current
(Ａ)※2
3.80
3.35
2.80
2.70
2.50
1.90
1.85
1.60
1.40
1.35
1.20
1.00
0.90
0.85
Stamp
2R2
3R0
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
470
※
Description of part name
CDRH5D28RHPNP-2R2N□
B Box
C
Carrier Tape
※1-1.
Rated current: The DC current at which the inductance decreases to 65 % of it’s nominal
value or when
△t=30℃(CDRH5D28)or△t=40℃(CDRH5D28R),
whichever is lower(Ta=20℃).
※1-2.
Saturation current:The DC current at which the inductance decreases to 65% of it’s nominal value.
※2.
Temperature rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
4/4
