BNC8507-0075 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BNC8507-0075

BNC8507-0075: DescriptionRF BNC Connector, 1 Contact(s), Female, Cable Mount, Wire Terminal, Locking, Jack; CategoryThe connector The connector; File Size846KB，1 Pages; ManufacturerJYEBAO Co., Ltd.

Download Datasheet Parametric Compare View All

BNC8507-0075 Overview

RF BNC Connector, 1 Contact(s), Female, Cable Mount, Wire Terminal, Locking, Jack

BNC8507-0075 Parametric

Parameter Name	Attribute value
Maker	JYEBAO Co., Ltd.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
subject depth	0.846 inch
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact resistance	1.5 mΩ
Contact style	COAX
Dielectric withstand voltage	2100VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	1 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell material	BRASS
Termination type	WIRE
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

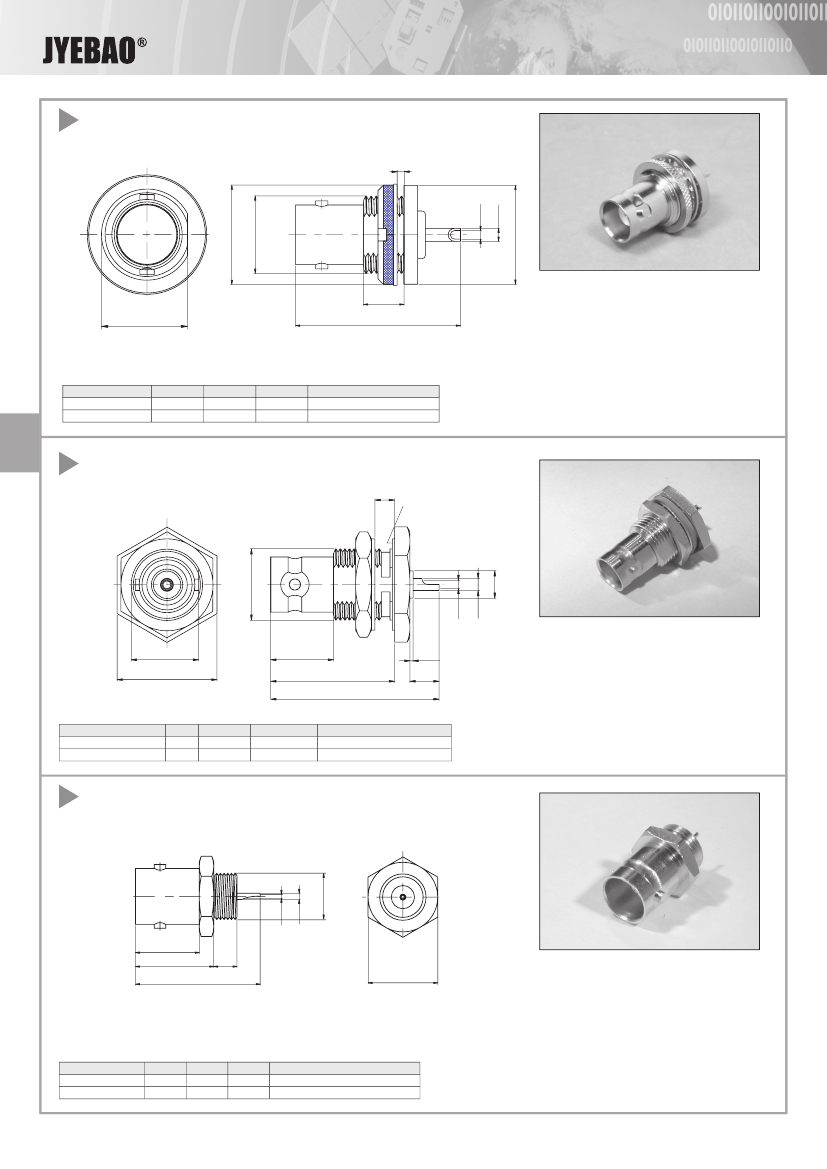

BNC JACK FOR BULKHEAD

2.4 MAX

(.094 MAX)

ø1.4

(ø.055)

1/2-28UNEF-2A

ø2.1

(ø.083)

ø16.1

(ø.634)

6.55

(.258)

11.8

(.465)

26.7

(1.051)

Part Number

BNC8503-0000

BNC8503-0075

M.H.

Weight

12.35g

Material

Remark

No Gasket

Impedance=75ohm;No Gasket

BNC JACK FOR BULKHEAD

6.3 MAX

(.248 MAX) GASKET

1/2-28UNEF-2A

1.4

(

.055)

11.8

(.465)

17.5 HEX

(.689 HEX)

(.433)

21.7

(.854)

29.5

(1.161)

0.55

(.022)

5.1

(.201)

Part Number

BNC8506-0000

BNC8506-0075

M.H.

Weight

17.22g

Material

C17

Remark

With Gasket

Impedance=75ohm; With Gasket

BNC JACK FOR BULKHEAD

ø0.7

(ø.028)

(.433)

13.5

(.531)

21.5

(.846)

(.157)

ø1.07

(ø.042)

UNEF3/8-32

12 HEX

(.472 HEX)

Part Number

BNC8507-0000

BNC8507-0075

M.H.

126

Weight

5.86g

Material

Remarks

No Gasket

Impedance=75ohm; No Gasket

Material & Plating: See Page 437

Mounting Hole (M.H.): See Page 439

131

www.jyebao.com.tw

Tel : 886-2-29029282

Fax: 886-2-29029283

2.1

(

.083)

E-mail: jyebao@jyebao.com.tw

4.8

(

.189)

ø16

(ø.630)

BNC

BNC8507-0075 Related Products

	BNC8507-0075	BNC8506-0075	BNC8507-0000	BNC8506-0000
Description	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Wire Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Wire Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Cable Mount, Wire Terminal, Locking, Jack	RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Wire Terminal, Locking, Jack
Maker	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.	JYEBAO Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	0.846 inch	1.161 inch	0.846 inch	1.161 inch
Body/casing type	JACK	JACK	JACK	JACK
Characteristic impedance	75 Ω	75 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact resistance	1.5 mΩ	1.5 mΩ	1.5 mΩ	1.5 mΩ
Contact style	COAX	COAX	COAX	COAX
Dielectric withstand voltage	2100VAC V	2100VAC V	2100VAC V	2100VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	TEFLON	TEFLON	TEFLON	TEFLON
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1
Maximum operating frequency	1 GHz	1 GHz	4 GHz	4 GHz
Maximum operating temperature	165 °C	165 °C	165 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	BRASS	BRASS	BRASS	BRASS
Termination type	WIRE	WIRE	WIRE	WIRE
Total number of contacts	1	1	1	1
Base Number Matches	1	1	1	1
