Version 1.4 2007
PEX 8524
Features
PEX 8524 General Features
o
24-lane PCI Express switch
-
Integrated SerDes
o
Up to six configurable ports
o
31mm x31mm, 644 pin PBGA package
o
Typical Power: 3.9 Watts
PEX 8524 Key Features
o
Standard Compliant
-
PCI Express Base Specification, r1.1
o
High Performance
-
Non-blocking switch fabric
-
Full line rate on all ports
o
Non-Transparent Bridging
-
Configurable Non-Transparent port
for Multi-Host or Intelligent I/O
Support
o
Flexible Configuration
-
Six highly flexible & configurable
ports (x1, x2, x4, x8, or x16)
-
Configurable with strapping pins,
EEPROM, or Host software
-
Lane and polarity reversal
o
PCI Express Power Management
-
Link power management states: L0,
L0s, L1, L2/L3 Ready, and L3
-
Device states: D0 and D3hot
o
Quality of Service (QoS)
-
Two Virtual Channels per port
-
Eight Traffic Classes per port
-
Fixed and Round-Robin Virtual
Channel Port Arbitration
o
Reliability, Availability,
Serviceability
-
6 Standard Hot-Plug Controllers
-
Upstream port as hot-plug client
-
Transaction Layer end-to-end CRC
-
Poison bit
-
Advanced Error Reporting
-
Lane Status bits and GPO available
-
Per port performance monitoring
•
Average packet size
•
Number of packets
•
CRC errors and more
-
JTAG boundary scan
Flexible & Versatile PCI Express Switch
Multi-purpose, Feature Rich
ExpressLane™
PCI Express Switch
The
ExpressLane
TM
PEX 8524 device offers PCI Express switching capability
enabling users to add scalable high bandwidth, non-blocking interconnection to a
wide variety of applications including
servers, storage systems, communications
platforms, blade servers,
and
embedded-control products.
The PEX 8524 is well
suited for
fan-out, aggregation, dual-graphics, peer-to-peer,
and
intelligent I/O
module
applications.
Highly Flexible Port Configurations
The
ExpressLane
PEX 8524 offers highly configurable ports. There are a maximum
of 6 ports that can be configured to any legal width from x1 to x16, in any
combination to support your specific bandwidth needs. The ports can be configured
for
symmetric
(each port having the same lane width and traffic load) or
asymmetric
(ports having different lane widths) traffic. In the event of asymmetric
traffic, the PEX 8524 features a
flexible central packet memory
that allocates a
memory buffer for each port as required by the application or endpoint. This buffer
allocation along with the device's
flexible packet flow control
minimizes
bottlenecks when the upstream and aggregated downstream bandwidths do not match
(are asymmetric). Any of the ports can be designated as the upstream port, which can
be changed dynamically.
End-to-end Packet Integrity
The PEX 8524 provides
end-to-end CRC
protection (ECRC) and
Poison bit
support
to enable designs that require
end-to-end data integrity.
These features are optional
in the PCI Express specification, but PLX provides them across its entire
ExpressLane
switch product line.
Non-Transparent “Bridging” in a PCI Express Switch
The
ExpressLane
PEX 8524 product supports full non-transparent bridging (NTB)
functionality to allow implementation of
multi-host systems
and
intelligent I/O
modules
in
communications, storage, blade server,
and
graphics fan-out
applications.
To ensure quick product migration, the non-transparency features are
implemented in the same fashion as in standard PCI applications.
Non-transparent bridges allow systems to isolate memory domains by presenting the
processor subsystem as an endpoint, rather than another memory system. Base
address registers are used to translate addresses; doorbell registers are used to send
interrupts between the address domains; and scratchpad registers are accessible from
both address domains to allow inter-processor communication.
Two Virtual Channels
The
ExpressLane
PEX 8524 switch supports 2 full-featured Virtual Channels (VCs)
and a full 8 Traffic Classes (TCs). The mapping of Traffic Classes to port-specific
Virtual Channels allows for different mappings for different ports. In addition, the
devices offer user-selectable Virtual Channel arbitration algorithms to enable users
to fine tune the Quality of Service (QoS) required for a specific application.
Low Power with Granular SerDes Control
The PEX 8524 provides low power capability that is fully compliant with the PCI
Express power management specification. In addition, the SerDes physical links can
be turned off when unused for even lower power.
Flexible Port Width Configuration
The lane width for each port can be individually configured
through auto-negotiation, hardware strapping, upstream
software configuration, or through an optional EEPROM.
The PEX 8524 supports a large number of port configurations.
For example, if you are using the PEX 8524 in a fan-out
application, you may configure the upstream port as x8 and
the downstream ports as four x4 ports; two x8 ports for dual-
graphics fan-out; or other combinations, as long as you don’t
run out of lanes (24) or ports (6). In a peer-to-peer application
you can configure all six ports as x4. Figure 1 shows the most
common port configurations.
SerDes Power and Signal Management
The ExpressLane PEX 8524 supports
software control
of the
SerDes outputs
to allow optimization of power
and signal strength in a system. The PLX SerDes
implementation supports four levels of power – off, low,
typical, and high. The SerDes block also supports
loop-back
modes
and
advanced reporting of error conditions,
which
enables efficient debug and management of the entire system.
Flexible Virtual Channel Arbitration
The ExpressLane PEX 8524 switches support
hardware fixed
and Round Robin arbitration schemes
for two virtual
channels on each port. This allows for the fine tuning of
Quality of Service for efficient use of packet buffers and
system bandwidth.
Applications
Suitable for
host-centric
as well as
peer-to-peer traffic
patterns,
the PEX 8524 can be configured for a wide variety
of form factors and applications.
Host-Centric Fan-out
The PEX 8524, with its symmetric or asymmetric lane
configuration capability, allows user specific tuning to a
variety of host-centric applications.

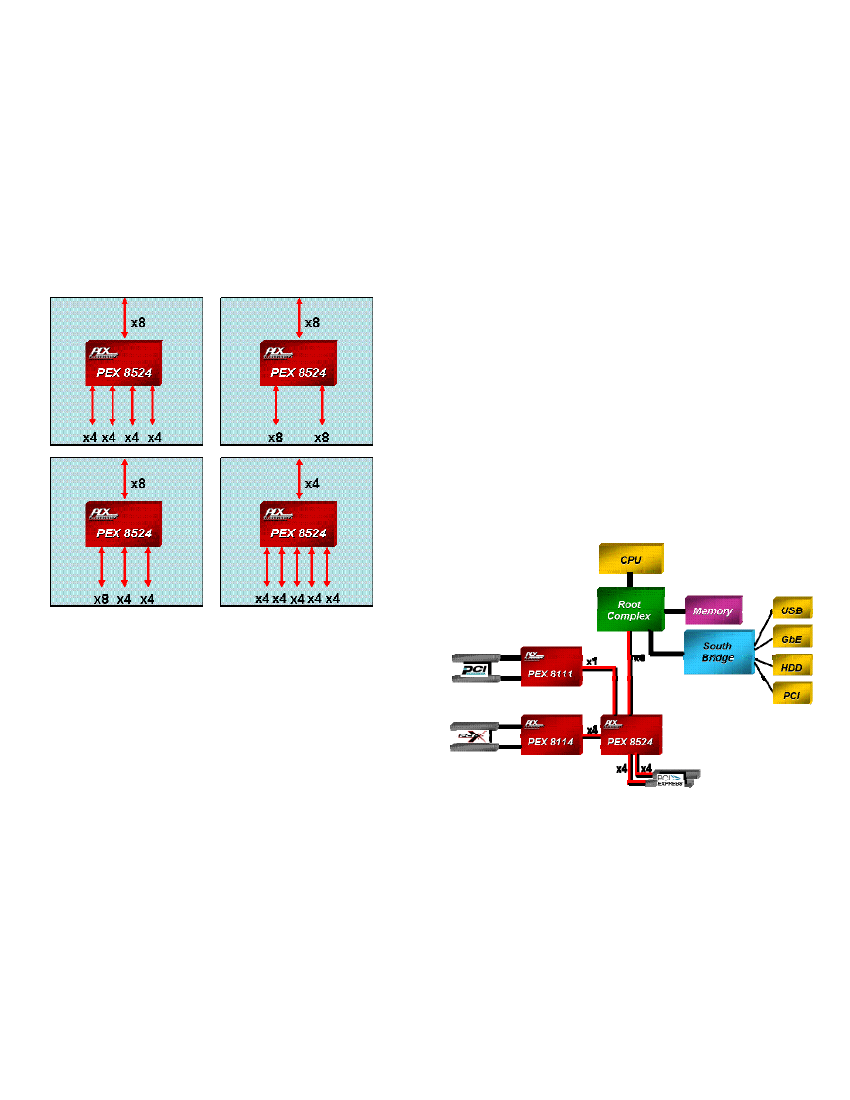

Figure 1. Common Port Configurations
Hot Plug for High Availability
Hot plug capability allows users to replace hardware modules
and perform maintenance without powering down the system.
The PEX 8524 hot plug capability and
Advanced Error
Reporting
features makes it suitable for
High Availability
(HA) applications.
Each downstream port includes a Standard
Hot Plug Controller. If the PEX 8524 is used in an application
where one or more of its downstream ports connect to PCI
Express slots, each port’s Hot Plug Controller can be used to
manage the hot-plug event of its associated slot. Furthermore,
its upstream port is a
hot-plug client,
allowing it to be
used
on hot-pluggable adapter cards, backplanes, and fabric
modules.

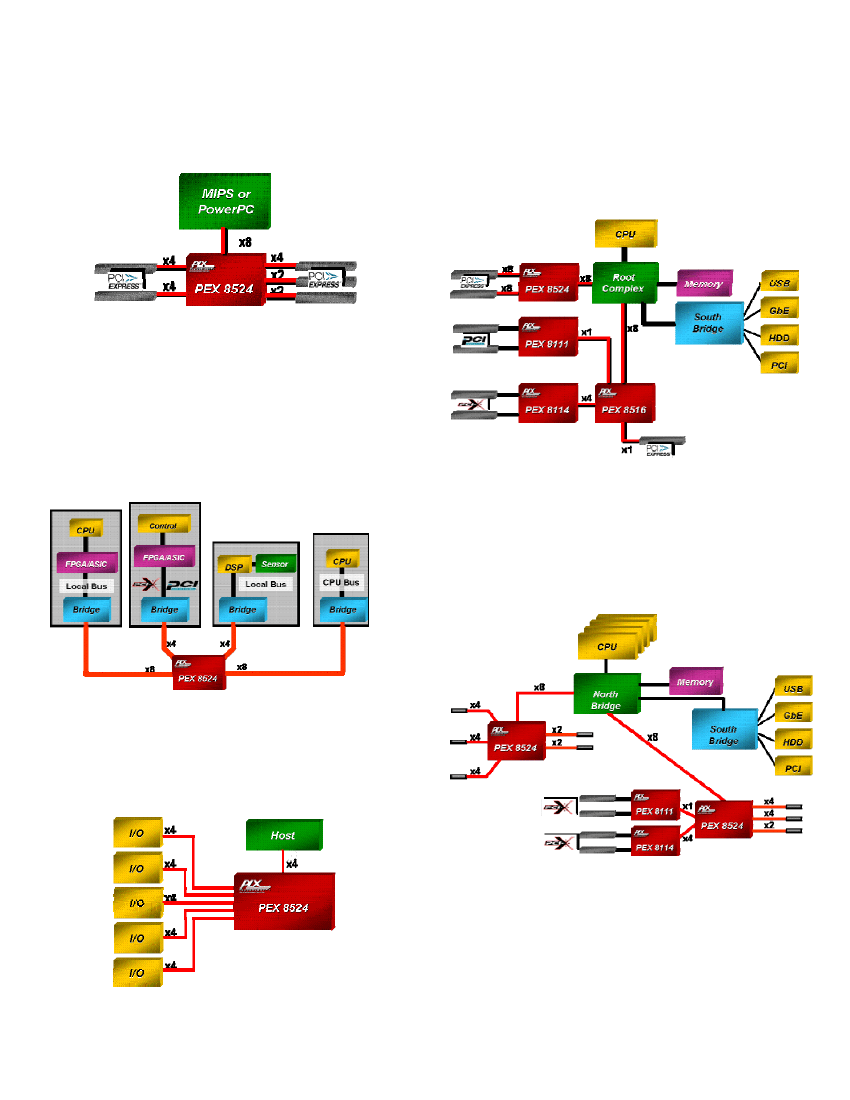

Figure 2. Fan-in/out Usage
Figure 2 shows a typical
server-based
design, where the root
complex provides a PCI Express link that needs to be fanned
into a larger number of smaller ports for a variety of I/O
functions, each with different bandwidth requirements.
In this example, the PEX 8524 would typically have an 8-lane
upstream port, and as many as 5 downstream ports (4 shown
here). The downstream ports can be of differing widths if
required. The figure also shows how some of the ports can be
bridged to provide
PCI or PCI-X
slots through the use of the
ExpressLane
PEX 8114 and PEX 8111 PCIe
bridging
devices.
Fully Compliant Power Management
For applications that require power management, the PEX
8524 device supports both link (L0, L0s, L1, L2/L3 Ready,
and L3) and device (D0 and D3hot) power management states,
in compliance with the PCI Express power management
specification.
Almost all (non x86 based) high-end microprocessor
manufacturers are offering PCI Express interfaces. The PEX
8524 can be directly connected to a processor to fan-out its
PCIe port to a larger number of ports for enhanced
connectivity as illustrated in Figure 3.
Graphics Fan-out Switch
As PCIe based graphics cards become more mainstream, it
will be necessary to take a x8 port on the root complex device
and fan it out to two x8 ports for dual graphics applications.
Root Complex (Northbridge) devices are available with
multiple PCIe ports. These ports can be further expanded to
connect to a larger number of I/Os or to support dual-graphics
using the PEX 8524 as shown in Figure 6.
Figure 3. Fan out for PowerPC/MIPS CPUs
Embedded Systems
The PEX 8524 can also be utilized in embedded applications.
Figure 4 shows several independent modules connecting
through the PEX 8524. The port widths for each module can
be configured as required. The peer-to-peer communication
feature of the PEX 8524 allows these modules to communicate
with each other without any centralized control.
Figure 6. Graphics Fan-out
PCI Express Port Expansion
The PEX 8524 enables designers to take, for example, two x8
PCIe ports and expand them into ten ports. Some of these
PCIe ports can be bridged to PCI or PCI-X using bridging
products from PLX. Figure 7 illustrates one of the many
configurations the PEX 8524 can support.
Figure 4. Embedded Systems
Peer to Peer Communication
Figure 5 represents a backplane where the ExpressLane PEX
8524 provides peer-to-peer data exchange for a large number
of line cards where the CPU/Host plays the management role.
Figure 7. PCIe Port Expansion
Figure 5. Peer-to-Peer Usage
Software Usage Model
From a system model viewpoint, each PCI Express port is a
virtual PCI to PCI bridge device and has its own set of PCI
Express configuration registers. It is through the upstream port
that the BIOS or host can configure the other ports using
standard PCI enumeration. The virtual PCI to PCI bridges
within the PEX 8524 are compliant to the PCI and PCI
Express system models. The Configuration Space Registers
(CSRs) in a virtual primary/secondary PCI to PCI bridge are
accessible by type 0 configuration cycles through the virtual
primary bus interface (matching bus number, device number,
and function number).
Interrupt Sources/Events
The ExpressLane PEX 8524 switch supports the INTx
interrupt message type (compatible with PCI 2.3 Interrupt
signals) or Message Signaled Interrupts (MSI) when enabled.
Interrupts/messages are generated by PEX 8524 for hot plug
events, doorbell interrupts, baseline error reporting, and
advanced error reporting.
Development Tools
PLX offers hardware and software tools to enable rapid
customer design activity. These tools consist of a hardware
module (PEX 8524RDK), hardware documentation, and a

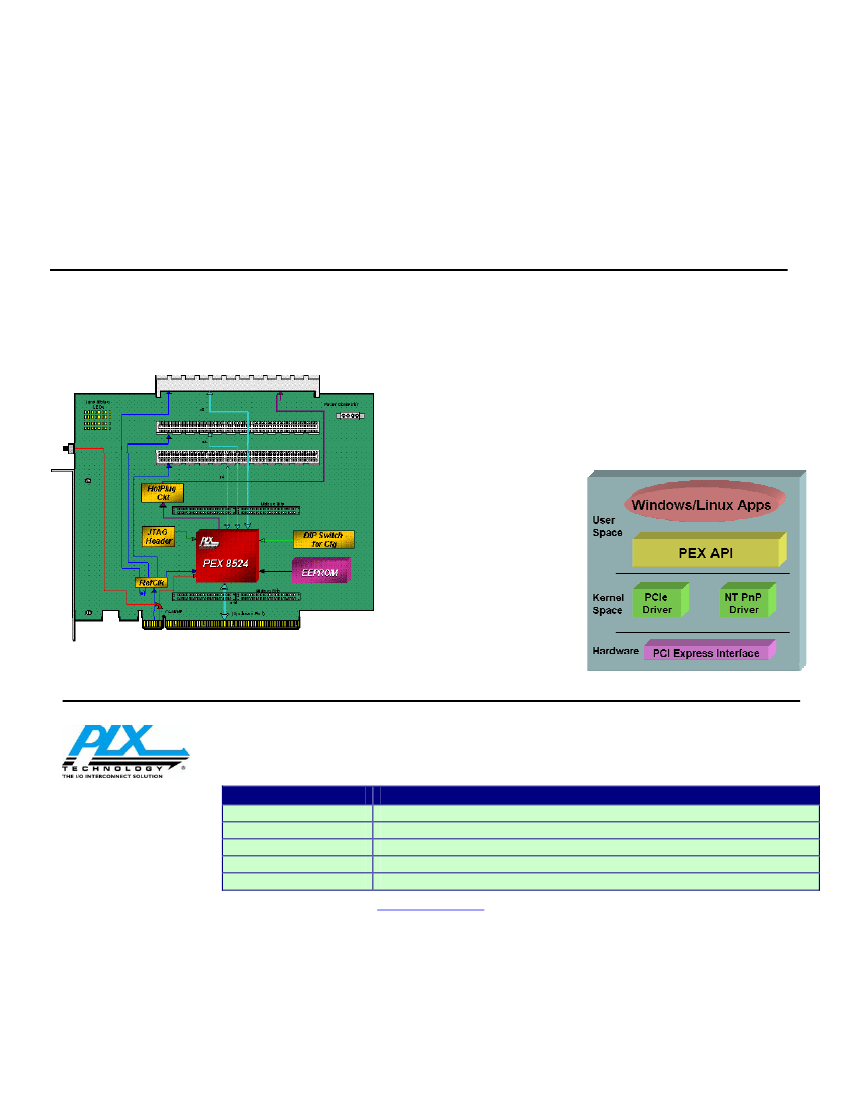

Software Development Kit (SDK).
ExpressLane
PEX 8524RDK
The RDK hardware module includes the PEX 8524 with one
x8 upstream port, one x8 downstream port, and two x4
downstream ports. The upstream port uses a x8 PCI Express
edge connector. PLX offers adapters (x4 and x1) which can be
used to plug the RDK in smaller slots. The PEX 8524RDK
hardware module can be installed in a motherboard, used as a
riser card, or configured as a bench-top board. The PEX
8524RDK can be used to test and validate customer software.
Additionally, it can be used as an evaluation vehicle for PEX
8524 features and benefits.
SDK
The SDK tool set
includes:
-
Linux &
Windows drivers
-
C/C++ Source
code, Objects,
libraries
-
User’s Guides &
Application
examples
\
Figure 8. PEX 8524RDK
Product Ordering Information
PLX Technology, Inc.
870 Maude Ave.
Sunnyvale, CA 94085 USA
Tel: 1-800-759-3735
Tel: 1-408-774-9060
Fax: 1-408-774-2169
Email: info@plxtech.com
Web Site: www.plxtech.com
Part Number
PEX8524-BC25BI
PEX8524-BC25BI G
PEX 8524-BC RDK
x4 Adapter
x1 Adapter
Description
24-Lane, 6-Port PCIe Switch, 644-ball PBGA 31x31mm
2
package
24-Lane, 6-Port PCIe Switch, 644-ball PBGA 31x31mm
2
package, Pb-free
PEX 8524 Rapid Development Kit with x8 Edge Connector
PCI Express x16 to x4 Adapter
PCI Express x16 to x1 Adapter
Please visit the PLX Web site at
http://www.plxtech.com
or contact PLX sales at 408-774-9060 for sampling.
© 2006 PLX Technology, Inc. All rights reserved. PLX and the PLX logo are registered trademarks of PLX Technology, Inc. ExpressLane is a trademark of PLX
Technology, Inc., which may be registered in some jurisdiction. All other product names that appear in this material are for identification purposes only and are
acknowledged to be trademarks or registered trademarks of their respective companies. Information supplied by PLX is believed to be accurate and reliable, but PLX
Technology, Inc. assumes no responsibility for any errors that may appear in this material. PLX Technology, Inc. reserves the right, without notice, to make changes
in product design or specification.
PEX8524-SIL-PB-P1-1.4
01/07
Embedded System
京公网安备 11010802033920号
EEWORLD
