3802-0-15-15-43-14-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 3802-0-15-15-43-14-04-0

Preview

3802-0-15-15-43-14-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size107KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3802-0-15-15-43-14-04-0 Overview

PCB Terminal

3802-0-15-15-43-14-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	3802
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

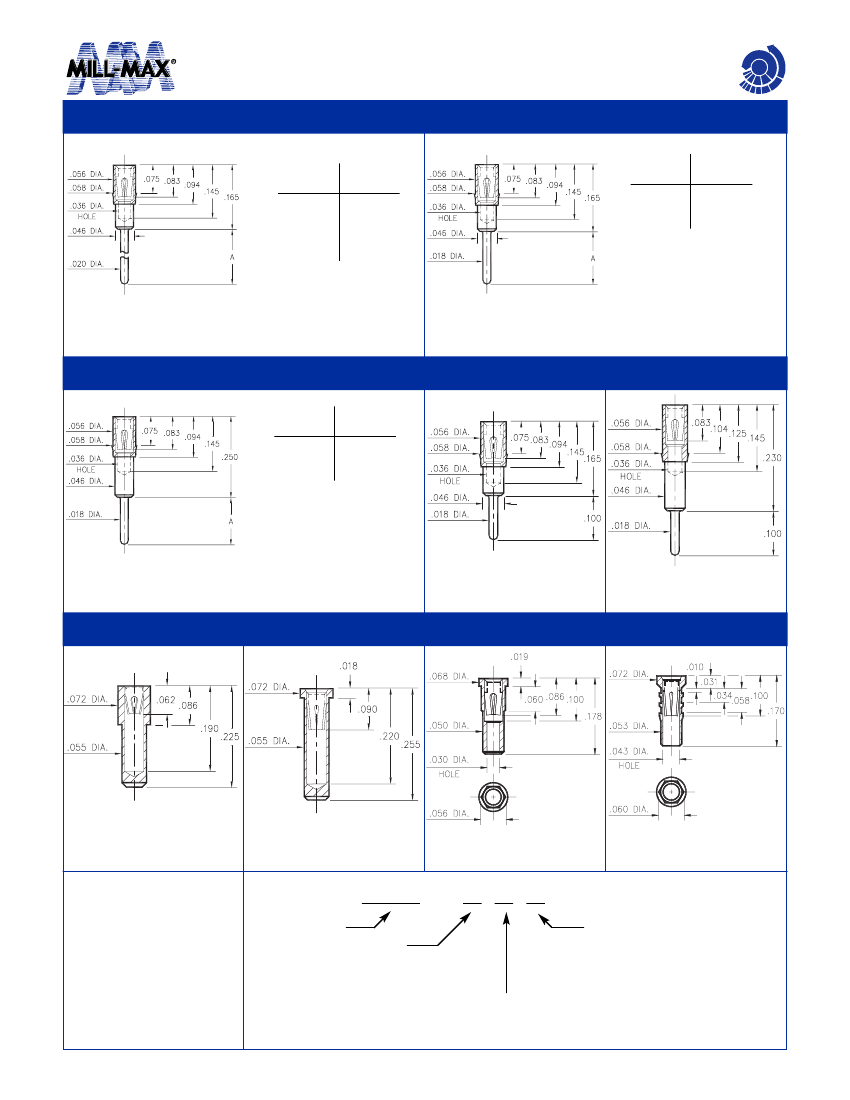

PIN RECEPTACLES

for .015” - .025” diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

1802/3802/4030/8866

Basic Part

Number

Length

A

1803/1805

Basic Part

Number

Length

A

1802-0

3802-0

8866-0

4030-0

.125

.165

.775

.815

1803-0

1805-0

.145

.213

XXXX-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

180X-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

1804/1806

Basic Part

Number

Length

A

1808

1804-0

1806-0

.080

.115

1807

180X-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

1808-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

1807-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

8830

9363

4622

6252

8830-0-15-XX-22-XX-10-0

Solder mount in .057 min.

mounting hole

9363-0-15-XX-35-XX-10-0

Solder mount in .057 min.

mounting hole

4622-0-15-XX-30-XX-10-0

Hex press-fit in .053

plated thru hole

6252-0-15-XX-32-XX-10-0

Hex press-fit in .057

plated thru hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - 0 - 1X - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

SELECT CONTACT

#22, #30, #32, #35 or #43

CONTACT (DATA ON PAGES 207, 208 & 209)

SPECIFY CONTACT FINISH:

02

200µ"

TIN/LEAD OVER

NICKEL

14

10µ"

GOLD OVER

NICKEL

27

30µ"

GOLD OVER

NICKEL

w w w. m i l l - m a x . c o m

138

516-922-6000

3802-0-15-15-43-14-04-0 Related Products

	3802-0-15-15-43-14-04-0	6252-0-15-01-30-02-10-0	3802-0-15-01-43-14-04-0	4030-0-15-15-43-14-04-0
Description	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal
Is it lead-free?	Lead free	Contains lead	Contains lead	Lead free
Is it Rohs certified?	conform to	incompatible	incompatible	conform to
Reach Compliance Code	compliant	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
terminal gender	FEMALE	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
Base Number Matches	1	1	1	1
Manufacturer's serial number	3802	6252	3802	-
