RL3264L40.0068OHMD datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> RL3264L40.0068OHMD

Preview

RL3264L40.0068OHMD: DescriptionRESISTOR, NETWORK, FILM, SPECIAL, 1W, SURFACE MOUNT, 1225, CHIP; CategoryPassive components The resistor; File Size29KB，1 Pages; ManufacturerThin Film Technology Corp (TFT)

Download Datasheet Parametric View All

RL3264L40.0068OHMD Overview

RESISTOR, NETWORK, FILM, SPECIAL, 1W, SURFACE MOUNT, 1225, CHIP

RL3264L40.0068OHMD Parametric

Parameter Name	Attribute value
Objectid	1638707880
package instruction	, 1225
Reach Compliance Code	unknown
ECCN code	EAR99
The first element resistor	0.0068 Ω
Manufacturer's serial number	RL-L
Installation features	SURFACE MOUNT
Network Type	SPECIAL
Number of components	5
Number of functions	1
Number of terminals	4
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	1 W
Resistor type	ARRAY/NETWORK RESISTOR
size code	1225
surface mount	YES
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	0.5%

RL3264L40.0068OHMD Preview

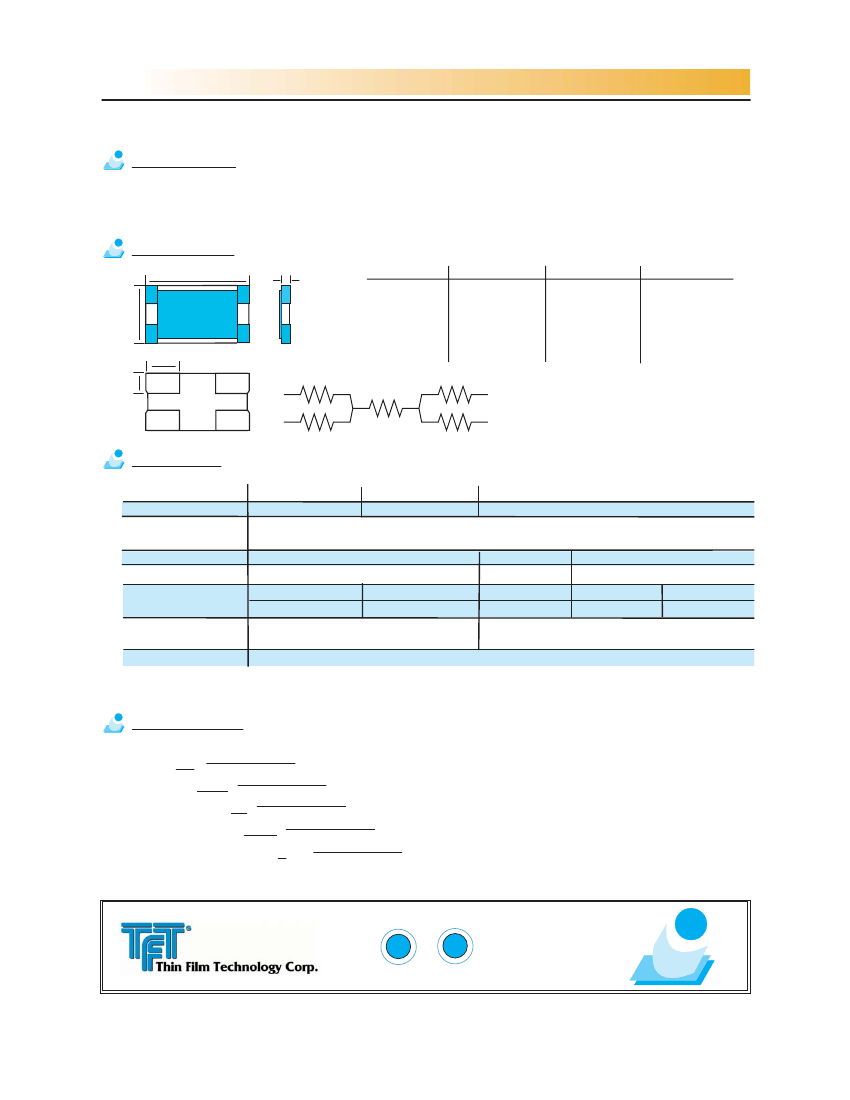

High Precision Current-Detection Resistor Network

RL-L Series: Four terminal type

1.0 Description

A four-terminal component with separate voltage and current terminals assures high-precision TCR of 50 ppm/ºC

and 0.5% tolerance

2.0 Mechanical

>

> T

>

L

Dimension

mm

RL1632L4

(1206)

RL2550L4

(2010)

RL3264L4

(2512)

W

>

a

b

>

3.0 Electrical

Type

Power

Resistance Tolerance

(Code)

Resistance Range

TCR

Terminal Resistance

Resistance Value

Package

RL1632L4

(1206)

1/2 W

RL2550L4

(2010)

3/4 W

±0.5% (D)

10~500 mohm

±50 ppm/°C

10~47 mohm

50~500 mohm

5 mohm or less

20 mohm or less

E-12 series

50, 500 mohm

5,000 pieces per reel

±1% (F)

3~5 mohm

±100 ppm/°C

3~8 mohm

1 mohm or less

6~500 mohm

±50 ppm/°C

10~47 mohm

50~500 mohm

5 mohm or less 20 mohm or less

RL3264L4

(2512)

1W

4.0 Part Number

RL

1632

L4

R033

F

Product designator

Package size

Number of terminals

Current detection / Resistance values

Resistance tolerance

R

>

L

W

T

a

b

3.20

1.60

0.50

1.00

0.55

±0.20

±0.15

±0.20

5.00

2.50

0.50

1.70

0.90

±0.20

±0.10

±0.20

6.40

3.20

0.50

2.10

1.20

±0.20

±0.15

±0.20

V

schematic

I

E-12 Series

3, 4, 5, 6, 7, 8, 50, 500 mohm

EG

I

S

TERE

EG

I

S

TERE

D

ISO9001 ISO14001

A4

303

D

A8

561

35

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
