CHANNEL 1
CHANNEL 3
CHANNEL 5
CHANNEL 2
3-PIN XLR FEMALE
(8) PLACES
EMPTY HOLE
NO PIN
13 12 11 10
9
8
CHANNEL 4
7
6
5
CHANNEL 6
4
CHANNEL 7
3
2
B
25 24 23 22 21 20 19 18 17 16 15 14
0.13
3.2
TYP
HEAT SHRINK TUBING
8 PAIR, 26 AWG CABLE
0.54
13.7
25-PIN FEMALE DSUB
METAL SHELL, #4-40 SCREW-LOCKS
DB25F PIN-OUT VIEW
2.00
50.8
6.00±0.50
152.4±12.7
1.852
47.04
REF
2.09
53.0
DB25F
0.62
15.7

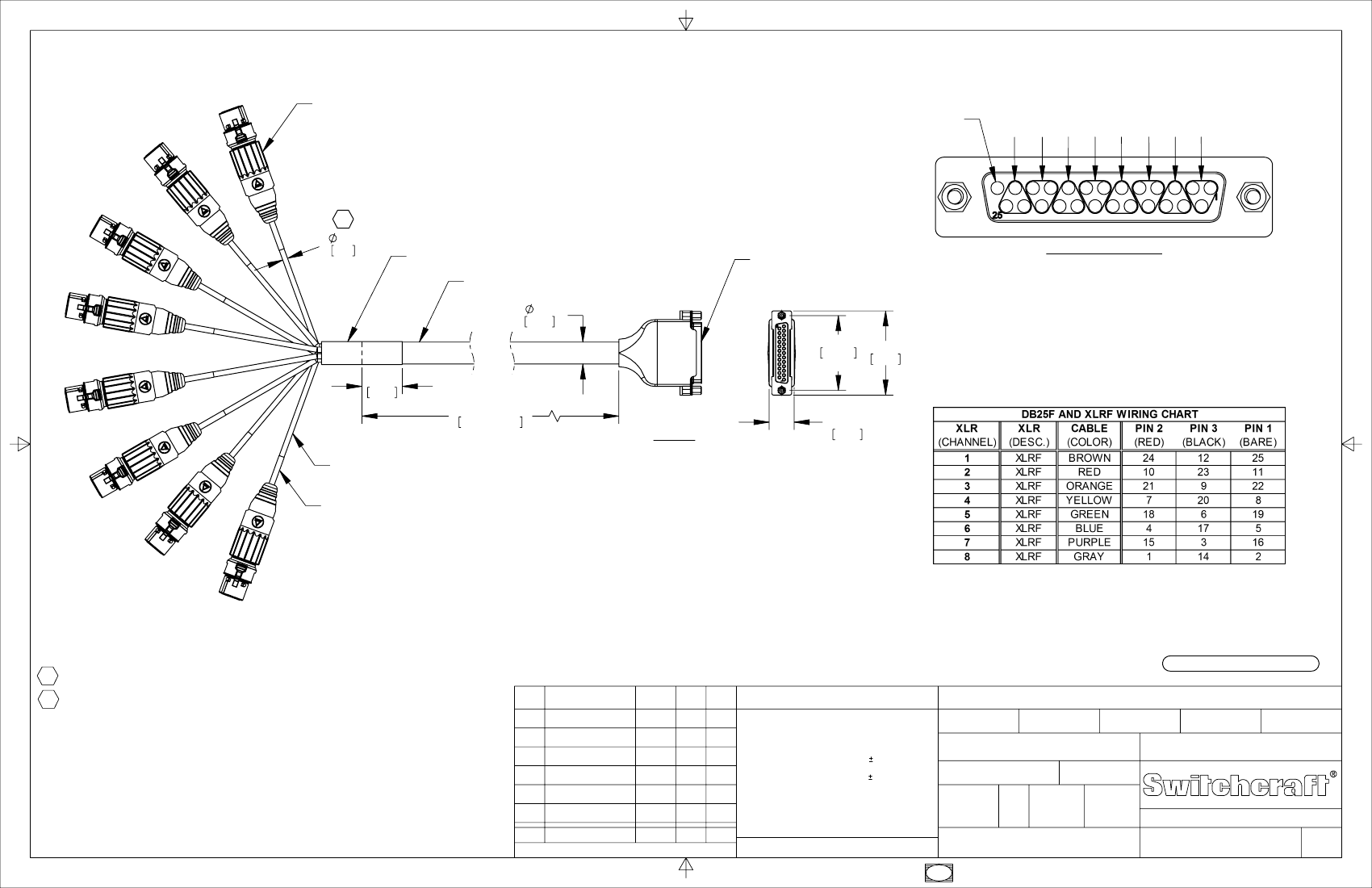

BREAKOUT CABLE
SEE NOTE 1
H.S. TUBING PRINTED
WITH CHANNEL NUMBER
(8) PLACES
NOTES:
1. BREAKOUT CABLE LENGTH: 18 +/- 0.75 INCHES. SEE TABLE FOR COLOR.
B
2. THIS PRODUCT COMES COILED AND PACKAGED IN BAG.
B
3. MATERIALS:
XLR FEMALE CONNECTOR:
HANDLE - ZINC ALLOY, NICKEL PLATED
HOUSING AND LATCH - ZINC ALLOY, NICKEL PLATED
INSULATOR - THERMOPLASTIC, GREEN
SOCKET CONTACTS - SPECIAL COPPER ALLOY, SILVER PLATED
H.S. TUBING - THERMOPLASTIC
DSUB:
CABLE CLAMP - COPPER, NICKEL PLATED
SHELL - STEEL, TIN PLATED
INSULATORS - THERMOPLASTIC
SCREW LOCKS - BRASS, NICKEL PLATED
SIZE
FINISH
SPEC No.
FIRST USED ON
DATE DRAWN
BY
CHKD
SCALE
WIDTH
MULT
CUSTOMER DRAWING
THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED
BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY.
UNLESS OTHERWISE SPECIFIED
1. ALL DIMENSIONS IN INCHES [mm]
- TWO PLACE DECIMALS
C
B
A
REV
LBS/M
MATERIAL
SPEC No.
CHANNEL 8
1
TEMPER
0.02 [0.5]
0.005 [0.13]
27520
26637
26568
ECO NUMBER
06/08/15
10/4/10
7/20/10
DATE
PC
RS
RS
BY
TJK
TJK
TJK
APVD
- THREE PLACE DECIMALS
1:2
7/16/09
JGK
RS
12/1/10
TJK
12/1/10
PART No.
APVD
SHEET
1
OF
1
REV
4. THIS PRODUCT IS RoHS COMPLIANT.
REVISIONS
DO NOT SCALE DRAWING
NAME
DB25F TO 8-XLRF, RoHS
DB25FXLRF
C
SolidWorks CAD File
B
