3-5338556-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-5338556-1

3-5338556-1: Description8/8 MOD JACK ASSY SE; CategoryThe connector The connector; File Size397KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-5338556-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-5338556-1	-	-	View	Buy Now

3-5338556-1 Overview

8/8 MOD JACK ASSY SE

3-5338556-1 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks 5 days
Other features	SHIELDED
Board mount options	SPLIT BOARD LOCK
body width	0.476 inch
subject depth	0.748 inch
body length	0.65 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	PHOSPHOR BRONZE
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	2

Preview

Download Datasheet

View All

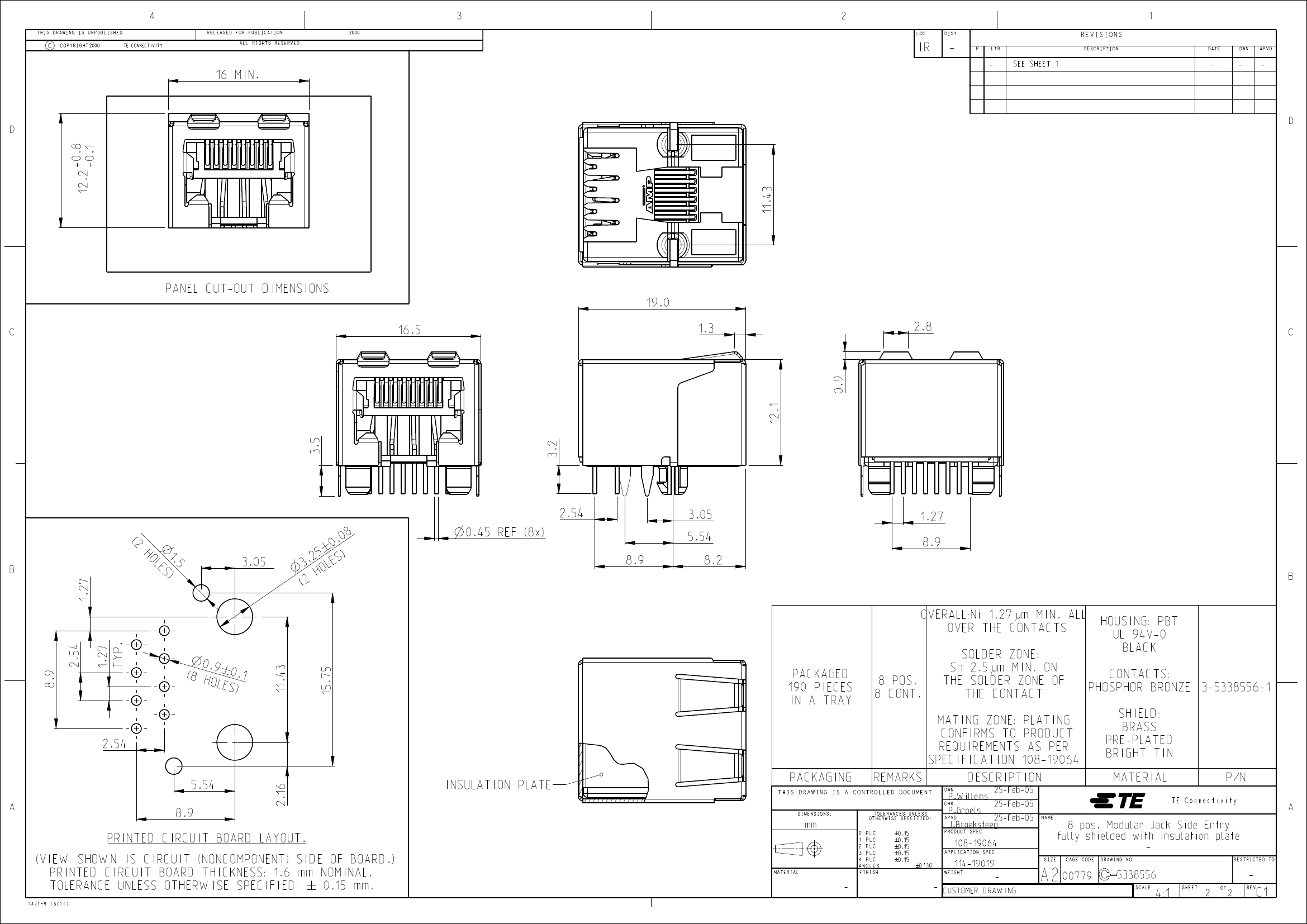

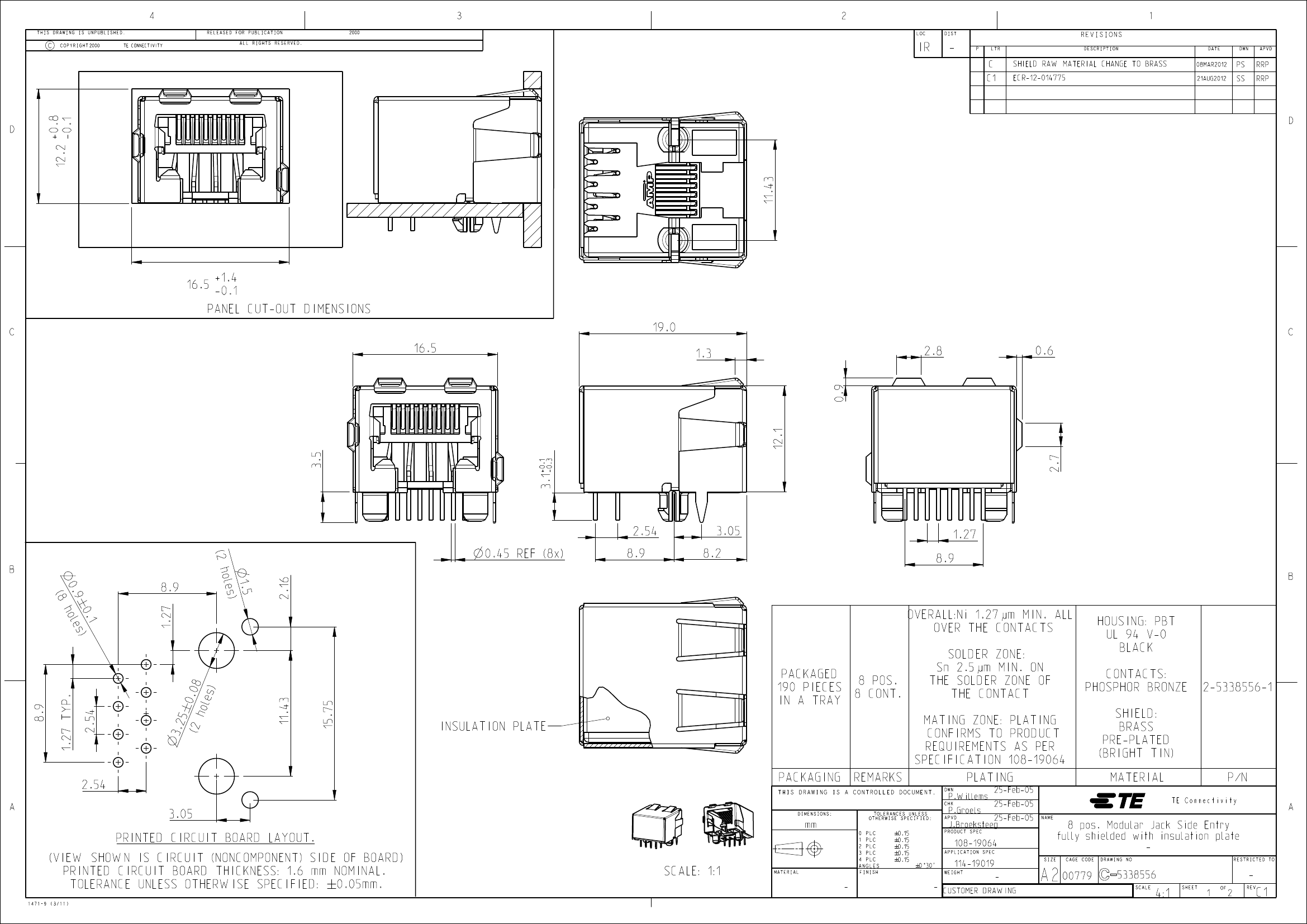

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

LTR

REVISIONS

DESCRIPTION

DATE

DWN

APVD

+0.8

12.2

-0.1

16.5

PANEL CUT-OUT DIMENSIONS

+1.4

-0.1

19.0

16.5

1.3

0.9

2.8

0.6

11.43

3.5

12.1

+0.1

3.1

-0.3

2.54

2.16

3.05

8.2

0.45 REF (8x)

8.9

1.27

8.9

1.27

OVERALL:Ni 1.27µm MIN. ALL

OVER THE CONTACTS

PACKAGED

8 POS.

190 PIECES

8 CONT.

IN A TRAY

INSULATION PLATE

SOLDER ZONE:

Sn 2.5µm MIN. ON

THE SOLDER ZONE OF

THE CONTACT

MATING ZONE: PLATING

CONFIRMS TO PRODUCT

REQUIREMENTS AS PER

SPECIFICATION 108-19064

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

PRODUCT SPEC

NAME

2.7

1.5

)

oles

(2 h

3.2

5 0

.08

hol

es)

1.27 TYP.

11.43

2.54

15.75

8.9

0. s)

0. hol

HOUSING: PBT

UL 94 V-0

BLACK

CONTACTS:

PHOSPHOR BRONZE

SHIELD:

BRASS

PRE-PLATED

(BRIGHT TIN)

MATERIAL

P/N

TE Connectivity

2-5338556-1

2.54

PACKAGING

3.05

PRINTED CIRCUIT BOARD LAYOUT.

THIS DRAWING IS A CONTROLLED DOCUMENT.

REMARKS

PLATING

(VIEW SHOWN IS CIRCUIT (NONCOMPONENT) SIDE OF BOARD)

PRINTED CIRCUIT BOARD THICKNESS: 1.6 mm NOMINAL.

TOLERANCE UNLESS OTHERWISE SPECIFIED: 0.05mm.

1471-9 (3/11)

SCALE: 1:1

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

WEIGHT

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

REV
