Part Number

Search

5-103639-7

Description
08 MTE HDR SRST LATCH .100CL
CategoryThe connector    The connector
File Size255KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5-103639-7 Online Shopping

Suppliers Part Number Price MOQ In stock
5-103639-7 - - View Buy Now

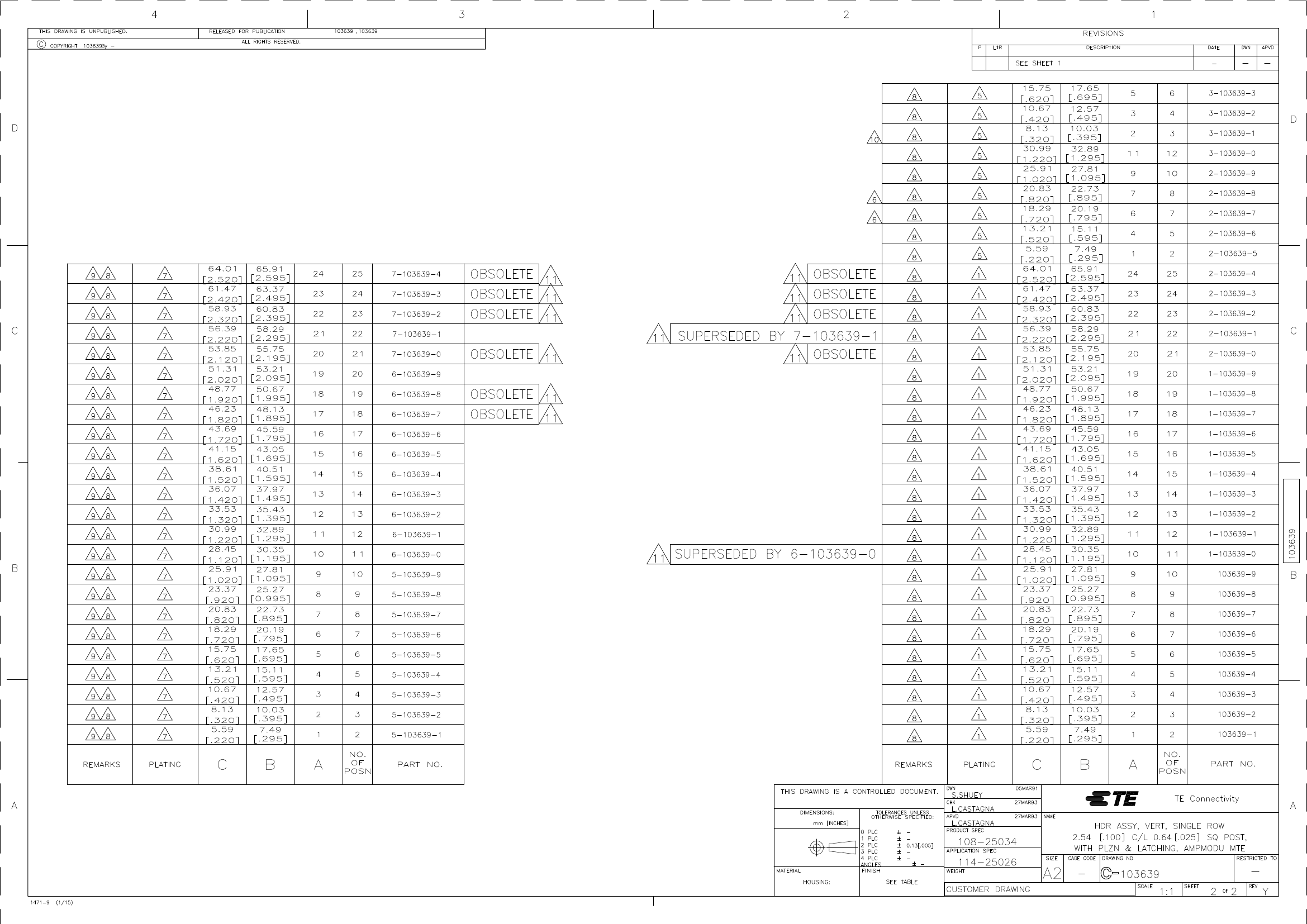

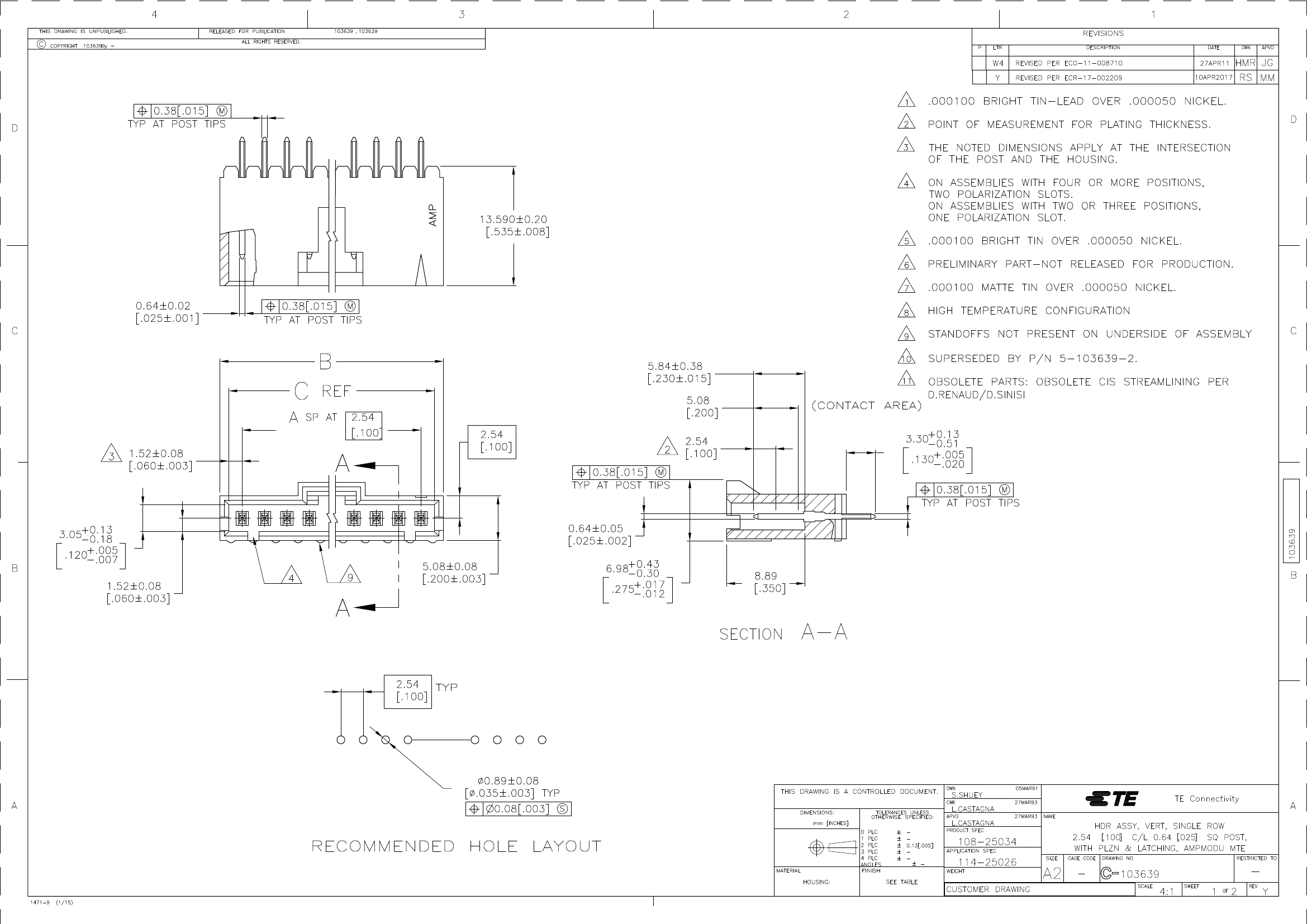

5-103639-7 Overview

08 MTE HDR SRST LATCH .100CL

5-103639-7 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Is SamacsysN
Other featuresAMPMODU, LATCHED, POLARIZED
body width0.275 inch
subject depth0.535 inch
body length0.9 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationMATTE TIN (100) OVER NICKEL (50)
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage600VAC V
Filter functionNO
IEC complianceNO
maximum insertion force3.892 N
Insulation resistance400000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number103639
Plug contact pitch0.1 inch
Mixed contactsNO
Installation option 1LATCH
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness100u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.13 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts8
Evacuation force-minimum value.278 N
Base Number Matches1

5-103639-7 Related Products

5-103639-7 5-103639-4
Description 08 MTE HDR SRST LATCH .100CL 05 MTE HDR SRST LATCH .100CL
Brand Name AMP AMP
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker TE Connectivity TE Connectivity
Reach Compliance Code compliant compliant
Is Samacsys N N
Other features AMPMODU, LATCHED, POLARIZED AMPMODU, LATCHED, POLARIZED
body width 0.275 inch 0.275 inch
subject depth 0.535 inch 0.535 inch
body length 0.9 inch 0.6 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation MATTE TIN (100) OVER NICKEL (50) MATTE TIN (100) OVER NICKEL (50)
Contact completed and terminated Matte Tin (Sn) - with Nickel (Ni) barrier Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR
Contact resistance 15 mΩ 15 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 600VAC V 600VAC V
Filter function NO NO
IEC compliance NO NO
maximum insertion force 3.892 N 3.892 N
Insulation resistance 400000000 Ω 400000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
JESD-609 code e3 e3
MIL compliance NO NO
Manufacturer's serial number 103639 103639
Plug contact pitch 0.1 inch 0.1 inch
Mixed contacts NO NO
Installation option 1 LATCH LATCH
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 1 1
Number of rows loaded 1 1
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -65 °C -65 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
Plating thickness 100u inch 100u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal length 0.13 inch 0.13 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 8 5
Evacuation force-minimum value .278 N .278 N
Base Number Matches 1 1
