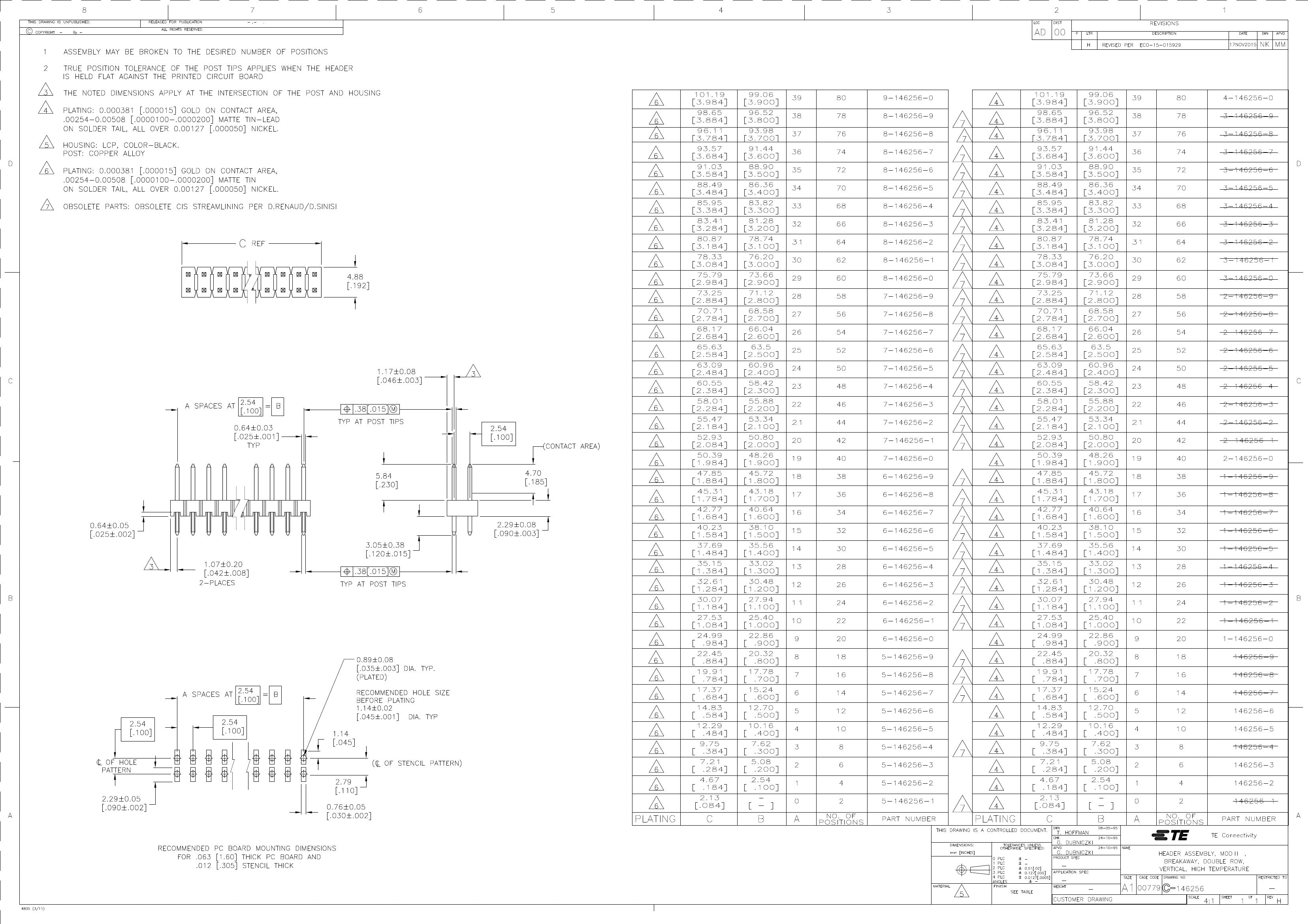

5-146256-3 |
6-146256-0 |
| Description |
06 MODII HDR DRST B/A .100CL L |
20 MODII HDR DRST B/A .100CL L |
| Brand Name |
AMP |
AMP |
| Is it lead-free? |
Lead free |
Lead free |
| Is it Rohs certified? |
conform to |
conform to |
| Reach Compliance Code |
compliant |
compliant |
| Is Samacsys |
N |
N |
| body width |
0.192 inch |
0.192 inch |
| subject depth |
0.09 inch |
0.09 inch |
| body length |
0.284 inch |
0.984 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
| Contact completed and terminated |
Matte Tin (Sn) - with Nickel (Ni) barrier |
Matte Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender |
MALE |
MALE |
| Contact material |
PHOSPHOR BRONZE |
PHOSPHOR BRONZE |
| contact mode |
RECTANGULAR |
RECTANGULAR |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
| DIN compliance |
NO |
NO |
| Dielectric withstand voltage |
1050VAC V |
1050VAC V |
| Filter function |
NO |
NO |
| IEC compliance |
NO |
NO |
| Insulation resistance |
5000000000 Ω |
5000000000 Ω |
| Insulator color |
BLACK |
BLACK |
| insulator material |
LIQUID CRYSTAL POLYMER (LCP) |
LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code |
e3 |
e3 |
| MIL compliance |
NO |
NO |
| Plug contact pitch |
0.1 inch |
0.1 inch |
| Match contact row spacing |
0.1 inch |
0.1 inch |
| Mixed contacts |
NO |
NO |
| Installation method |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
| PCB row number |
2 |
2 |
| Number of rows loaded |
2 |
2 |
| Maximum operating temperature |
105 °C |
105 °C |
| Minimum operating temperature |
-65 °C |
-65 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
2.54 mm |
2.54 mm |
| Plating thickness |
15u inch |
15u inch |
| Rated current (signal) |
3 A |
3 A |
| Guideline |
UL, CSA |
UL, CSA |
| reliability |
COMMERCIAL |
COMMERCIAL |
| Terminal length |
0.12 inch |
0.12 inch |
| Terminal pitch |
2.54 mm |
2.54 mm |
| Termination type |
SOLDER |
SOLDER |
| Total number of contacts |
6 |
20 |
| Base Number Matches |
1 |
1 |
