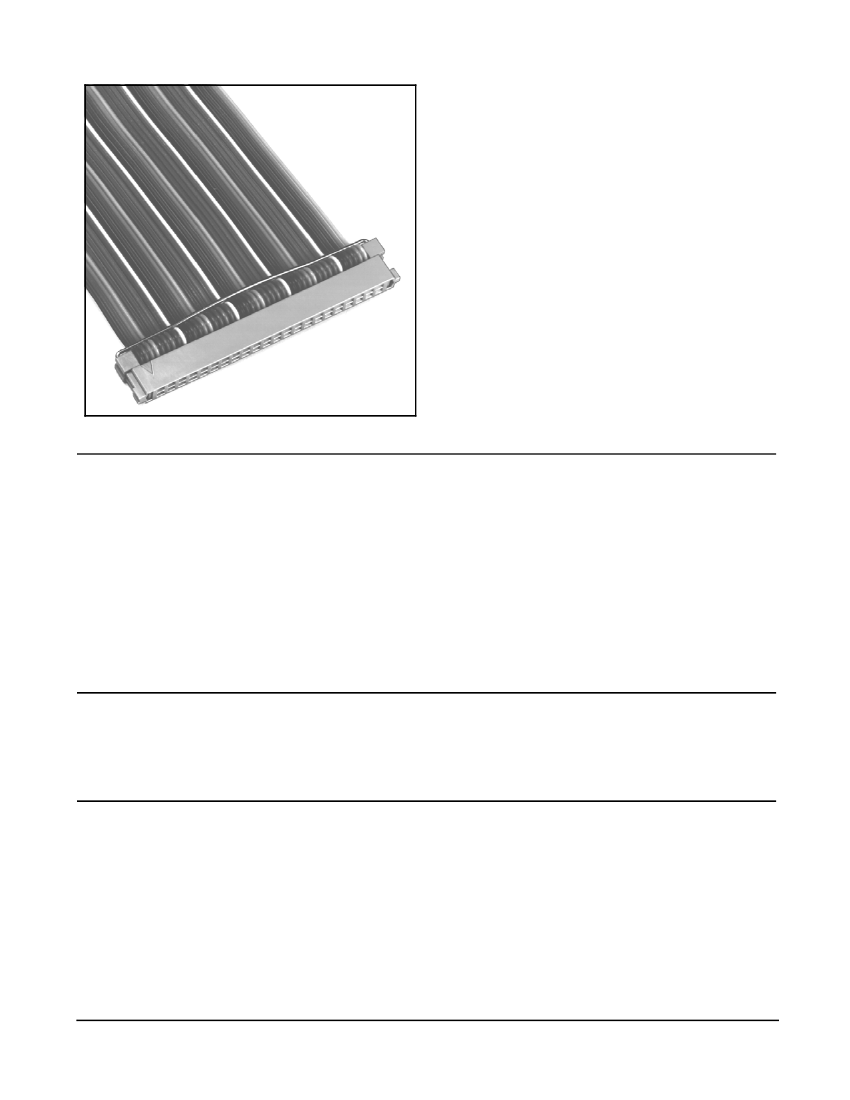

"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M.
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
O
N
TI
Material:
Flammability:
Color:
Contact Material:
Plating:
Underplating:
Wiping Area:
Wire Accommodation:
100
μ″
[ 2.54
μm
] Nickel
10
μ″
[ 0.25
μm
] Gold
28 AWG Solid or Stranded
Marking:
3M Logo, Part Number Identification and Orientation Triangle
-40°C to +85°C
N
U
Glass Filled Polyester (PBT)
UL 94V-0
Gray
Copper Alloy
ED
3/
2
01
1
TS-0322-
Sheet 1 of 2
3M
™

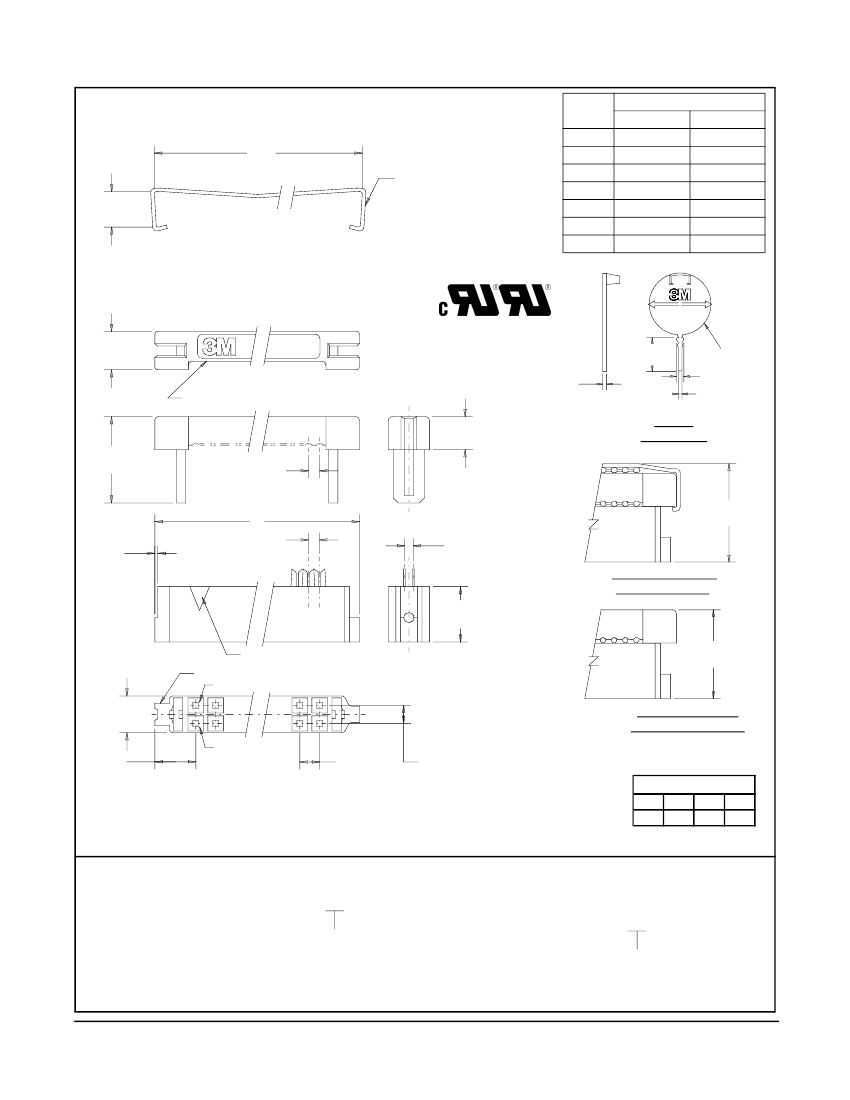

Compact Wiremount Socket
.100″
×
.075″ for .050″ Pitch Cable
501 Series
Contact
Quantity
16
B
Material:
Stainless Steel Wire
.31
[ 7.9 ]
20
26
34
40
44
Optional 3448-501XX Strain Relief
50
Dimensions
A
1.11 [ 28.3 ]
1.30 [ 33.0 ]
1.61 [ 41.0 ]
2.01 [ 51.0 ]
2.31 [ 58.7 ]
2.51 [ 63.8 ]
2.81 [ 71.4 ]
B
0.99 [ 25.1 ]
1.17 [ 29.7 ]
1.48 [ 37.7 ]
1.89 [ 47.9 ]
2.19 [ 55.5 ]
2.39 [ 60.6 ]
2.69 [ 68.2 ]
Material: Gray Polyester (PBT)
.18
[ 4.6 ]
XXXXX
Recessed for Cable Exit
.15
[ 3.8 ]
8/
2
.032
[ 0.81 ]
Material: Gray
Polyester (PBT)
3/
2
U
ED
.05
[ 1.27 ]
.41
[ 10.4 ]
.050 Typ
[ 1.27 ]
A
.02
[ 0.5 ]
.050 Ref
[ 1.27 ]
N
TI
.26
[ 6.6 ]
.41 Ref
[ 10.4 ]
Orientation Triangle
End Polarization
Position 1
.18
[ 4.6]
O
N
C
Position 2
.21 Ref
[ 5.3 ]
IS
.100
[ 2.54 ]
.075
[ 1.91 ]
D
01
1
.24
[ 6.1 ]
.026
[ 0.66 ]
3435
Breakaway
Tab
.051
[ 1.30 ]
3435-0
Keying Plug
(Optional: Order Separately)
.500 Ref
[ 12.7 ]
Assembled Height
with Strain Relief
Assembled Height
Without Strain Relief
In c h
[m m ]
T o le ra n c e U n le s s N o te d
.0
in c h
± .1
.0 0
.0 0 0
± .0 1 ± .0 0 5
[ ] D im e n s io n s fo r R e fe re n c e
O n ly
Ordering Information
Socket
501XX-B000EL
Contact Quantity:
See Table
Strain Relief
(Order Separately)
3448-501XX
Contact Quantity:
See Table
TS-0322-
Sheet 2 of 2
Application tools: 3M™
Press,
3640 (or equivalent), 3M™
Locator Plate,
3443-110, 3M™Platen, 3442-9.
Recommended mating to 3M™
Header, Right Angle,
502XX
Series.
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
