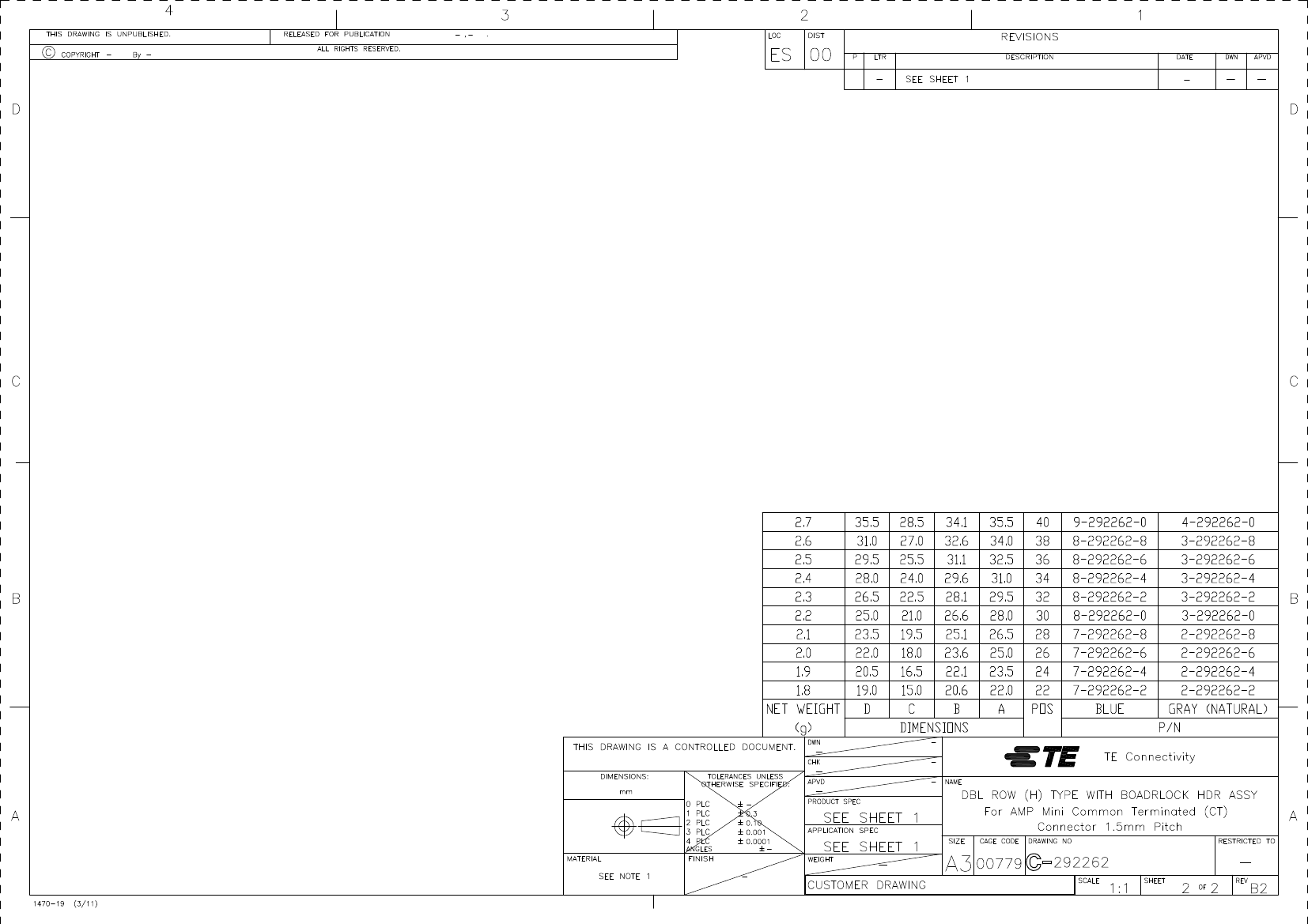

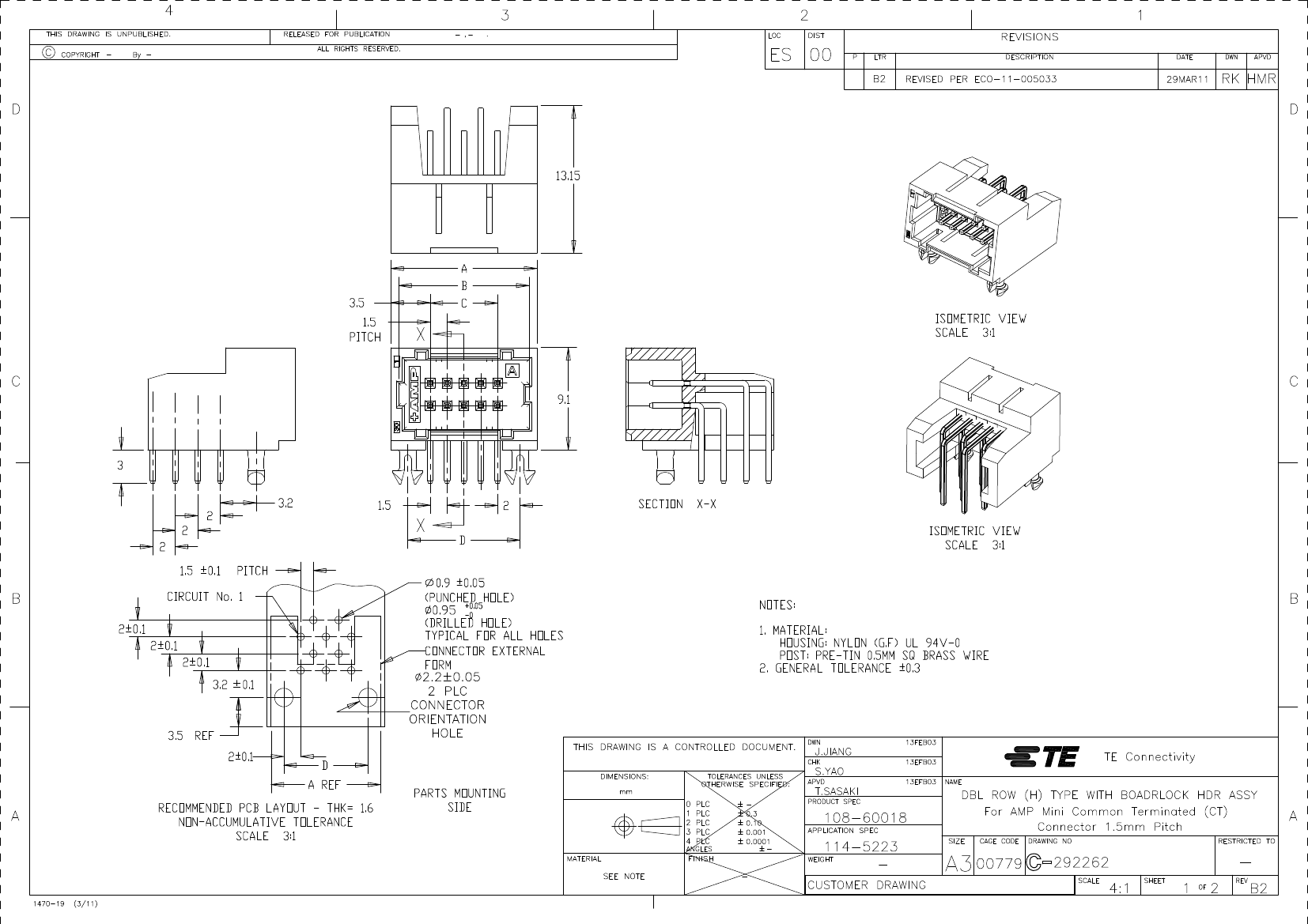

Preview

2-292262-2: DescriptionDBL ROW (H) DIP TYPE WITH BOAR; CategoryThe connector The connector; File Size108KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-292262-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-292262-2	-	-	View	Buy Now

2-292262-2 Overview

DBL ROW (H) DIP TYPE WITH BOAR

2-292262-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.358 inch
subject depth	0.518 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Insulation resistance	100000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	292262
Plug contact pitch	0.059 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Plating thickness	39u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.4986 mm
Termination type	SOLDER
Total number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

2-292262-2 Related Products

	2-292262-2	3-292262-4	2-292262-4	2-292262-6	3-292262-0	3-292262-2
Description	DBL ROW (H) DIP TYPE WITH BOAR	DBL ROW (H) DIP TYPE WITH BOAR	DBL ROW (H) DIP TYPE WITH BOAR	DBL ROW (H) DIP TYPE WITH BOAR	(3-292262-0) DBL ROW (H) DIP TYPE WITH BOAR	DBL ROW (H) DIP TYPE WITH BOAR
Brand Name	AMP	AMP	AMP	AMP	AMP	AMP
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	BOARD LOCK	SPLIT BOARD LOCK
body width	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch	0.358 inch
subject depth	0.518 inch	0.518 inch	0.518 inch	0.518 inch	0.518 inch	0.518 inch
body length	0.866 inch	1.22 inch	0.925 inch	0.984 inch	1.102 inch	1.161 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	STAGGERED	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	NATURAL	GRAY
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED POLYAMIDE	GLASS FILLED NYLON
Plug contact pitch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4	4	4
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	221 °C	105 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-22 °C	-30 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	39u inch	39u inch	39u inch	39u inch	39.37u inch	39u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	CSA, LR, U	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	1.4986 mm	1.4986 mm	1.4986 mm	1.4986 mm	1.5 mm	1.4986 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	22	34	24	26	30	32
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	-	500VAC V
Manufacturer's serial number	292262	292262	292262	292262	-	292262
Base Number Matches	1	1	1	1	-	1
