917782-1 datasheet, PDF - EEWORLD Datasheet

917782-1: Description2.5 S.D.L POST HDR ASY 4P STD; CategoryThe connector The connector; File Size200KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

917782-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	917782-1	-	-	View	Buy Now

2.5 S.D.L POST HDR ASY 4P STD

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	COMPATIBLE CONTACTS: 917683; 917684
body width	0.322 inch
subject depth	0.386 inch
body length	0.492 inch
Body/casing type	RECEPTACLE
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1100VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	5.7824 N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.098 inch
Plug information	917688-1
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE66
Terminal length	0.126 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N
Base Number Matches	2

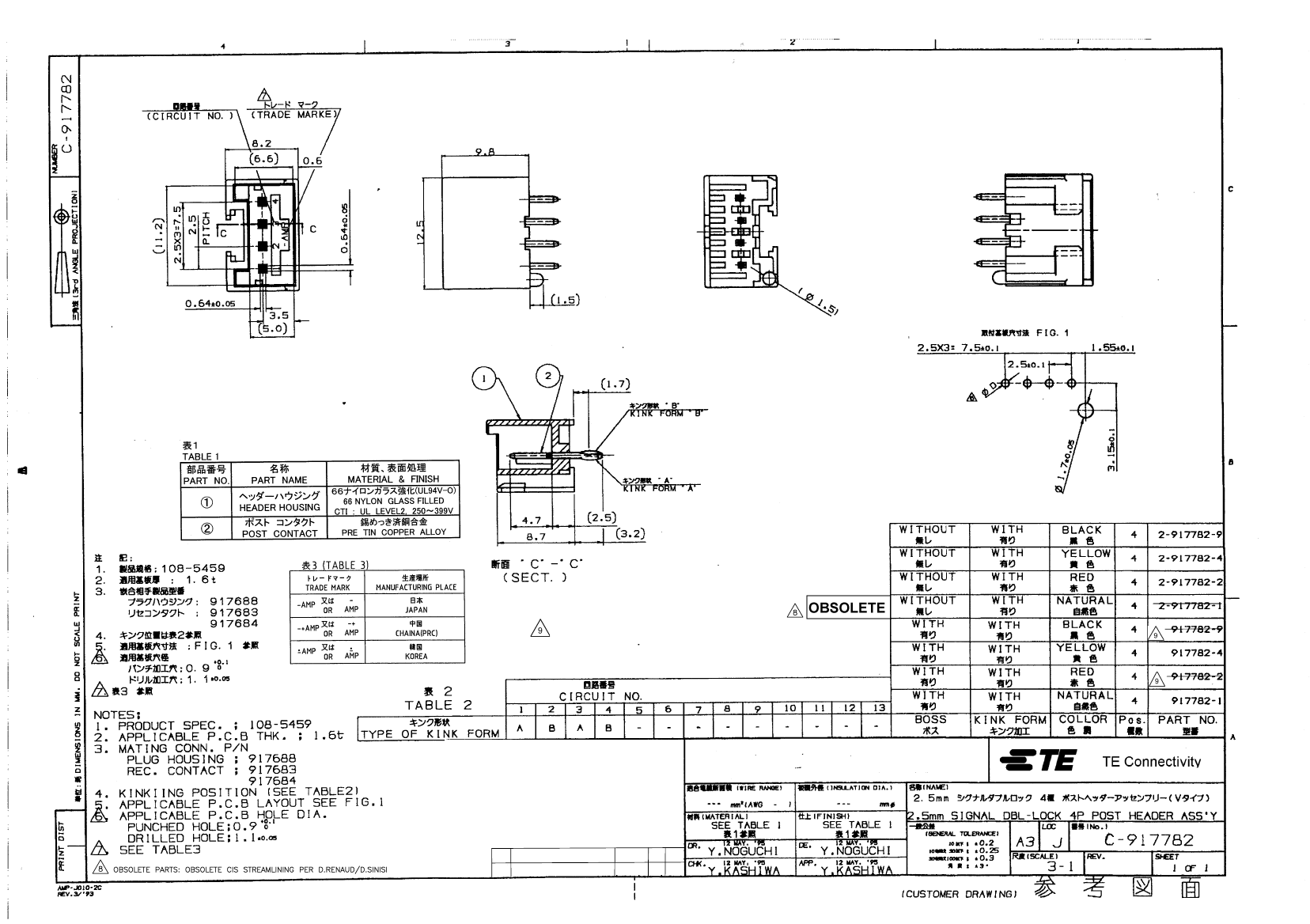

OBSOLETE : 917782-2 AND -9 .

LTR

REVISED PER ECR-15-018479

DESCRIPTION

05MAR2016 NK

DATE

DWN APVD
