2-1586040-2

Description
22P VAL-U-LOK VRT HDR W/P V0
CategoryThe connector    The connector
File Size114KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

2-1586040-2 Online Shopping

Suppliers Part Number Price MOQ In stock
2-1586040-2 - - View Buy Now

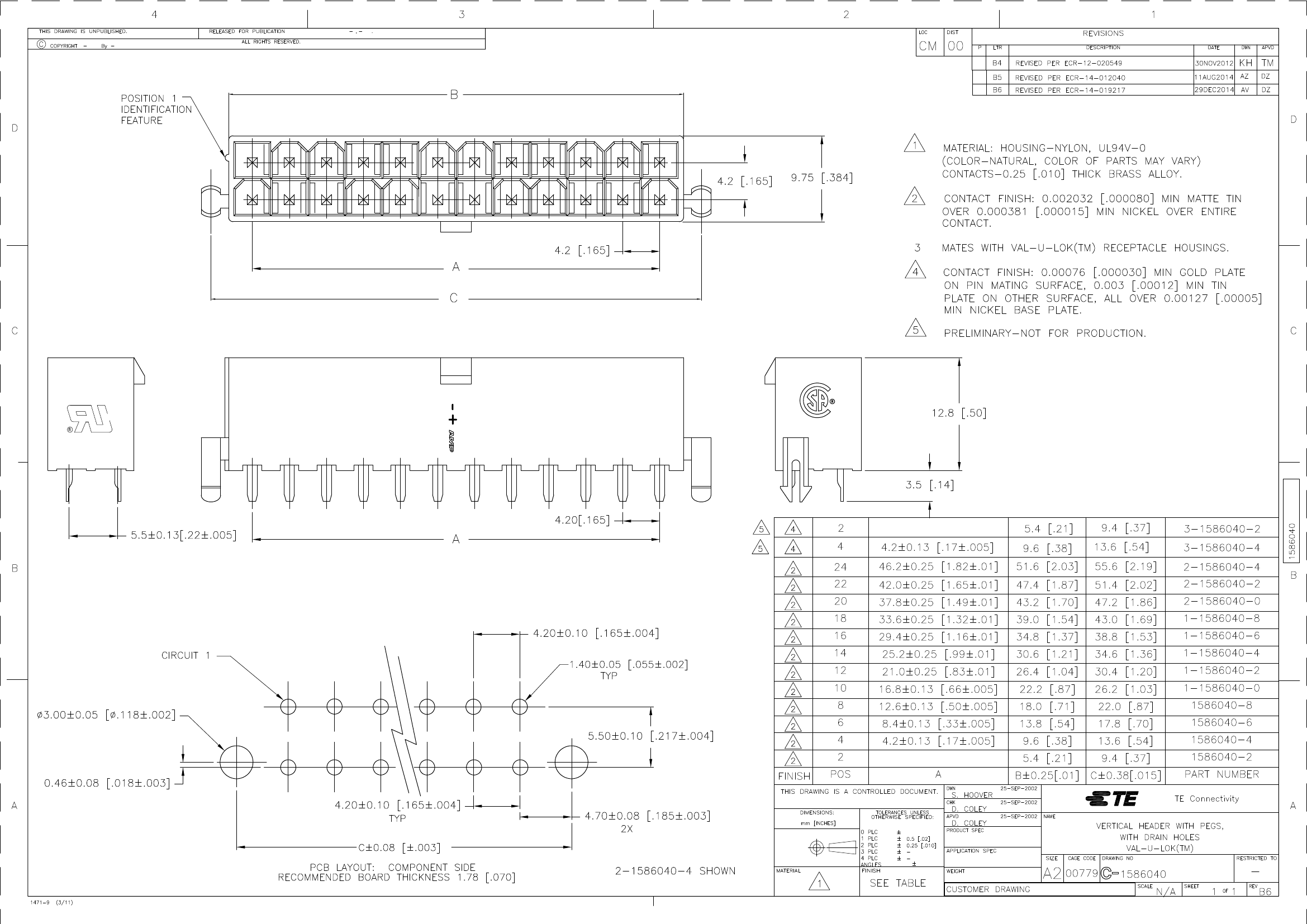

2-1586040-2 Overview

22P VAL-U-LOK VRT HDR W/P V0

2-1586040-2 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time23 weeks 5 days
Is SamacsysN
Other featuresVAL-U-LOK
Board mount optionsSPLIT BOARD LOCK
body width0.384 inch
subject depth0.504 inch
body length1.866 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability50 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Insulation resistance1000000000 Ω
insulator materialNYLON
MIL complianceNO
Plug contact pitch0.165 inch
Match contact row spacing0.165 inch
Mixed contactsNO
Installation option 1GUIDE SLOT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.191 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)9 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch4.2 mm
Termination typeSOLDER
Total number of contacts22
UL Flammability Code94V-0
Evacuation force-minimum value.5004 N
Base Number Matches1

2-1586040-2 Related Products

2-1586040-2 2-1586040-4
Description 22P VAL-U-LOK VRT HDR W/P V0 24P VAL-U-LOK VRT HDR W/P V0
Brand Name AMP AMP
Is it Rohs certified? conform to conform to
Maker TE Connectivity TE Connectivity
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Factory Lead Time 23 weeks 5 days 32 weeks 4 days
Is Samacsys N N
Other features VAL-U-LOK VAL-U-LOK
Board mount options SPLIT BOARD LOCK SPLIT BOARD LOCK
body width 0.384 inch 0.384 inch
subject depth 0.504 inch 0.504 inch
body length 1.866 inch 2.031 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE
Contact material BRASS BRASS
contact mode RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 1500VAC V 1500VAC V
Durability 50 Cycles 50 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force 6.672 N 6.672 N
Insulation resistance 1000000000 Ω 1000000000 Ω
insulator material NYLON NYLON
MIL compliance NO NO
Plug contact pitch 0.165 inch 0.165 inch
Match contact row spacing 0.165 inch 0.165 inch
Mixed contacts NO NO
Installation option 1 GUIDE SLOT GUIDE SLOT
Installation option 2 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 4.191 mm 4.191 mm
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 9 A 9 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Terminal length 0.138 inch 0.138 inch
Terminal pitch 4.2 mm 4.2 mm
Termination type SOLDER SOLDER
Total number of contacts 22 24
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .5004 N .5004 N
Base Number Matches 1 1
