3-794630-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-794630-8

Preview

3-794630-8: Description08P MICRO MNL ASSY VRT HDR LF; CategoryThe connector The connector; File Size178KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-794630-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-794630-8	-	-	View	Buy Now

3-794630-8 Overview

08P MICRO MNL ASSY VRT HDR LF

3-794630-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	8 way 2 row vertical header Mate-N-Lok
Other features	POLARIZATION
body width	0.27 inch
subject depth	0.364 inch
body length	0.63 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Plug information	794617-8
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.125 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.695 N

Preview

Download Datasheet

View All

4

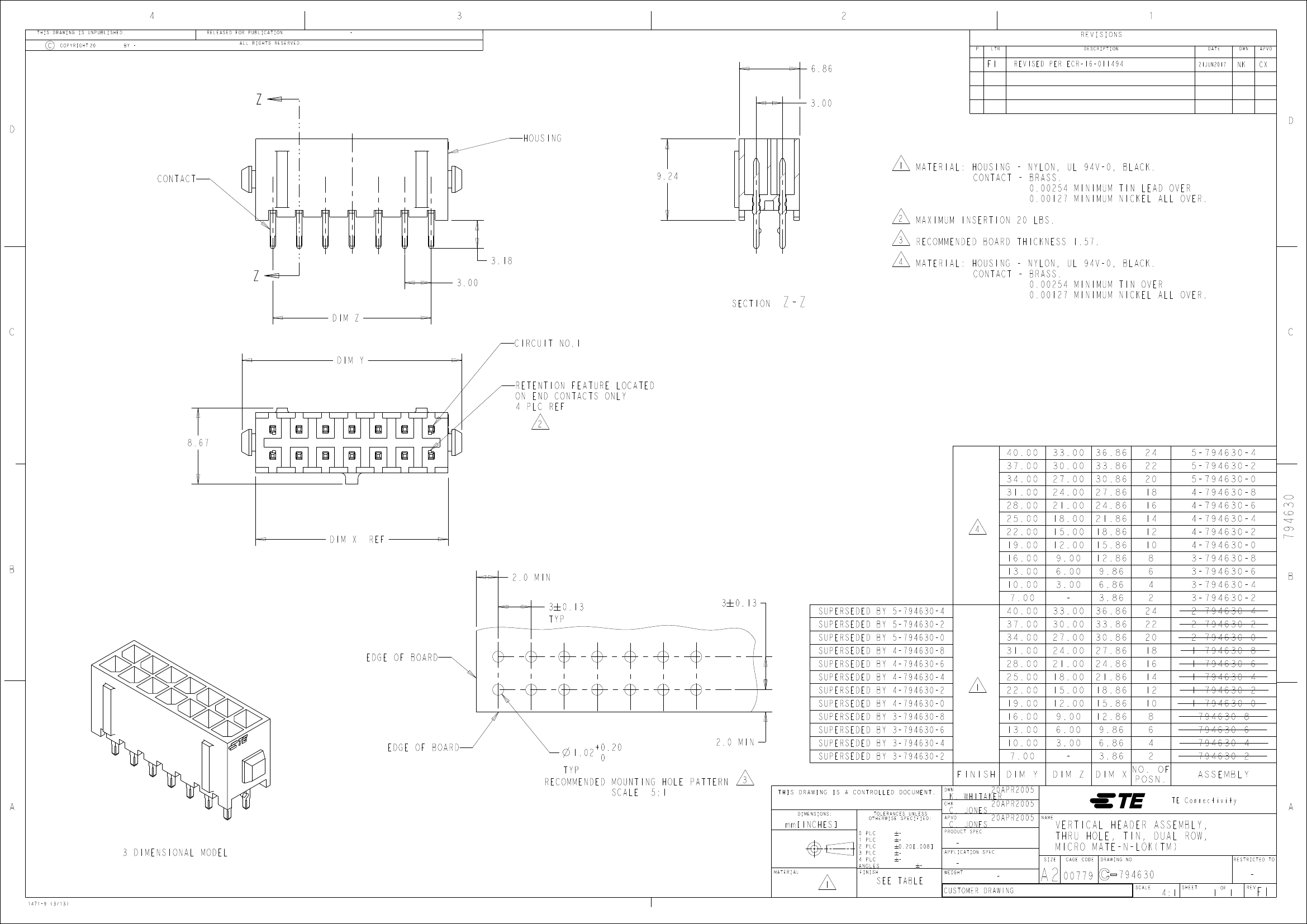

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

-

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT 20

6.86

3.00

D

F1

REVISED PER ECR-16-011494

21JUN2017

NK

CX

D

HOUSING

9.24

1

CONTACT

MATERIAL: HOUSING - NYLON, UL 94V-0, BLACK.

CONTACT - BRASS.

0.00254 MINIMUM TIN LEAD OVER

0.00127 MINIMUM NICKEL ALL OVER.

MAXIMUM INSERTION 20 LBS.

RECOMMENDED BOARD THICKNESS 1.57.

MATERIAL: HOUSING - NYLON, UL 94V-0, BLACK.

CONTACT - BRASS.

0.00254 MINIMUM TIN OVER

0.00127 MINIMUM NICKEL ALL OVER.

C

2

3

3.18

3.00

DIM Z

CIRCUIT NO.1

DIM Y

RETENTION FEATURE LOCATED

ON END CONTACTS ONLY

4 PLC REF

2

4

SECTION

Z-Z

C

8.67

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

33.00

30.00

27.00

24.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

DIM Z

30.00

-

21.00

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM X

3.86

24

22

20

18

16

14

10

8

6

4

24

22

20

16

14

12

10

8

6

4

NO. OF

POSN.

2

18

2

12

5-794630-4

5-794630-2

5-794630-0

4-794630-6

4-794630-4

4-794630-2

4-794630-0

3-794630-8

3-794630-6

3-794630-4

3-794630-2

2-794630-4

2-794630-0

1-794630-8

1-794630-6

1-794630-4

1-794630-2

1-794630-0

794630-8

794630-6

794630-4

794630-2

ASSEMBLY

TE Connectivity

DIM X

B

REF

2.0 MIN

3 0.13

TYP

3 0.13

SUPERSEDED BY 5-794630-4

SUPERSEDED BY 5-794630-2

SUPERSEDED BY 5-794630-0

SUPERSEDED BY 4-794630-8

SUPERSEDED BY 4-794630-6

SUPERSEDED BY 4-794630-4

SUPERSEDED BY 4-794630-2

SUPERSEDED BY 4-794630-0

SUPERSEDED BY 3-794630-8

SUPERSEDED BY 3-794630-6

SUPERSEDED BY 3-794630-4

SUPERSEDED BY 3-794630-2

4

13.00

10.00

40.00

37.00

34.00

31.00

28.00

1

25.00

22.00

19.00

16.00

13.00

10.00

7.00

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

7.00

2-794630-2

EDGE OF BOARD

A

2.0 MIN

+0.20

1.02

0

TYP

3

RECOMMENDED MOUNTING HOLE PATTERN

SCALE 5:1

DIM Y

mm[INCHES]

3 DIMENSIONAL MODEL

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.20[.008]

-

20APR2005

K. WHITAKER

CHK

20APR2005

C. JONES

APVD

20APR2005

C. JONES

PRODUCT SPEC

APPLICATION SPEC

NAME

-

1

1471-9 (3/13)

SEE TABLE

WEIGHT

-

CUSTOMER DRAWING

A2

00779

SIZE

VERTICAL HEADER ASSEMBLY,

THRU HOLE, TIN, DUAL ROW,

MICRO MATE-N-LOK(TM)

CAGE CODE

DRAWING NO

RESTRICTED TO

794630

SCALE

4:1

SHEET

1

OF

1

REV

-

F1

794630

B

A

4-794630-8

3-794630-8 Related Products

	3-794630-8	3-794630-4	3-794630-6
Description	08P MICRO MNL ASSY VRT HDR LF	04P MICRO MNL ASSY VRT HDR LF	Number of Pins: 6 Connector Type: Header Series: - Pitch: 0.118" (3.00mm) Contact Type: Male Pin 6 Position Header Connector Pitch 3.00mm Through Hole Tin
Brand Name	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Other features	POLARIZATION	POLARIZATION	POLARIZATION
body width	0.27 inch	0.27 inch	0.27 inch
subject depth	0.364 inch	0.364 inch	0.364 inch
body length	0.63 inch	0.394 inch	0.512 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	POWER CONNECTOR	POWER CONNECTOR	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	NYLON	NYLON	NYLON
MIL compliance	NO	NO	NO
Plug contact pitch	0.118 inch	0.118 inch	0.118 inch
Match contact row spacing	0.118 inch	0.118 inch	0.118 inch
Plug information	794617-8	794617-4	794617-6
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.9972 mm	2.9972 mm	2.9972 mm
Plating thickness	100u inch	100u inch	100u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	5 A	5 A	5 A
Guideline	CSA,UL,VDE	CSA,UL,VDE	CSA,UL,VDE
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	NYLON	NYLON	NYLON
Terminal length	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.9972 mm	2.9972 mm	2.9972 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	8	4	6
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.695 N	.695 N	.695 N
ECCN code	EAR99	EAR99	-
Base Number Matches	-	2	2
