1744057-6

Description
3.96 EP HDR ASSY 6P W/PEGS
CategoryThe connector    The connector
File Size86KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

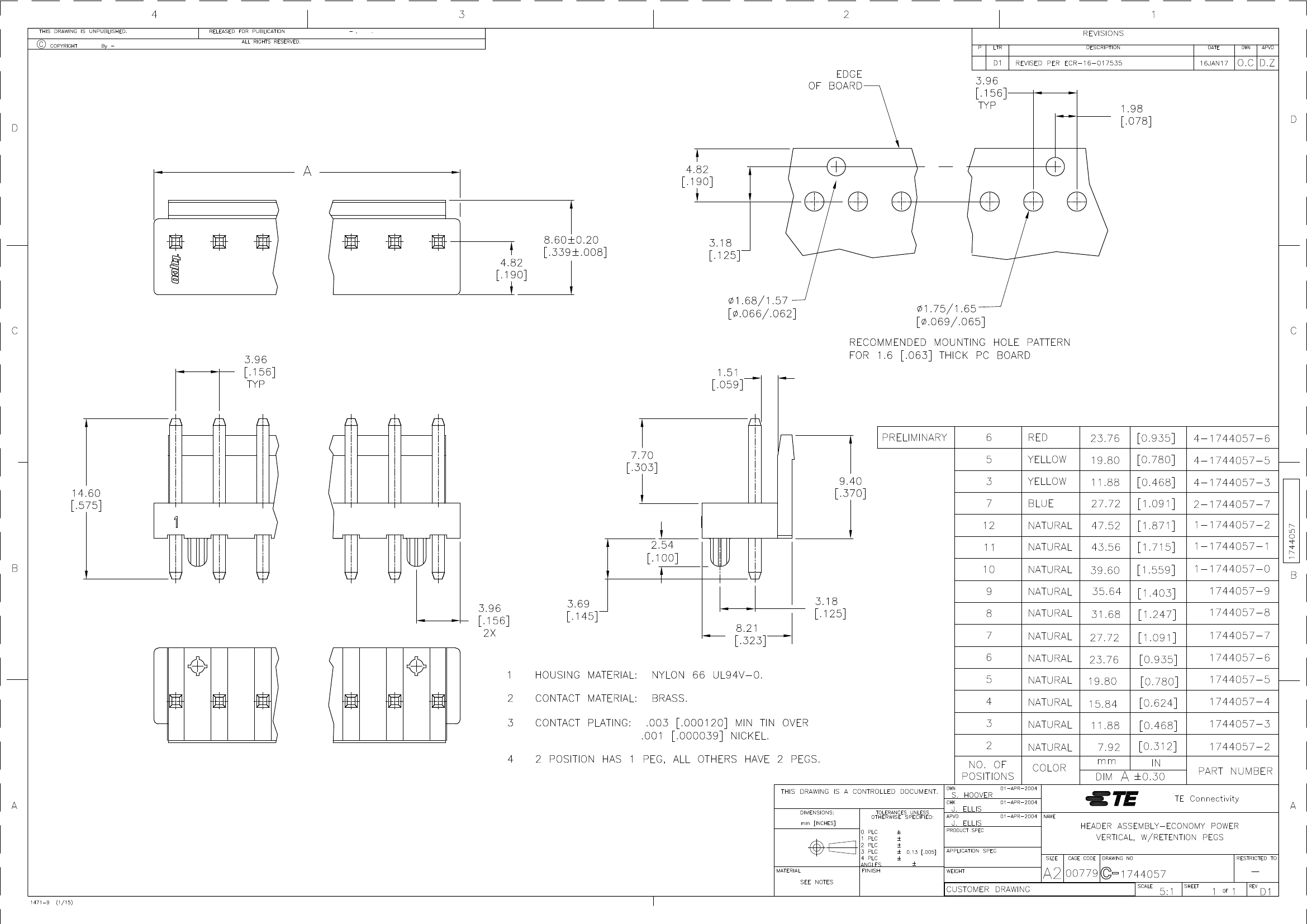

Download Datasheet Parametric Compare View All

1744057-6 Online Shopping

Suppliers Part Number Price MOQ In stock
1744057-6 - - View Buy Now

1744057-6 Overview

3.96 EP HDR ASSY 6P W/PEGS

1744057-6 Parametric

Parameter NameAttribute value
Brand NameTE Connectivity
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsPEG
body width0.339 inch
subject depth0.37 inch
body length0.935 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact arrangementS0P6
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Durability500 Cycles
maximum insertion force9.7856 N
Insulation resistance500000000 Ω
Insulator colorNATURAL
insulator materialNYLON
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Plating thickness120u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.145 inch
Termination typeSOLDER
Total number of contacts6
Evacuation force-minimum value.973 N
Base Number Matches1

1744057-6 Related Products

1744057-6 1744057-9 1744057-4 1744057-3 1-1744057-0 1744057-7 1744057-5 1744057-2 1744057-8 2-1744057-7
Description 3.96 EP HDR ASSY 6P W/PEGS 3.96 EP HDR ASSY 9P W/PEGS 3.96 EP HDR ASSY 4P W/PEGS 3.96 EP HDR ASSY 3P W/PEGS (1-1744057-0) 3.96 EP HDR ASSY 10P W/PEGS 3.96 EP HDR ASSY 7P W/PEGS 3.96 EP HDR ASSY 5P W/PEGS 3.96 EP HDR ASSY 2P W/PEGS 3.96 EP HDR ASSY 8P W/PEGS 3.96 EP HDR ASSY 7P W/PEGS, BLUE
Brand Name TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant unknown
Board mount options PEG PEG PEG PEG PEG PEG PEG PEG PEG PEG
body width 0.339 inch 0.339 inch 0.339 inch 0.339 inch 0.339 inch 0.339 inch 0.339 inch 0.339 inch 0.339 inch 0.339 inch
subject depth 0.37 inch 0.37 inch 0.37 inch 0.37 inch 0.429 inch 0.37 inch 0.37 inch 0.37 inch 0.37 inch 0.37 inch
body length 0.935 inch 1.403 inch 0.624 inch 0.468 inch 1.559 inch 1.091 inch 0.78 inch 0.312 inch 1.247 inch 1.091 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR RECTANGULAR POWER CONNECTOR
Contact arrangement S0P6 S0P9 S0P4 S0P3 S0P10 S0P7 S0P5 S0P2 S0P8 S0P7
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED SN ON NI
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED BRASS
Contact resistance 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles
maximum insertion force 9.7856 N 9.7856 N 9.7856 N 9.7856 N 9.7856 N 9.7856 N 9.7856 N 9.7856 N 9.7856 N 9.7856 N
Insulation resistance 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω 500000000 Ω
Insulator color NATURAL NATURAL NATURAL NATURAL NATURAL NATURAL NATURAL NATURAL NATURAL BLUE
insulator material NYLON NYLON NYLON NYLON POLYAMIDE NYLON NYLON NYLON NYLON NYLON
Mixed contacts YES YES YES YES NO YES YES YES YES YES
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE ONE
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -25 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Plating thickness 120u inch 120u inch 120u inch 120u inch 118.11u inch 120u inch 120u inch 120u inch 120u inch 120u inch
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.145 inch 0.145 inch 0.145 inch 0.145 inch 0.142 inch 0.145 inch 0.145 inch 0.145 inch 0.145 inch 0.145 inch
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 6 9 4 3 10 7 5 2 8 7
Evacuation force-minimum value .973 N .973 N .973 N .973 N .973 N .973 N .973 N .973 N .973 N .973 N
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free -
Maker TE Connectivity TE Connectivity TE Connectivity TE Connectivity - TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity
ECCN code EAR99 - EAR99 EAR99 - EAR99 - - EAR99 EAR99
Dielectric withstand voltage 1500VAC V 1500VAC V 1500VAC V 1500VAC V - 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V
Base Number Matches 1 1 1 1 - 1 1 1 1 -
