1744036-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1744036-4

1744036-4: Description04P ECONOMY POWER .200 CL HSG; CategoryThe connector The connector; File Size163KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1744036-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1744036-4	-	-	View	Buy Now

1744036-4 Overview

04P ECONOMY POWER .200 CL HSG

1744036-4 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.283 inch
subject depth	0.524 inch
body length	0.754 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

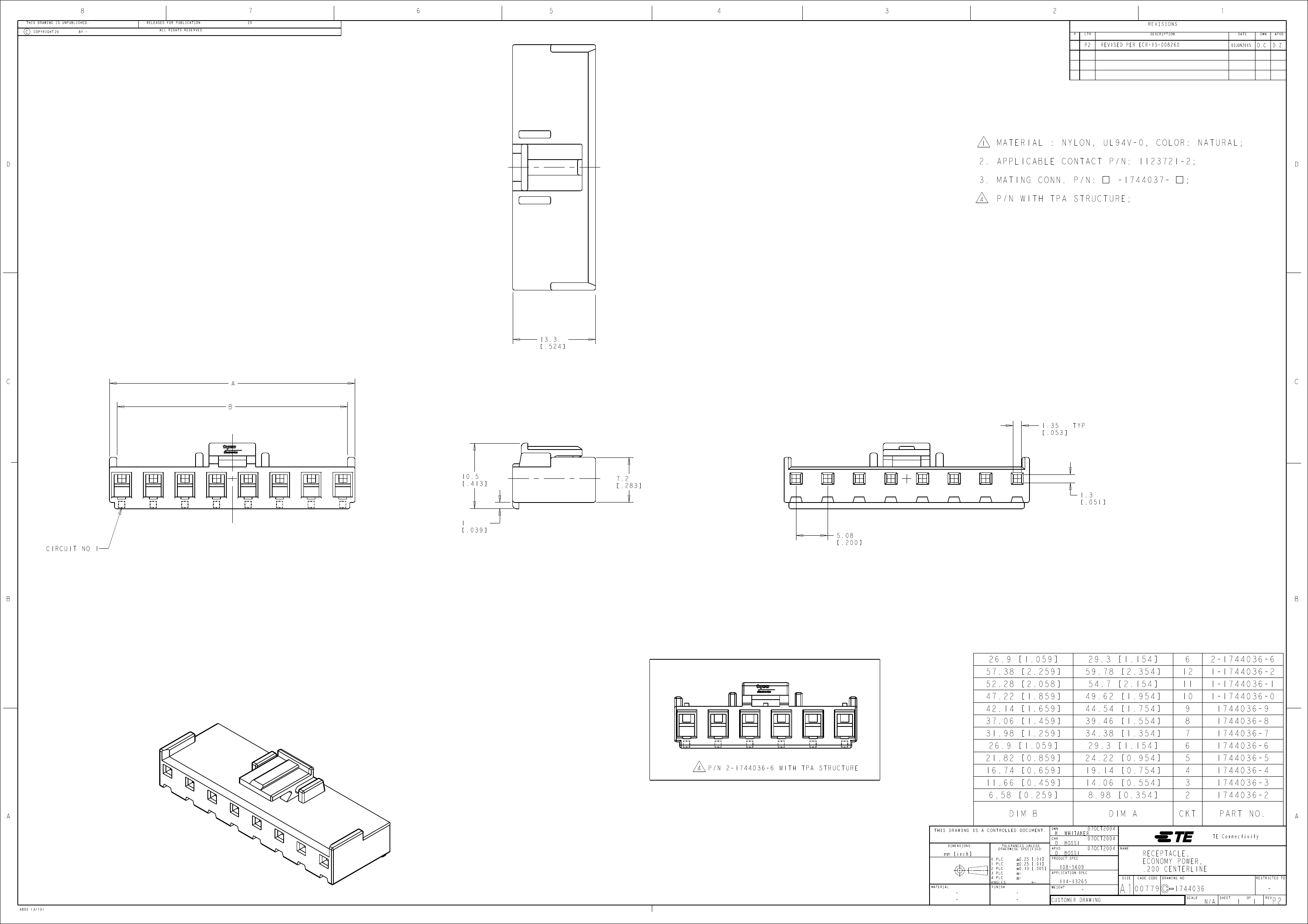

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-15-008260

03JUN2015

O.C

D.Z

MATERIAL : NYLON, UL94V-0, COLOR: NATURAL;

2. APPLICABLE CONTACT P/N: 1123721-2;

3. MATING CONN. P/N:

-1744037-

o ;

P/N WITH TPA STRUCTURE;

13.3

[ .524 ]

1.35

TYP

[ .053 ]

10.5

[ .413 ]

7.2

[ .283 ]

1.3

[ .051 ]

[ .039 ]

CIRCUIT NO 1

5.08

[ .200 ]

57.38

52.28

47.22

42.14

37.06

31.98

21.82

16.74

11.66

26.9 [ 1.059 ]

[ 2.259 ]

[ 2.058 ]

[ 1.859 ]

[ 1.659 ]

[ 1.459 ]

[ 1.259 ]

[ 0.859 ]

[ 0.659 ]

[ 0.459 ]

59.78

49.62

44.54

39.46

34.38

24.22

19.14

14.06

29.3 [ 1.154 ]

54.7 [ 2.154 ]

[ 2.354 ]

[ 1.954 ]

[ 1.754 ]

[ 1.554 ]

[ 1.354 ]

[ 0.954 ]

[ 0.754 ]

[ 0.554 ]

2-1744036-6

1-1744036-2

1-1744036-1

1-1744036-0

1744036-9

1744036-8

1744036-7

1744036-6

1744036-5

1744036-4

1744036-3

PART NO.

TE Connectivity

26.9 [ 1.059 ]

29.3 [ 1.154 ]

P/N 2-1744036-6 WITH TPA STRUCTURE

6.58 [ 0.259 ]

8.98 [ 0.354 ]

1744036-2

DIM B

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

DIM A

K. WHITAKER

D. BOSSI

108-5609

07OCT2004

NAME

CKT

mm [inch]

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.25 [.01]

0.13 [.005]

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

114-13265

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

RECEPTACLE,

ECONOMY POWER,

.200 CENTERLINE

DRAWING NO

RESTRICTED TO

1744036

SCALE

4805 (3/13)

N/A

SHEET

REV

1744036-4 Related Products

	1744036-4	51760-10102004CB	1744036-5	1744036-3	1744036-7	FS2DR77U5159MLF	1744036-8	1744036-2	Q16F5CPKKR12A-0ST	1744036-9
Description	04P ECONOMY POWER .200 CL HSG	Board Connector, Female, Right Angle, Press Fit Terminal, Guide Pin, Receptacle	05P ECONOMY POWER .200 CL HSG	03P ECONOMY POWER .200 CL HSG	07P ECONOMY POWER .200 CL HSG	Cable Assembly,	08P ECONOMY POWER .200 CL HSG	02P ECONOMY POWER .200 CL HSG	Single Color LED, High Efficiency Red, Diffused,	09P ECONOMY POWER .200 CL HSG
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	70 °C	105 °C	105 °C	85 °C	105 °C
Minimum operating temperature	-25 °C	-55 °C	-25 °C	-25 °C	-25 °C	-20 °C	-25 °C	-25 °C	-40 °C	-25 °C
Brand Name	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	-	TE Connectivity	TE Connectivity	-	TE Connectivity
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	-	Lead free	Lead free	-	Lead free
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	-	TE Connectivity	TE Connectivity	-	TE Connectivity
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	-	EAR99
Is Samacsys	N	-	N	N	N	-	N	N	-	N
body width	0.283 inch	0.47 inch	0.283 inch	0.283 inch	0.283 inch	-	0.283 inch	0.283 inch	-	0.283 inch
subject depth	0.524 inch	0.865 inch	0.524 inch	0.524 inch	0.524 inch	-	0.524 inch	0.524 inch	-	0.524 inch
body length	0.754 inch	2.4 inch	0.954 inch	0.554 inch	1.354 inch	-	1.554 inch	0.354 inch	-	1.754 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	-	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact arrangement	S0P4	-	S0P5	S0P3	S0P7	-	S0P8	S0P2	-	S0P9
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact style	SQ PIN-SKT	HYBRID	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT
DIN compliance	NO	-	NO	NO	NO	-	NO	NO	-	NO
Dielectric withstand voltage	1500VAC V	2500VDC V	1500VAC V	1500VAC V	1500VAC V	-	1500VAC V	1500VAC V	-	1500VAC V
Durability	50 Cycles	200 Cycles	50 Cycles	50 Cycles	50 Cycles	-	50 Cycles	50 Cycles	-	50 Cycles
Filter function	NO	-	NO	NO	NO	-	NO	NO	-	NO
IEC compliance	NO	-	NO	NO	NO	-	NO	NO	-	NO
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	-	500000000 Ω	500000000 Ω	-	500000000 Ω
Insulator color	NATURAL	-	NATURAL	NATURAL	NATURAL	-	NATURAL	NATURAL	-	NATURAL
insulator material	GLASS FILLED NYLON	GLASS FILLED POLYETHYLENE	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	-	GLASS FILLED NYLON	GLASS FILLED NYLON	-	GLASS FILLED NYLON
MIL compliance	NO	-	NO	NO	NO	-	NO	NO	-	NO
Mixed contacts	NO	YES	NO	NO	NO	-	NO	NO	-	NO
Installation option 1	LOCKING	GUIDE PIN	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING	-	LOCKING
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	-	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	-	ONE	ONE	-	ONE
Number of rows loaded	1	-	1	1	1	-	1	1	-	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Guideline	UL	UL	UL	UL	UL	-	UL	UL	-	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Total number of contacts	4	-	5	3	7	-	8	2	-	9
Base Number Matches	1	-	1	1	1	-	1	1	-	1
