17430721209 datasheet, PDF - EEWORLD Datasheet

17430721209: Descriptionhard metric connectors har-bus HM mel 6-row 72pol flange; CategoryThe connector The connector; File Size280KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

17430721209 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	17430721209	-	-	View	Buy Now

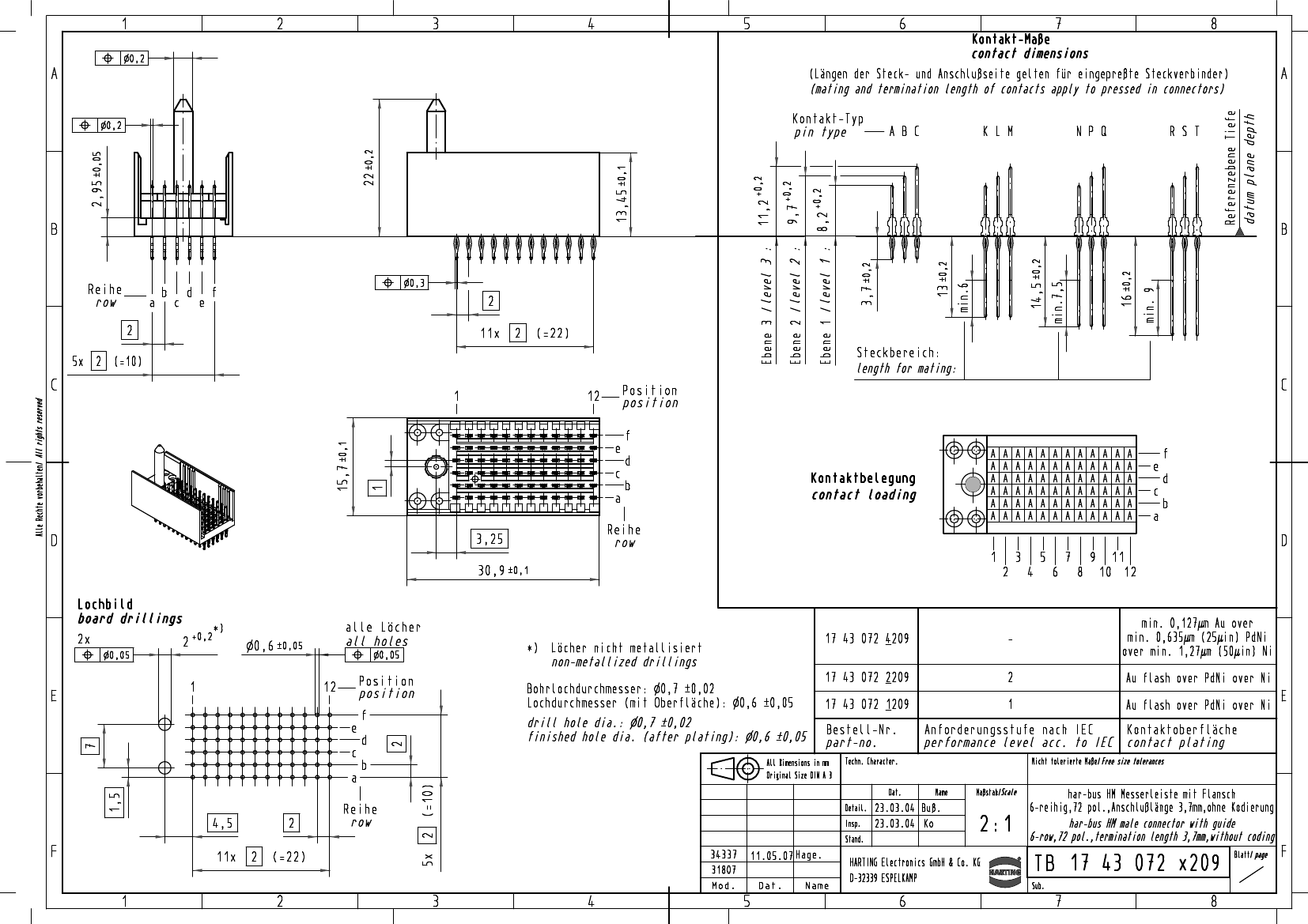

hard metric connectors har-bus HM mel 6-row 72pol flange

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: IEC 61076-4-101
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD/NICKEL
Contact completed and terminated	GOLD NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	YES
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	17430721209
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	72
UL Flammability Code	94V-0
Base Number Matches	1

	17430721209	17430724209	17430722209
Description	hard metric connectors har-bus HM mel 6-row 72pol flange	Board Connector, 72 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	hard metric connectors har-bus HM mel 6-row 72pol flange
Reach Compliance Code	compliant	unknow	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	YES	NO	YES
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	72	72	72
Base Number Matches	1	1	1
Other features	STANDARD: IEC 61076-4-101	-	STANDARD: IEC 61076-4-101
Contact to complete cooperation	GOLD/NICKEL	-	GOLD OVER NICKEL
Contact completed and terminated	GOLD NICKEL	-	Gold (Au) - with Nickel (Ni) barrier
JESD-609 code	e4	-	e4
Manufacturer's serial number	17430721209	17430724209	-
UL Flammability Code	94V-0	-	94V-0
