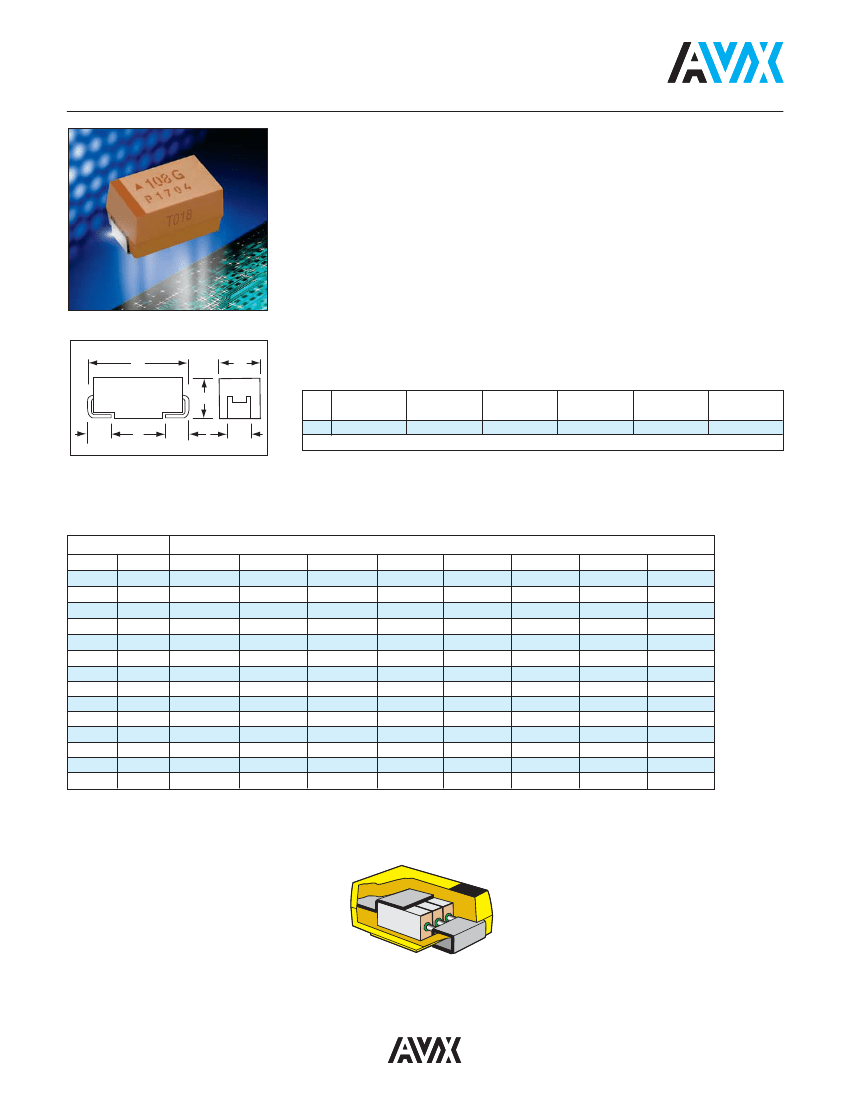

TBM Multianode
Tantalum Ultra Low ESR COTS-Plus Weibull Grade & Space Level
TBM COTS-Plus series uses an internal
multi-anode design to achieve ultra-low
ESR which improves performance in
high ripple power applications.
TBM is available with Weibull Grade “B”
reliability and all MIL-PRF-55365 surge
test options (“A”, “B” & “C”).
There are four termination finishes
available: solder plated, fused solder
plated, hot solder dipped and gold plat-
ed (these correspond to “H”, “K”, “C”
and “B” termination, respectively, per
MIL-PRF-55365).
The molding compound has been
selected to meet the requirements
of UL94V-0 (Flame Retardancy) and
outgassing requirements of NASA
SP-R-0022A.
L
W
CASE DIMENSIONS:
millimeters (inches)
H
Code
A
S
A
W
1
L±0.20 (0.008)
7.30 (0.287)
W+0.20 (0.008)
–0.10 (0.004)
4.30 (0.169)
H+0.20 (0.008)
–0.10 (0.004)
4.10 (0.162)
W1 ±0.20
(0.008)
2.40 (0.094)
A+0.30 (0.012)
–0.20 (0.008)
1.30 (0.051)
S Min.
4.40 (0.173)
E
W
1
dimension applies to the termination width for A dimensional area only.
CAPACITANCE AND RATED VOLTAGE RANGE
LETTER DENOTES CASE SIZE ESR LIMIT IN BRACKETS
Capacitance
μF
Code
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
106
156
226
336
476
686
107
157
227
337
477
687
108
158
2.5V (e)
4V (G)
Rated Voltage DC (V
R
) to 85°C
6V (J)
10V (A)
16V (C)
20V (D)
25V (E)
35V (V)
E(60)
E(50)
E(55)
E(45)
E(35)
E(30)
E(25)
E(18)
E(18), V(23)
E(23)
E(23)
E(12)
E(18)
E(18), V(18)
E(15)
NOTE: EIA standards for Low ESR solid tantalum capacitors allow an ESR movement of 1.25 times initial limit post mounting.
TBM MULTIANODE CONSTRUCTION
36
TBM Multianode
Tantalum Ultra Low ESR COTS-Plus Weibull Grade & Space Level
HOW TO ORDER
COTS-PLUS:
TBM E
Type
Case
Size
477
*
006
C
#
@
0
^
++
Surge Test
Option
00 = None
23 = 10 Cycles, +25ºC
24 = 10 Cycles,
-55ºC & +85ºC
45 = 10 cycles,
-55ºC & +85ºC
before Weibull
Capacitance Capacitance
Voltage
Standard or Packaging Inspection Level
Code
Tolerance
Code
Low ESR
S = Std.
B = Bulk
pF code:
M = ±20% 002 = 2.5Vdc
Range
Conformance
R = 7" T&R
1st two digits
K = ±10% 004 = 4Vdc C = Std ESR S = 13" T&R L = Group A
represent
J = ±5%
D = DSCC DWG
006 = 6Vdc L = Low ESR W = Waffle
significant
(Pending)
010 = 10Vdc
figures 3rd
016 = 16Vdc
See page 5
digit represents
020 = 20Vdc
for additional
multiplier
025 = 25Vdc
(number of
packaging
zeros to follow)
035 = 35Vdc
options.
Reliability Grade
Qualification Termination Finish
Level
Weibull:
H = Solder Plated
0 = N/A
B = 0.1%/1000 hrs.
0 = Fused Solder
90% conf.
Plated
9 = SRC9000
C = 0.01%/1000 hrs.
8 = Hot Solder
90% conf.
Dipped
D = 0.001%/1000 hrs.
9 = Gold Plated
90% conf.
7 = Matte Sn
T = T Level
(COTS-Plus only)
Z = Non-ER
SPACE LEVEL OPTIONS TO SRC9000*:
TBM H
Type
Case
Size
227
*
006
C
L
@
9
^
++
Surge Test
Option
00 = 10 Cycles,
-55ºC & +85ºC
45 = 10 cycles,
-55ºC & +85ºC
before Weibull
Capacitance Capacitance
Voltage
Standard or Packaging Inspection Level
Code
Tolerance
Code
Low ESR
L = Group A
B = Bulk
pF code:
M = ±20% 002 = 2.5Vdc
Range
R = 7" T&R
1st two digits
K = ±10% 004 = 4Vdc C = Std ESR S = 13" T&R
represent
J = ±5%
006 = 6Vdc L = Low ESR W = Waffle
significant
010 = 10Vdc
figures 3rd
016 = 16Vdc
See page 5
digit represents
020 = 20Vdc
for additional
multiplier
025 = 25Vdc
(number of
packaging
035 = 35Vdc
zeros to follow)
options.
Reliability Grade
Qualification Termination Finish
Level
Weibull:
H = Solder Plated
9 = SRC9000 0 = Fused Solder
B = 0.1%/1000 hrs.
90% conf.
Plated
C = 0.01%/1000 hrs.
8 = Hot Solder
90% conf.
Dipped
D = 0.001%/1000 hrs.
9 = Gold Plated
90% conf.
*Qualifications Pending
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage DC (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Temperature Range:
Unless otherwise specified, all technical data relate to an ambient temperature of +25°C
22 μF to 1500 μF
±5%; ±10%; ±20%
4
6
10
16
20
25
35
50
2.7
4
7
10
13
17
23
33
5.2
8
13
20
26
32
46
65
3.4
5
8
12
16
20
28
40
-55°C to +125°C
+85°C:
+125°C:
+85°C:
+125°C:
37
TBM Multianode
Tantalum Ultra Low ESR COTS-Plus Weibull Grade & Space Level
Cap
DC Rated ESR @
@ 120Hz Voltage 100kHz
μF @
V@
mOhms
AVX P/N
Case
25ºC
+85ºC
@ +25ºC
TBME158*002L SB0^++
E
1500
2.5
12
TBME687*004L SB0^++
E
680
4
18
TBME108*004L SB0^++
E
1000
4
18
TBMV108*004L SB0^++
V
1000
4
18
TBME158*004L SB0^++
E
1500
4
15
TBME477*006L SB0^++
E
470
6
18
TBME687*006L SB0^++
E
680
6
18
TBMV687*006L SB0^++
V
680
6
23
TBME337*010L SB0^++
E
330
10
23
TBME477*010L SB0^++
E
470
10
23
TBME157*016L SB0^++
E
150
16
30
TBME227*016L SB0^++
E
220
16
25
TBME107*020L SB0^++
E
100
20
35
TBME686*025L SB0^++
E
68
25
45
TBME226*035L SB0^++
E
22
35
60
TBME336*035L SB0^++
E
33
35
50
E
47
35
55
TBME476*035L SB0^++
RATING & PART
NUMBER REFERENCE
Parametric Specifications by Rating
DCL max
DF max
+25°C
+85°C
+125°C
+25°C +(85/125)°C
(μA)
38
27
40
40
60
28
41
41
33
47
24
35
20
17
8
12
16
(μA)
380
270
400
400
400
280
410
410
330
470
240
350
200
170
80
120
160
(μA)
475
338
500
500
500
350
513
513
413
588
300
438
250
213
100
150
200
(%)
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
(%)
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
-55°C
(%)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Power
Dissipation
W
0.165
0.165
0.165
0.250
0.165
0.165
0.165
0.250
0.165
0.165
0.165
0.165
0.165
0.165
0.165
0.165
0.165
Typical Ripple Data by Rating
25ºC
85ºC
125ºC
25ºC
85ºC
125ºC
Ripple
Ripple
Ripple
Ripple
Ripple
Ripple
A
A
A
V
V
V
(100kHz) (100kHz) (100kHz) (100kHz) (100kHz) (100kHz)
4.743
4.269
1.897
0.057
0.051
0.023
3.873
3.486
1.549
0.070
0.063
0.028
3.873
3.486
1.549
0.070
0.063
0.028
3.979
3.581
1.592
0.072
0.064
0.029
4.243
3.818
1.697
0.064
0.057
0.025
3.873
3.486
1.549
0.070
0.063
0.028
3.873
3.486
1.549
0.070
0.063
0.028
3.520
3.168
1.408
0.081
0.073
0.032
3.426
3.084
1.370
0.079
0.071
0.032
3.426
3.084
1.370
0.079
0.071
0.032
3.000
2.700
1.200
0.090
0.081
0.036
3.286
2.958
1.315
0.082
0.074
0.033
2.777
2.500
1.111
0.097
0.087
0.039
2.449
2.205
0.980
0.110
0.099
0.044
2.121
1.909
0.849
0.127
0.115
0.051
2.324
2.091
0.930
0.116
0.105
0.046
2.216
1.994
0.886
0.122
0.110
0.049
All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes.
NOTE: AVX reserves the right to supply a higher voltage rating or tighter tolerance part in the same case size, to the same reliability standards.
38
