HM2P65PMA3X0GF: Descriptionhard metric connectors mpac 5R ST PF hdr cnt typ ab25; CategoryThe connector; File Size101KB，1 Pages; ManufacturerFCI [First Components International]; Environmental Compliance

Download Datasheet Compare View All

HM2P65PMA3X0GF Overview

hard metric connectors mpac 5R ST PF hdr cnt typ ab25

Preview

Download Datasheet

View All

P

O

S

HM2P65PMA3X0----

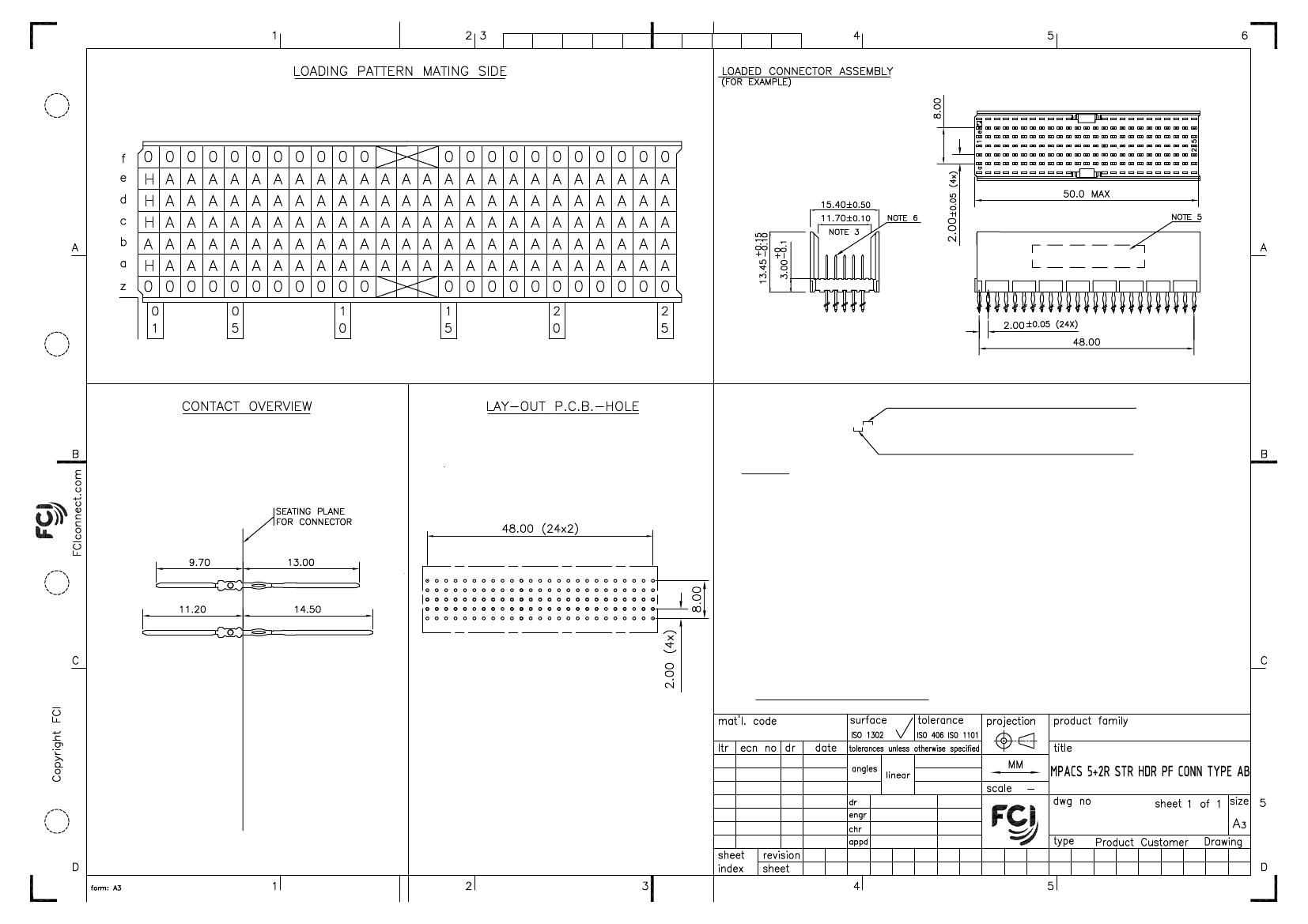

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

A

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

H

CATALOG NO: HM2P65PMA3X0----

SEE NOTE 4

A

B

C

I04-0020

I05-0188

I06-0090

MINI

2004/03/15

2005/10/13

2006/06/26

0°±1°

MINI K VANDANATH 2004/03/15

BIJU K PAUL

C

1

2004/03/15

2006/06/26

.0±0.2

.00±0.1

MILLIPACS

BS, C ,203028, 121

6

PDM: Rev:C

STATUS:

Released

Printed: Dec 03, 2007

.
