AFCA-SL-25-SG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AFCA-SL-25-SG

AFCA-SL-25-SG: DescriptionBoard Connector, 25 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size106KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

AFCA-SL-25-SG Overview

Board Connector, 25 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Plug

AFCA-SL-25-SG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1294389069
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	7.2
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.248 inch
body length	2.522 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
IEC compliance	NO
Insulation resistance	3000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation option 2	THREADED INSERT
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	1 A
Guideline	UL
Terminal pitch	2.54 mm
Termination type	IDC
Total number of contacts	25

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Insulator material:

Withstanding:

Contact resistance:

Insulation resistance:

Operating temperature:

Terminates with:

1 amp

Phosphor bronze

Tin, selective gold, gold flash, gold plate

PBT, glass reinforced, UL94V-0

500VAC for 1 min.

30 milliohms max.

3,000 megohms min.

-40°C to +105°C

2.54mm pitch flat ribbon cable

Available Only On

Central Components

Cables

Series

AFCA-SL

No. of Contacts

Contact Plating

TN=Tin plate

GDXX=Gold flash

SG=Selective gold XX=5µ”, 10µ”, 15µ”, 30µ” gold

RoHS compliant

Rev.

Description

A P/N table fixed

Date

10/15/07

Approved

IDC socket single 2-36

row, slim type

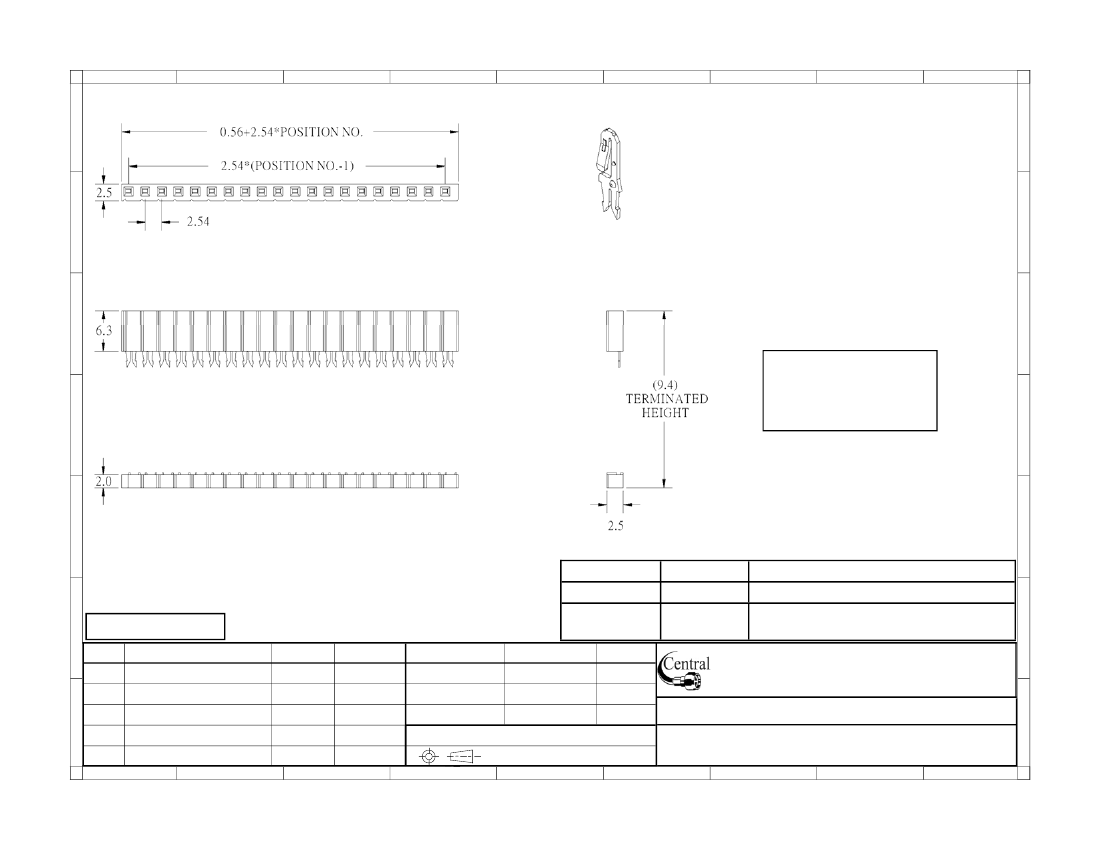

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

AFCA-SL-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: IDC socket single row, 2.54mm pitch, slim type
