FKCT 2,5/18-ST-5,08
Order No.: 1902275

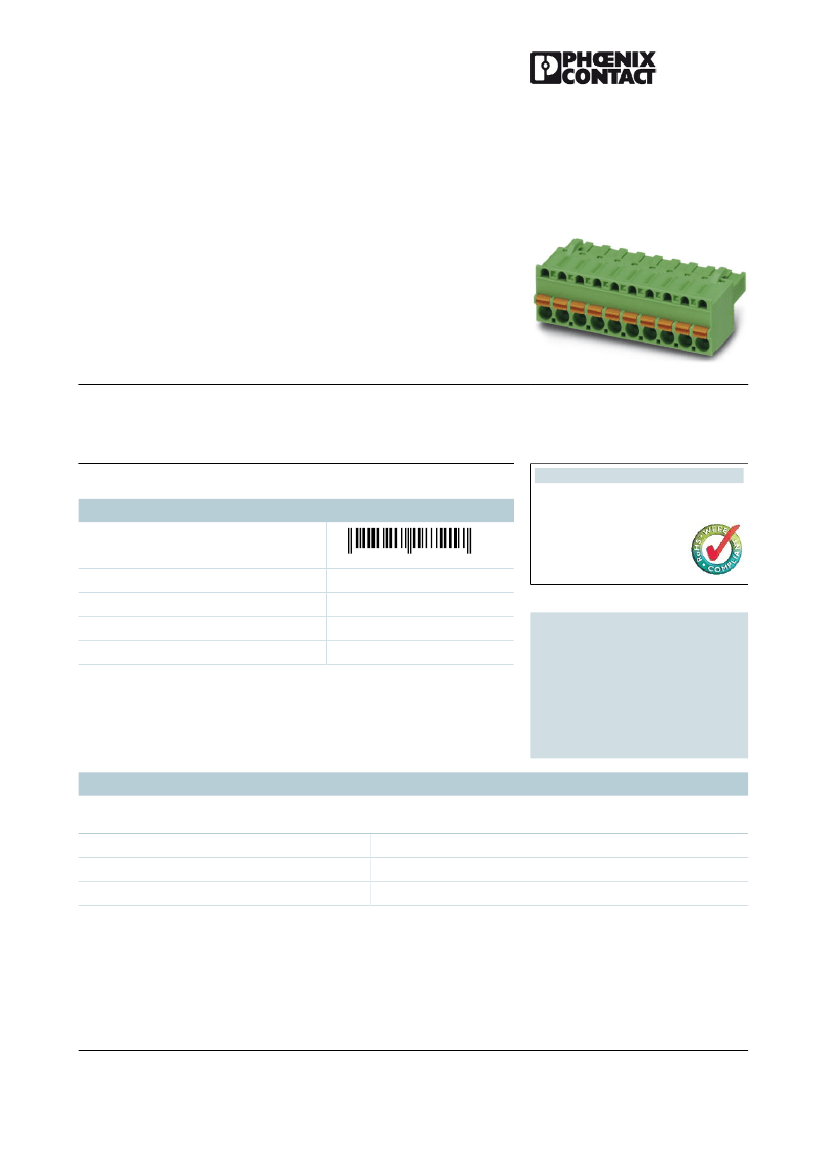

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1902275
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal surface:
Sn
Product notes
Commercial data
GTIN (EAN)
4
017918
187217
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
E111
50 pcs.
85366990
Page 139 (CC-2005)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
Dimension a
Number of positions
5.08 mm
86.36 mm
18
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Feb 3, 2011
FKCT 2,5/18-ST-5,08
Order No.: 1902275
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1902275
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Nominal voltage, UL/CUL Use Group B
Nominal current, UL/CUL Use Group B
Nominal voltage, UL/CUL Use Group D
Nominal current, UL/CUL Use Group D
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
FKCT 2,5/..-ST
I
4 kV
4 kV
4 kV
320 V
630 V
EN-VDE
12 A
250 V
2.5 mm²
12 A
PA
V0
A2
10 mm
250 V
10 A
300 V
10 A
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Feb 3, 2011
FKCT 2,5/18-ST-5,08
Order No.: 1902275
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1902275
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
Certificates / Approvals
0.5 mm²
1.5 mm²
26
12
Certification
CB, CUL, GOST, UL, VDE-PZI
Accessories
Item
Assembly
1876880
1876877
STZ 8-FKC-5,08
STZ 4-FKC-5,08
Strain relief for snapping into the latching chambers of the plug
components, 8-pos.
Strain relief for snapping into the latching chambers of the plugs,
4-pos.
Designation
Description
Marking
0804293
SK 5,08/3,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
Plug/Adapter
1734634
0201689
0201702
0201676
0201663
0201744
0201647
CP-MSTB
MPS-IH BU
MPS-IH GN
MPS-IH RD
MPS-IH WH
MPS-MT
RPS
Keying profile, is inserted into the slot on the plug or inverted
header, red insulating material
Insulating sleeve, Color: blue
Insulating sleeve, Color: green
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Test plugs
Reducing plug, Color: gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Feb 3, 2011
FKCT 2,5/18-ST-5,08
Order No.: 1902275
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1902275
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip
Additional products
Item
General
1880465
EMSTBA 2,5/18-G-5,08
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Press-in
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Press-in
Plug component, Nominal current: 12 A, Rated voltage (III/2): 400
V, Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320
V, Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Corresponding male crimp contacts with current
[A] and conductor cross section range [mm²] data: 10A/ICC-MT
0,5-1,0 (3190577); 10A/ICC-MT 0,5-1,0 BA (3190603); 12A/ICC-
MT 1,5-2,5 (3190580); 12A/ICC-MT 1,5-2,5 BA (3190593). BA =
Bandkontakte
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering, In combination with MVSTB
or FKCV plug components, both an MVSTBW (or FKCVW) and
an MVSTBR plug (or FKCVR) must be used. Combination with
TMSTBP plug components is not possible!
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering, In combination with MVSTB
or FKCV plug components, both an MVSTBW (or FKCVW) and
an MVSTBR plug (or FKCVR) must be used. Combination with
TMSTBP plug components is not possible!
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Designation
Description
1915893
EMSTBVA 2,5/18-G-5,08
1786336
IC 2,5/18-ST-5,08
1824007
ICC 2,5/18-STZ-5,08
1762525
MDSTB 2,5/18-G1-5,08
1762664
MDSTBV 2,5/18-G1-5,08
1759172
MSTB 2,5/18-G-5,08
1770876
MSTB 2,5/18-G-5,08-LA
1757404
MSTBA 2,5/18-G-5,08
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Feb 3, 2011
FKCT 2,5/18-ST-5,08
Order No.: 1902275
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1902275
1768105
MSTBA 2,5/18-G-5,08-LA
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V,
Number of positions: 18, Pitch: 5.08 mm, Color: green, Metal
surface: Sn, Assembly: Soldering
1758173
MSTBV 2,5/18-G-5,08
1808625
MSTBV 2,5/18-GEH-5,08
1755891
MSTBVA 2,5/18-G-5,08
1735727
MSTBW 2,5/18-G-5,08
1769625
SMSTB 2,5/18-G-5,08
1767533
SMSTBA 2,5/18-G-5,08
Diagrams/Drawings
Dimensioned drawing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 6
Feb 3, 2011
