1790247 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 1790247

1790247: Descriptionpluggable terminal blocks 16 pos 3.5mm dbl row plug 24-16awg spring; CategoryThe connector terminals; File Size94KB，4 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1790247 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1790247	-	-	View	Buy Now

1790247 Overview

pluggable terminal blocks 16 pos 3.5mm dbl row plug 24-16awg spring

1790247 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PHOENIX CONTACT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	1790247
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

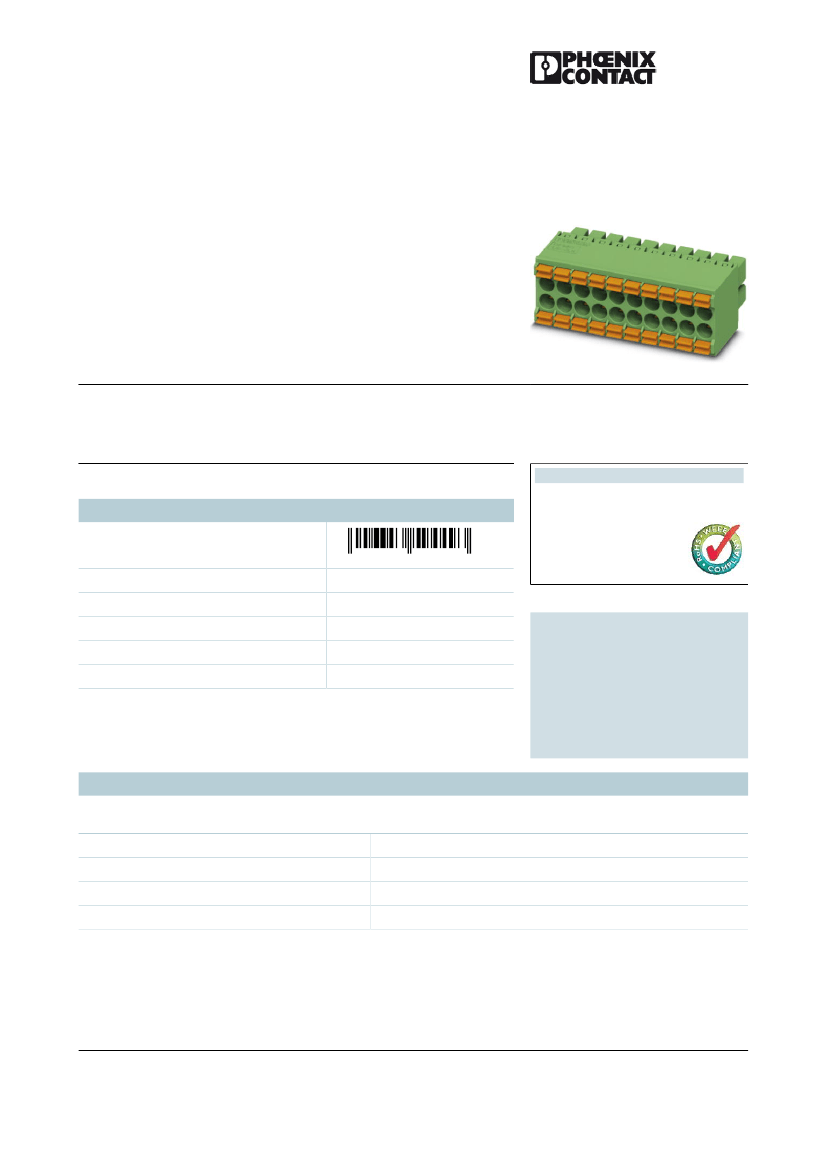

Extract from the online

catalog

DFMC 1,5/16-ST-3,5

Order No.: 1790247

http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1790247

Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V,

Number of positions: 16, Pitch: 3.5 mm, Connection method: Spring-

cage conn., Color: Green

Product notes

Commercial data

GTIN (EAN)

046356

594493

WEEE/RoHS-compliant since:

07/08/2010

Note

sales group

Pack

Customs tariff

Catalog page information

Made-to-order

E101

50 pcs.

85366990

Page 174 (CC-2011)

http://

www.download.phoenixcontact.com

Please note that the data given

here has been taken from the

online catalog. For comprehensive

information and data, please refer

to the user documentation. The

General Terms and Conditions of

Use apply to Internet downloads.

Technical data

Dimensions / positions

Length

Height

Pitch

Dimension a

22.65 mm

13.25 mm

3.5 mm

52.5 mm

PHOENIX CONTACT Deutschland GmbH

http://www.phoenixcontact.de

Page 1 / 4

Aug 30, 2011
