Electronic housing - ME 17,5 UT KMGY - 2869427
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

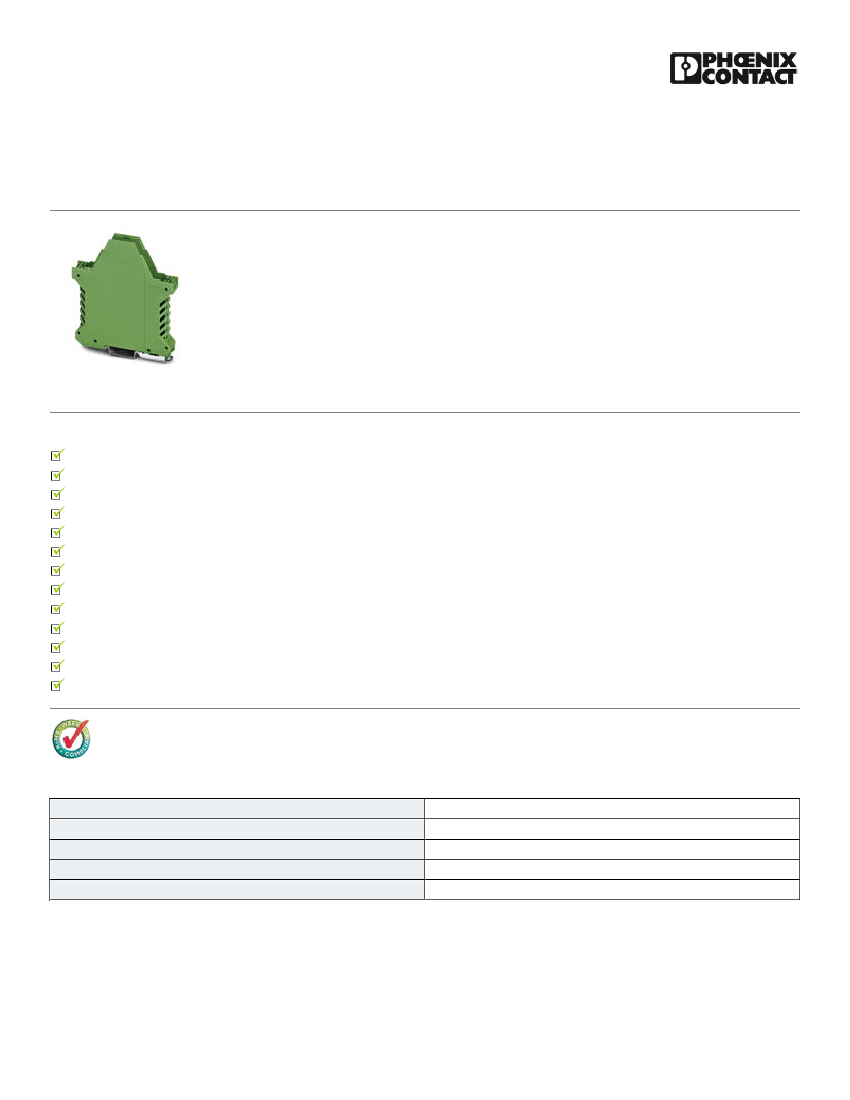

Lower part of housing, fully assembled, with metal foot catch.
The illustration shows the green
product version
Product Features
Tool-free mounting
Large assembly area
Low design width with a high number of positions
Same PCB geometry for all design widths
Recessed labeling areas
Inflammability class V0 according to UL 94
Fast mounting on DIN rails according to EN 60715
Cost savings thanks to easy device production
Material and part identification embossed on the housing (recyclability)
Functional earth ground contact (EMC) integrated in the housing base
Optional BUS connection integrated in the housing, for either parallel or serial contacting
Metal foot catch
Electronic components can be partially removed
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
10 1
42.46 GRM
85369010
Germany
Technical data
General
05.11.2013 Page 1 / 7
https://www.phoenixcontact.com/us/products/2869427
Electronic housing - ME 17,5 UT KMGY - 2869427
Technical data
General
Housing type
Housing material
Color
Component housing
Polyamide
light gray
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C
Dimensions
Length
Constructional height
Width
99 mm
114.5 mm
17.5 mm
Technical data
Inflammability class according to UL 94
Power dissipation at 20°C in the horizontal mounting position
Number of positions
V0
5.2 W 10.8 W
12
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27180401
27180401
27180506
27180506
27180802
27182702
27182702
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC001031
EC001031
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
31261501
31261501
31261501
31261501
05.11.2013 Page 2 / 7
https://www.phoenixcontact.com/us/products/2869427
Electronic housing - ME 17,5 UT KMGY - 2869427
Classifications
UNSPSC
UNSPSC 13.2
31261501
Approvals
Approvals
Approvals
UL Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Accessories
Accessories
Coding element
Coding star - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
Coding profile - CP-MSTB - 1734634
Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
05.11.2013 Page 3 / 7
https://www.phoenixcontact.com/us/products/2869427
Electronic housing - ME 17,5 UT KMGY - 2869427

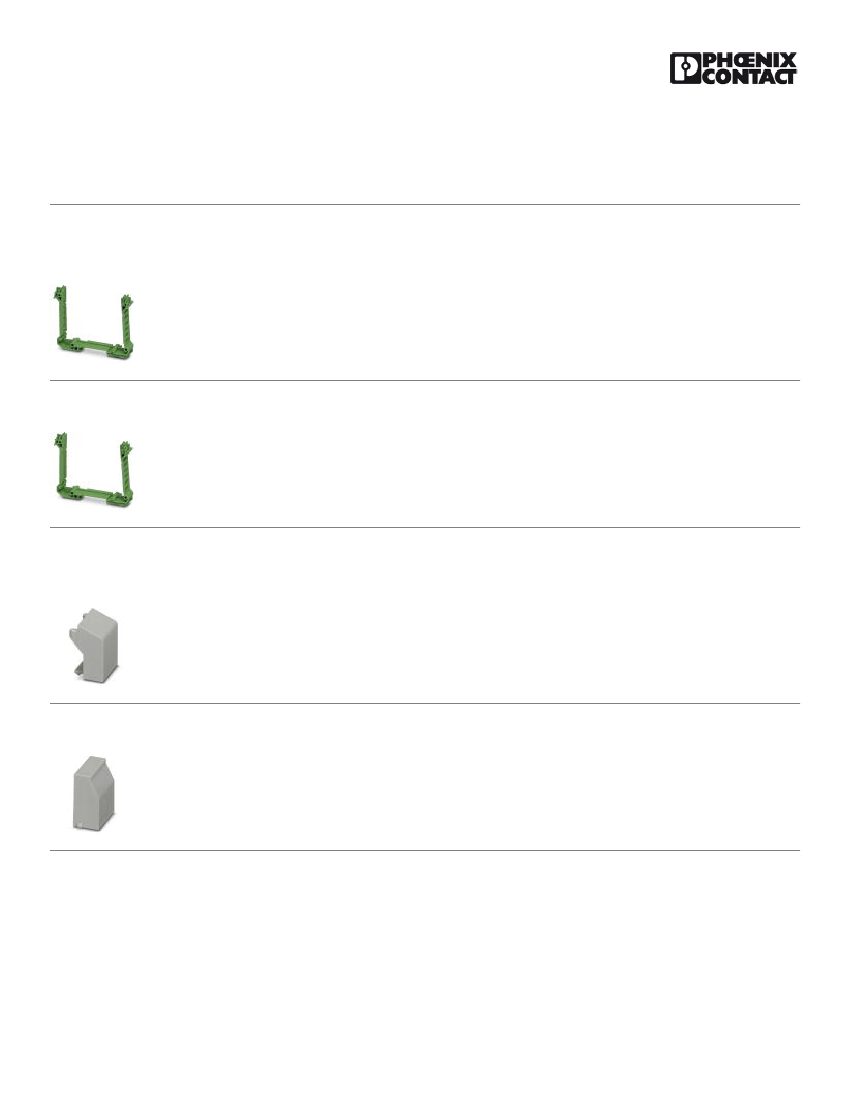

Accessories
Component housing center part
Electronic housing - ME 35 UTM - 2908265
Intermediate element for modular extension of the volume of the housing in the pitch. The open intermediate element is
17.5 mm wide.
Electronic housing - ME 35 UTMG - 2908275
Intermediate element for modular extension of the volume of the housing in the pitch. The closed intermediate element is
17.5 mm wide.
Filler plug
Electronic housing - ME B-17,5 MSTBO KMGY - 2853776
Filler plugs, for unoccupied terminal points
Components of electronic housing - ME B-17,5 MKDSO KMGY - 2854115
Filler plugs, for unoccupied terminal points
Ground contact
05.11.2013 Page 4 / 7
https://www.phoenixcontact.com/us/products/2869427
Electronic housing - ME 17,5 UT KMGY - 2869427

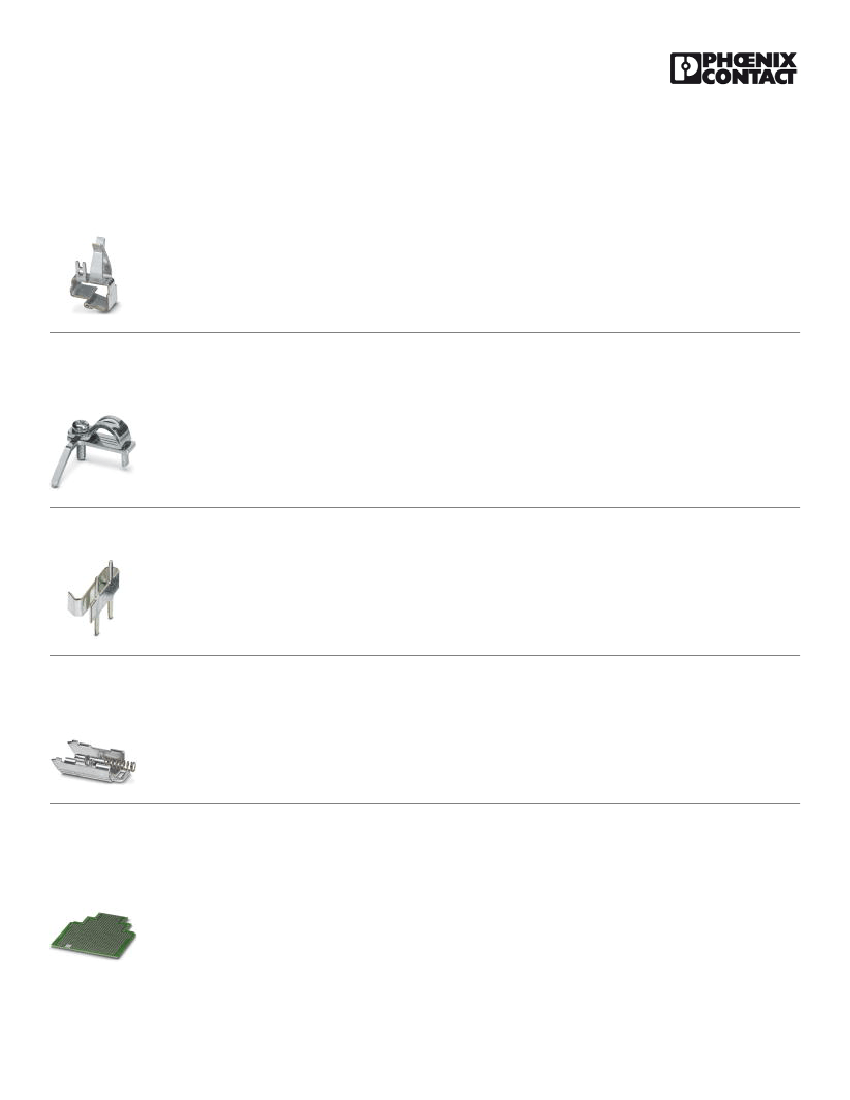

Accessories
Electronic housing - ME FE-CONTACT - 2908294
Functional earth ground contact, for intermediate elements.
Mounting material
Components of electronic housing - ME-SAS - 2853899
Shield connection clamp for printed circuit terminal block
Electronic housing - ME LPZS - 2906911
PCB stop, for soldering onto PCB
Electronic housing - ME MF 17,5 - 2908281
Metal foot catch, for intermediate elements.
PCB
Electronic housing - ME LP - 2906908
PCB, for custom fitting, with contact to DIN rail (EN 60715)
05.11.2013 Page 5 / 7
