ALP10A471DB100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> ALP10A471DB100

ALP10A471DB100: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 100V, 470uF, CHASSIS MOUNT, CAN; CategoryPassive components capacitor; File Size287KB，4 Pages; ManufacturerAerovox Corporation; Websitehttp://www.cd-aero.com/

Download Datasheet Parametric View All

ALP10A471DB100 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 100V, 470uF, CHASSIS MOUNT, CAN

ALP10A471DB100 Parametric

Parameter Name	Attribute value
Objectid	2022735673
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.282 mA
Manufacturer's serial number	ALP10
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	30%
Rated (DC) voltage (URdc)	100 V
Guideline	IEC384-4
surface mount	NO
Terminal shape	LUG

Preview

Download Datasheet

View All

series

Listed here are only samples of the range

of Solder Pin and Tag Capacitors we can

produce.

It should be pointed out that the ALP,

solder pin, ranges are an older design and

as such should not be considered for any

new applications. Details are incorporated

here, primarily, for maintenance/

replacement purposes.

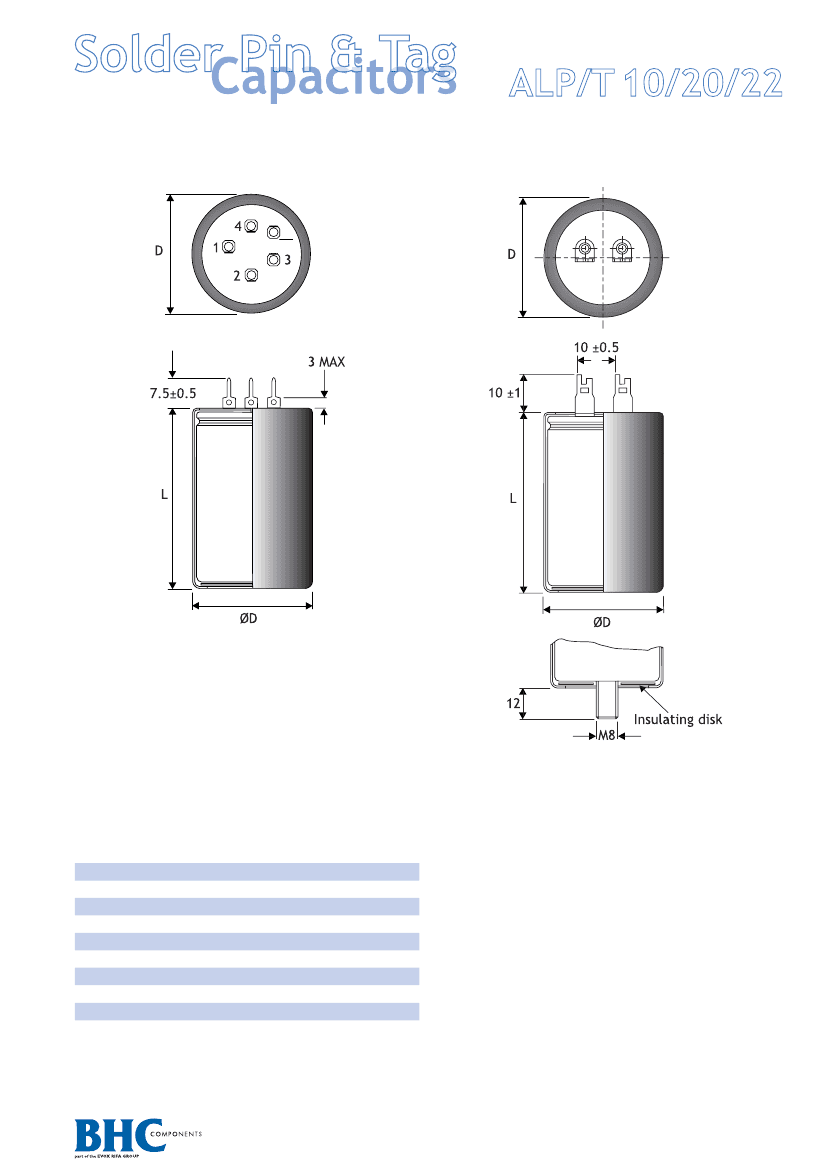

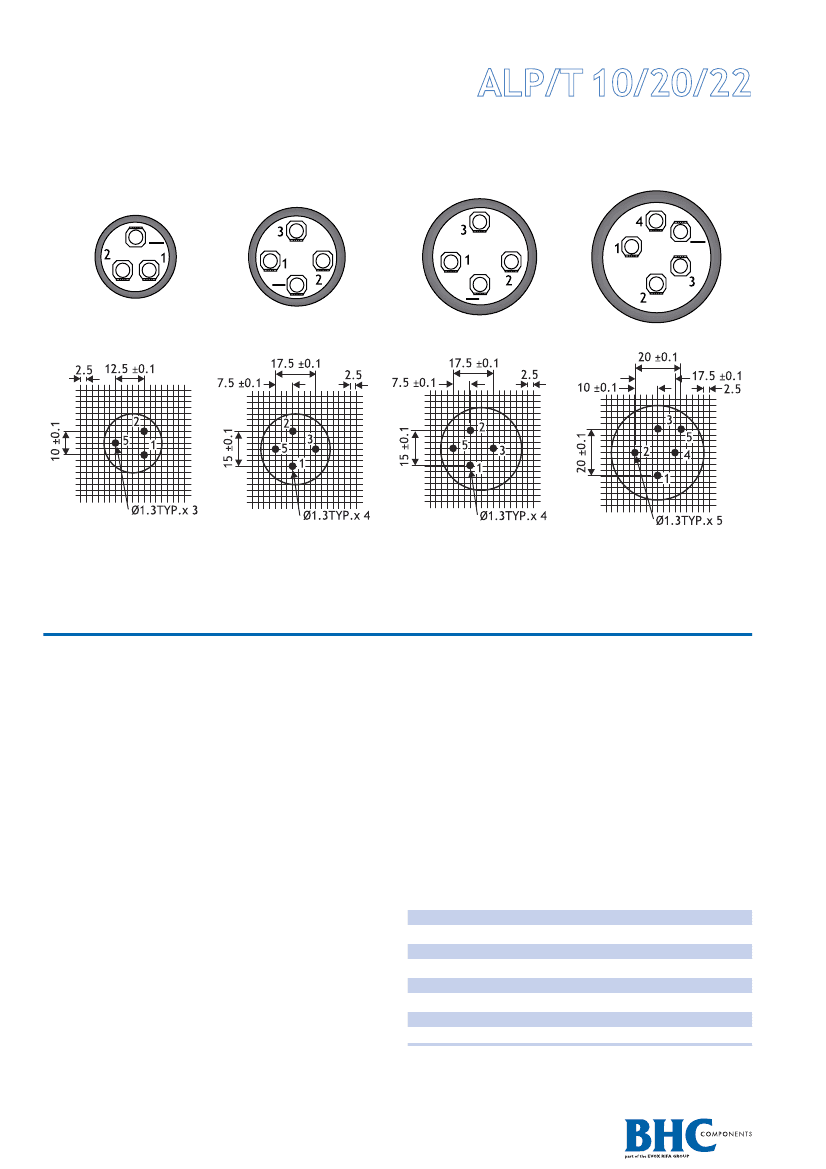

ALP/T 10, 20 and 22 Series

A range of 85°C capacitors designed to meet the demands of

inverters, switch mode power supplies and energy storage

circuits. It should be noted that for any new applications

requiring board mounting terminations, ALP, the ALC ranges

of snap-in capacitors produced by BHC should be considered.

The ALP/T10 is the older “General Purpose” range whereas

the ALP/T20 is the “Long Life” equivalent. ALP/T22 is a

higher CV version of ALP/T20 with the same long life

characteristics.

Capacitance

Range

Capacitance

Tolerance

Voltage

Range

Temperature

range

Case sizes

100µF to

68,000µF

-10% +30%

10V to

385V d.c.

-40°C to

+85°C

22 x 35 to

40 x 105

22µF to

68,000µF

-10% +30%

(200V ±20%)

47µF to

150,000µF

±20%

10V to

450V d.c.

-40°C to

+85°C

22 x 35 to

40 x 105

10V to

450V d.c.

-40°C to

+85°C

22 x 35 to

40 x 105
