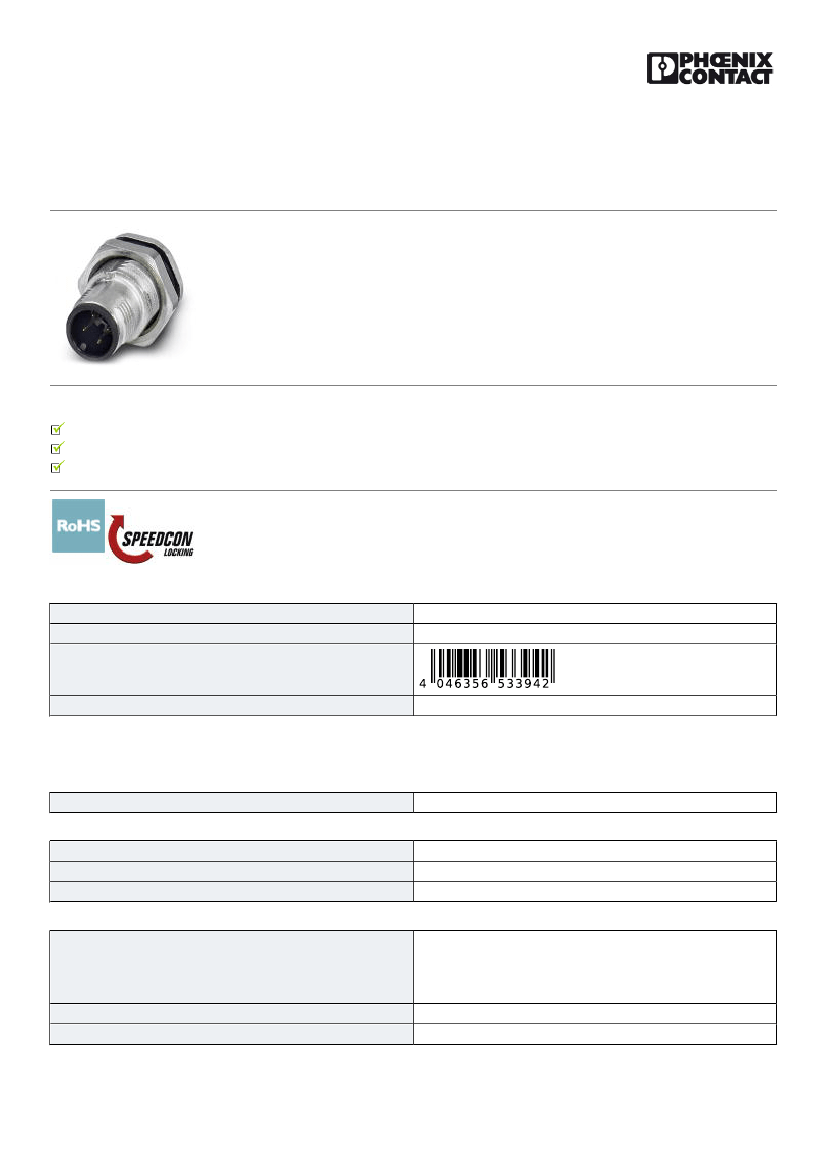

Flush-type connector - SACC-DSI-M12MS-4CON-M16 - 1419742
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator flush-type plug, 4-pos., M12 SPEEDCON, A-coded, rear/screw mounting with M16 thread,
with straight solder connection
Your advantages
Easy PCB assembly: one-piece connectors for wave soldering
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
SPEEDCON fast locking system reduces cabling times
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4046356533942
20 pc
20 pc
Technical data
Dimensions
Length of the solder pin
6 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
IP67
General
Note
The electrical and mechanical data specified assume that the connector
pair is correctly locked and mounted. If the connector is unlocked and if
there is a danger of contamination, the connector must be sealed using
a protective cap > IP54. Influences arising from litz wires, cables or PCB
assembly must also be taken into consideration.
4A
250 V
12/01/2018 Page 1 / 4
Rated current at 40°C
Rated voltage
https://www.phoenixcontact.com/pi/products/1419742
Flush-type connector - SACC-DSI-M12MS-4CON-M16 - 1419742
Technical data
General
Rated surge voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
Overvoltage category
Degree of pollution
Connection method
Insertion/withdrawal cycles
Torque
Mounting type
2.5 kV
4
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
II
3
Solder pins
> 100
3 Nm ... 4 Nm (Installation-side)
Rear mounting M16 x 1.5 With flat nut
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material, knurls
Sealing material
V0
CuZn
Au
PA 6.6
Zinc die-cast, nickel-plated
NBR
Cable
Standards/specifications
Ambient temperature (operation)
M12 connector IEC 61076-2-101
-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (cable, flexible installation)
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

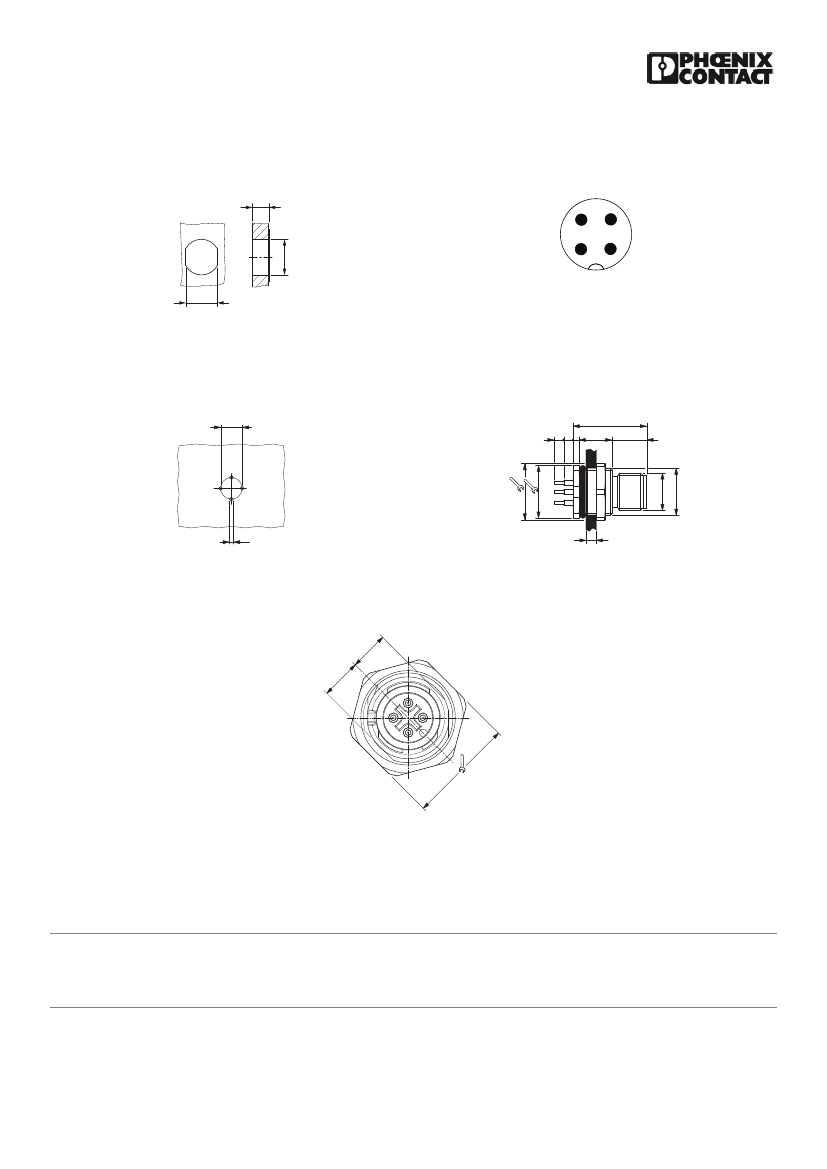

Drawings
12/01/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1419742
Flush-type connector - SACC-DSI-M12MS-4CON-M16 - 1419742
Dimensional drawing
≤
4,5
Schematic diagram
4
3
Ø16,1
1
2
13,5
+0,1
Pin assignment M12 plug, 4-pos., A-coded, view plug side
Housing cutout for M16 fastening thread, mounting panel with feed-
through hole (alternatively with area as anti-rotation protection for panel
thicknesses > 2 mm up to max. 4.5 mm)
Drilling diagram
Ø5
Dimensional drawing
23
3 32
10
11
Ø1,2
max. 4,5
M12 flush-type connector
Dimensional drawing
6
6,
8
6,
M12 front view
Approvals
Approvals
Approvals
UL Recognized / EAC / cULus Recognized
18
12/01/2018 Page 3 / 4
M16x1,5
M12x1
18
17
https://www.phoenixcontact.com/pi/products/1419742
Flush-type connector - SACC-DSI-M12MS-4CON-M16 - 1419742
Approvals
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
250 V
4A
22
FILE E 118976
EAC
250 V
4A
22-20
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E221474-20140616
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
12/01/2018 Page 4 / 4
