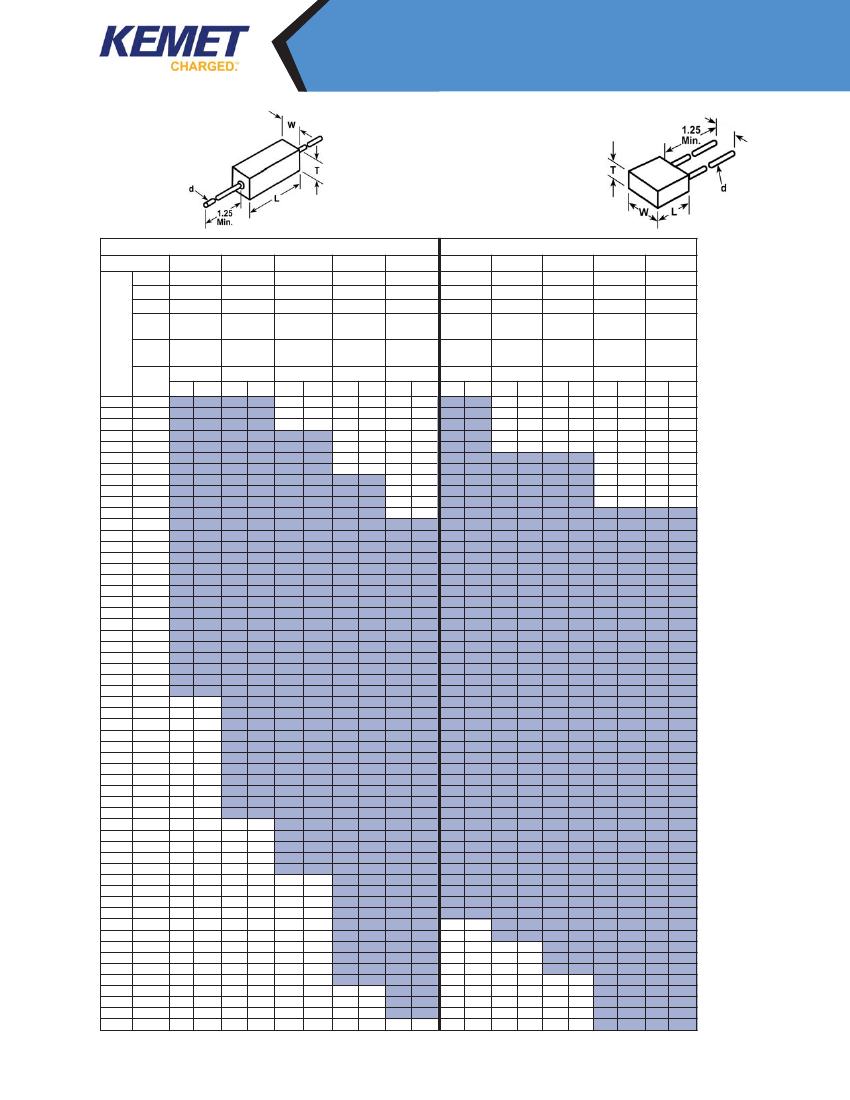

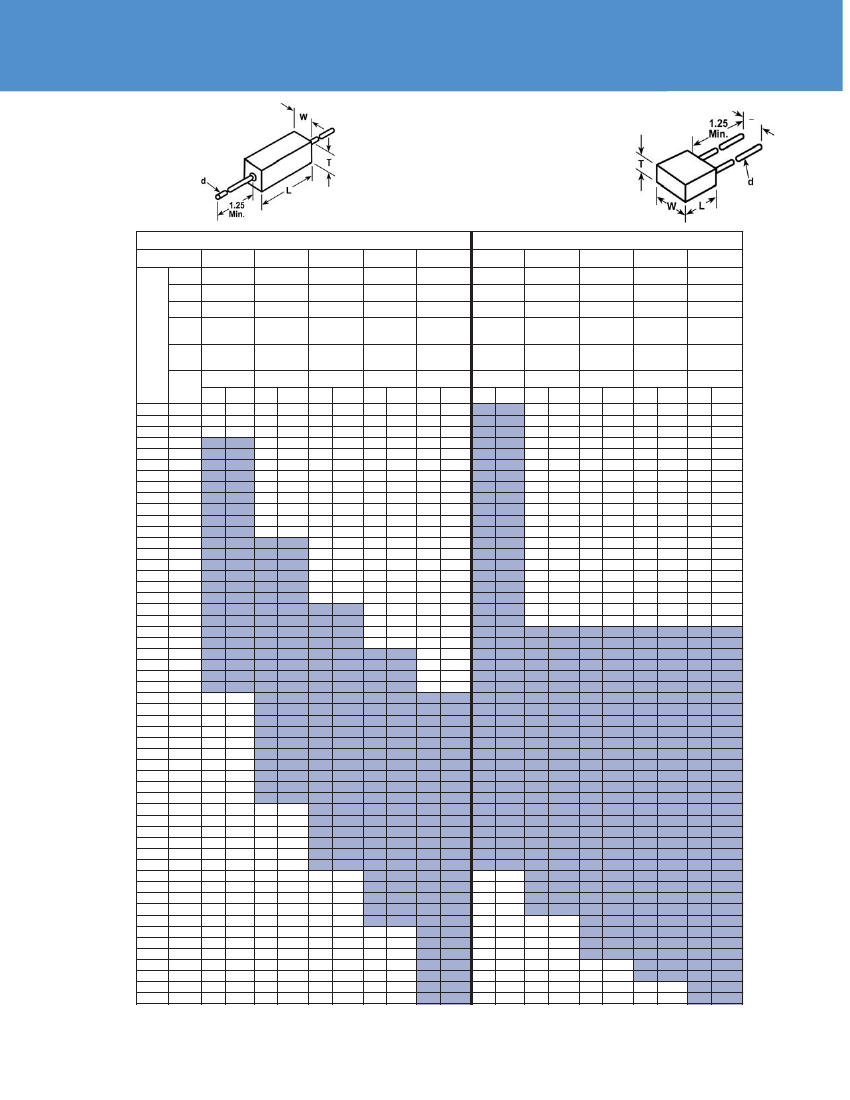

High Temperature (+260°C)
Axial and Radial Ceramic Cased Capacitors (C3)
TCR/TRR/TCA/TRA Series
High temperature ceramic cased capacitors, with a new, unique design concept, are ideally suited for continuous operation
up to +260°C. Problems associated with epoxy cased/epoxy potted capacitors, such as material deterioration, cracks in
cases and potted areas, are nonexistent, even at +260°C.
C0G
C0G (NP0) capacitors, which exhibit little change in capa-
citance with variations in temperature, are used in RF
oscillators, precision timing circuits, wave filters, and other
circuits requiring a predictable linear temperature coeffi-
cient.
X7R
Conventional X7R materials lose up to 75% of the +25°C
capacitance. Dissipation factor drops from 1.25% at +25°C to
0.2% at +260°C. At +120°C the ceramic undergoes a transfor-
mation (crystalline inversion) resulting in the material changing
from ferroelectric to paraelectric - no piezoelectric behavior.
Typical applications include oil well logging (down hole), jet engine controls and geophysical pressure probes.
INSTALLATION:
Parts should be soldered using a heat sink between the soldering point and the part using a soldering iron rated 18-30
watts. Remove all traces of flux or other contamination resulting from the soldering operation. An intermittent conducting
path between the leads, at high voltage, could cause breakdown. Soldering temperature should not exceed +300°C.
PART NUMBER AND ORDERING INFORMATION
T
PRODUCT FAMILY
T = High Temperature Axial
and Radial Capacitors
C
R
06
B 103
K
G
S
TEST LEVEL
S = KEMET standard screening
A = MIL-PRF-20, Group A Test (COG)
A = MIL-PRF-39014 (X7R)
X = Special
TEMP. CHARACTERISTIC
260°C
C = C0G (NP0)/BP
R = X7R (BX)
LEAD MATERIALS
G = Gold Plated Copper Clad Steel
W = Solder Coated Copper Clad Steel
LEAD CONFIGURATION
A = Axial
R = Radial
CAPACITANCE TOLERANCES
J = ±5%
M = ±20%
K = ±10%
Other Tolerances available upon request
STYLE
Case Size.
See data sheet for detail dimensions
VOLTAGE RATING
B = 50vdc
D = 100vdc
CAPACITANCE CODE
3 Digit code system expressed in
picofarads (pF)
103 = 10,000pF
151 = 150pF
6R8 = 6.8pF
MARKING
Manufacturer’s ID
Capacitance
Voltage
Date Code
Red dot = +260°C
EXAMPLE
KEC
106J
50V
123
•
20
© KEMET Electronics Corporation • PO Box 5928 • Greenville, SC 29606 • www.kemet.com
High Temperature (+260°C)
Axial and Radial Ceramic Cased Capacitors (C3)
TCR/TCA Series
AXIAL
All Dimensions
in Inches (mm)
RADIAL
All Dimensions
in Inches (mm)
S
C0G DIELECTRIC
AXIAL
STYLE
LMAX
WMAX
TMAX
S
RADIAL
39
50
.520 (13.21)
.265 (6.73)
.160 (4.06)
---
16
.170 (4.32)
.080 (2.03)
.080 (2.03)
---
25
.270 (6. 86)
.100 (2.54)
.100 (2.54)
---
69
.720 (18.29)
.370 (9.40)
.160 (4.06)
---
05
.200 (5.08)
.200 (5.08)
.100 (2.54)
.200 ± .015
(5.08 ±.38)
06
.300 (7.62)
.300 (7.62)
.100 (2.54)
.200 ± .015
(5.08 ±.38)
07
.300 (7.62)
.300 (7.62)
.150 (3.81)
.200 ± .015
(5.08 ±.38)
08
.500 (12.70)
.500 (12.70)
.100 (2.54)
09
.500 (12.70)
.500 (12.70)
.150 (3.81)
.400 (10.16)
.150 (3.81)
.150 (3.81)
---
.400 ± .015 .400 ± .015
(10.16 + .38) (10.16 + .38)
d
.020 ± .002 .020 ± .002 .025 ± .002 .025 ± .002 .025 ± .002
.020 ± .002 .020 ± .002 .020 ± .002 .025 ± .002 .025 ± .002
(.508 ± .051) (.508 ± .051) (.635 ± .051) (.635 ± .051) (.635 ± .051) (.508 ± .051) (.508 ± .051) (.508 ± .051) (.635 ± .051) (.635 ± .051)
WVDC
50
100
WVDC
50
100
WVDC
50
100
WVDC
50
100
WVDC
50
100
WVDC
50
100
WVDC
50
100
WVDC
50
100
WVDC
50
100
WVDC
50
100
Cap
5.6pF
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
0.01
μF
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
Cap
Code
569
689
829
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
223
273
333
393
473
563
683
823
104
124
154
© KEMET Electronics Corporation • PO Box 5928 • Greenville, SC 29606 • www.kemet.com
