Part Number

Search

10125543-S01TRLF

Description
Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator
CategoryThe connector    The connector
File Size109KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

10125543-S01TRLF Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Cream Insulator

10125543-S01TRLF Parametric

Parameter NameAttribute value
Objectid1973260539
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL8.4
body width0.118 inch
subject depth0.425 inch
body length1.177 inch
Connector typeBOARD CONNECTOR
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorCREAM
insulator materialPOLYETHYLENE
Plug contact pitch0.079 inch
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
Plating thickness15u inch
GuidelineUL
Terminal pitch2.0066 mm
Termination typeSURFACE MOUNT
Total number of contacts15

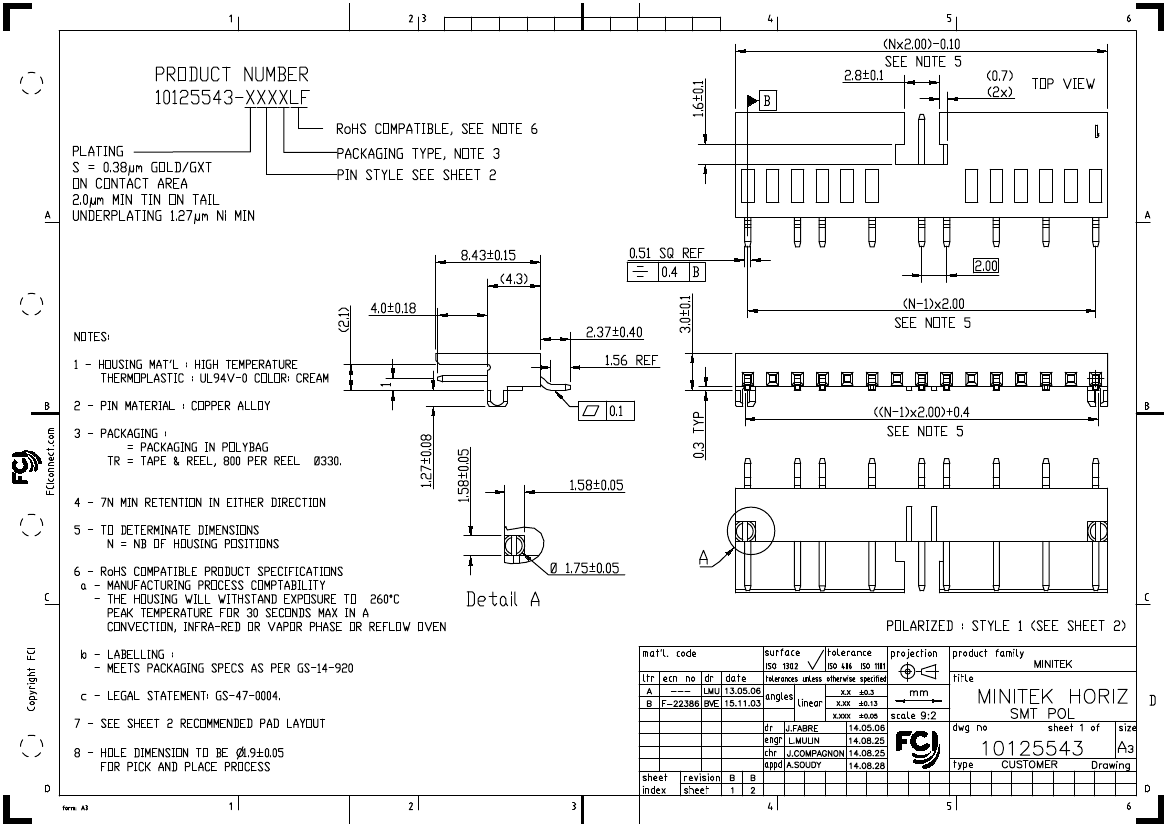

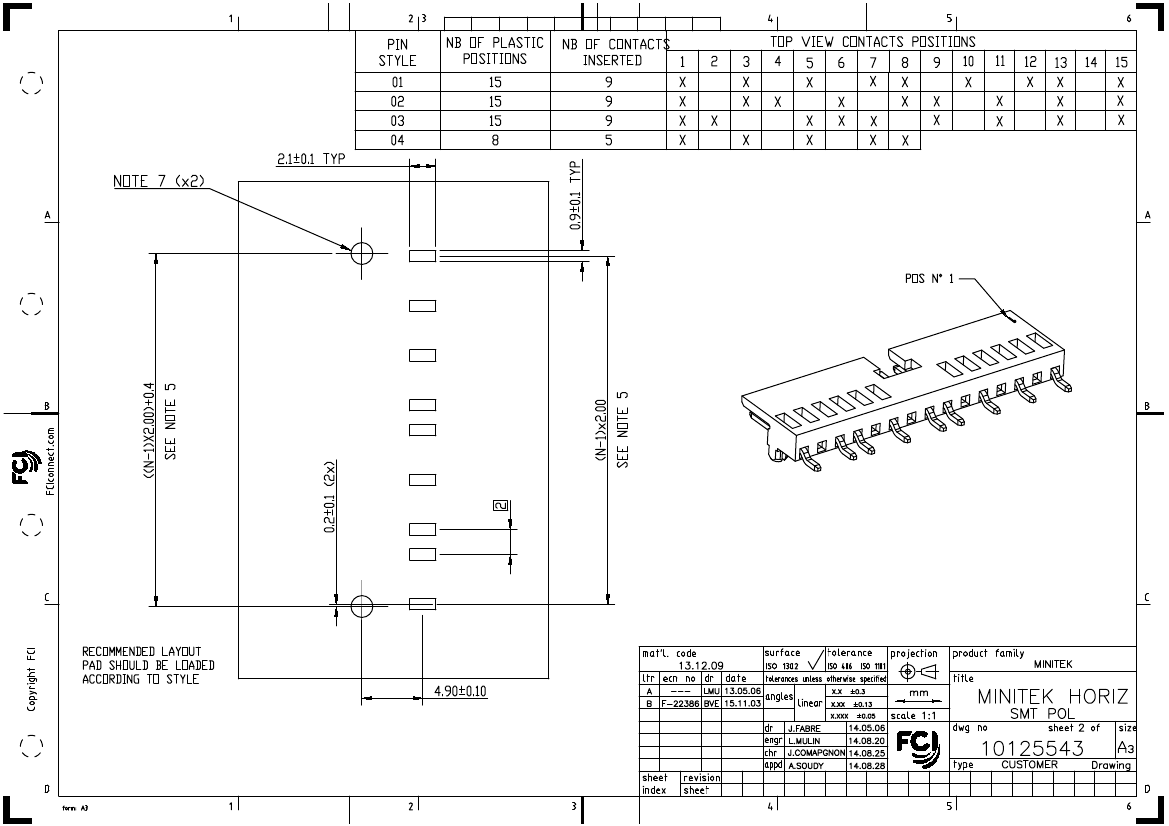

PDS: Rev :B
STATUS:Released
Printed: Nov 25, 2015
